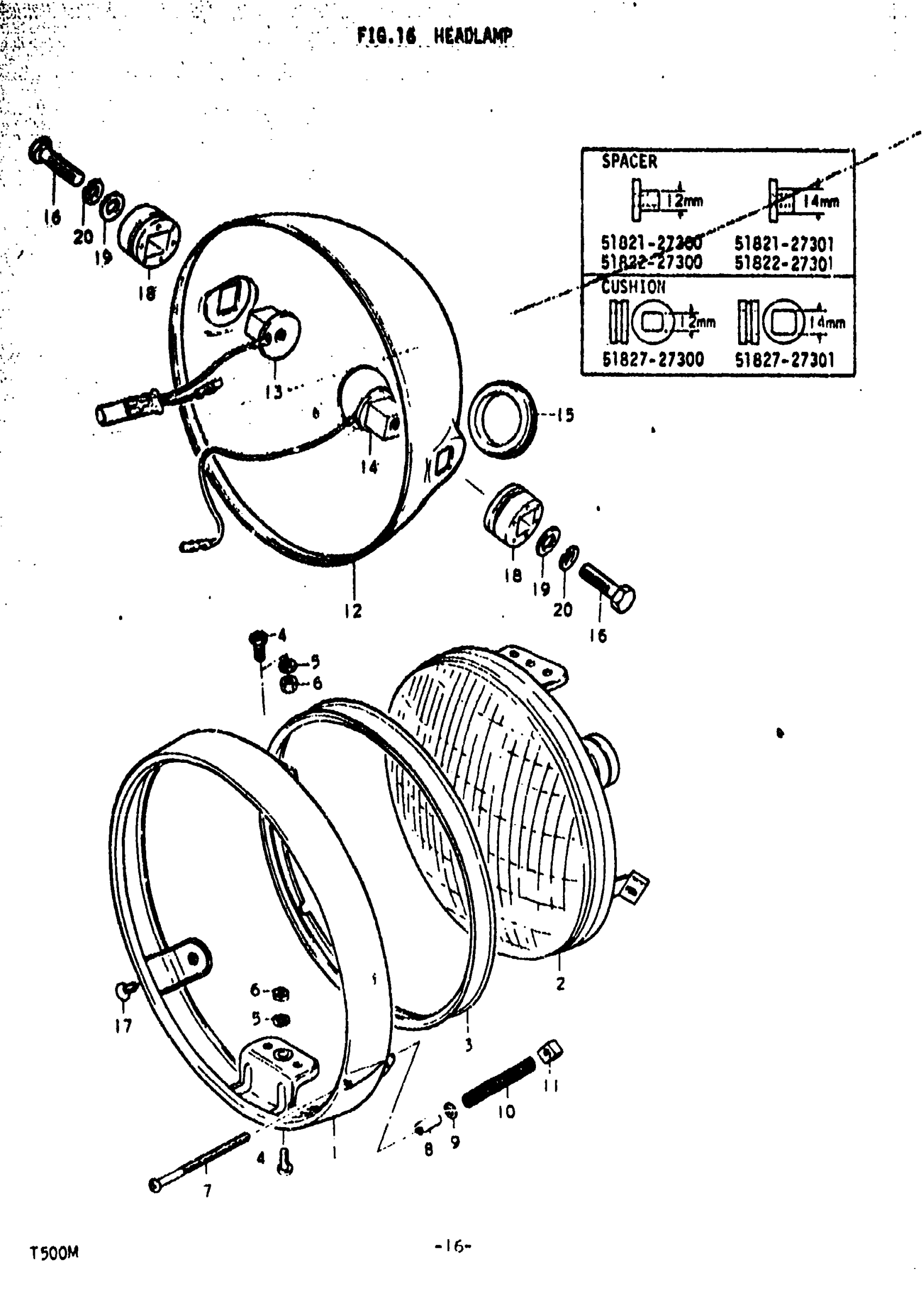

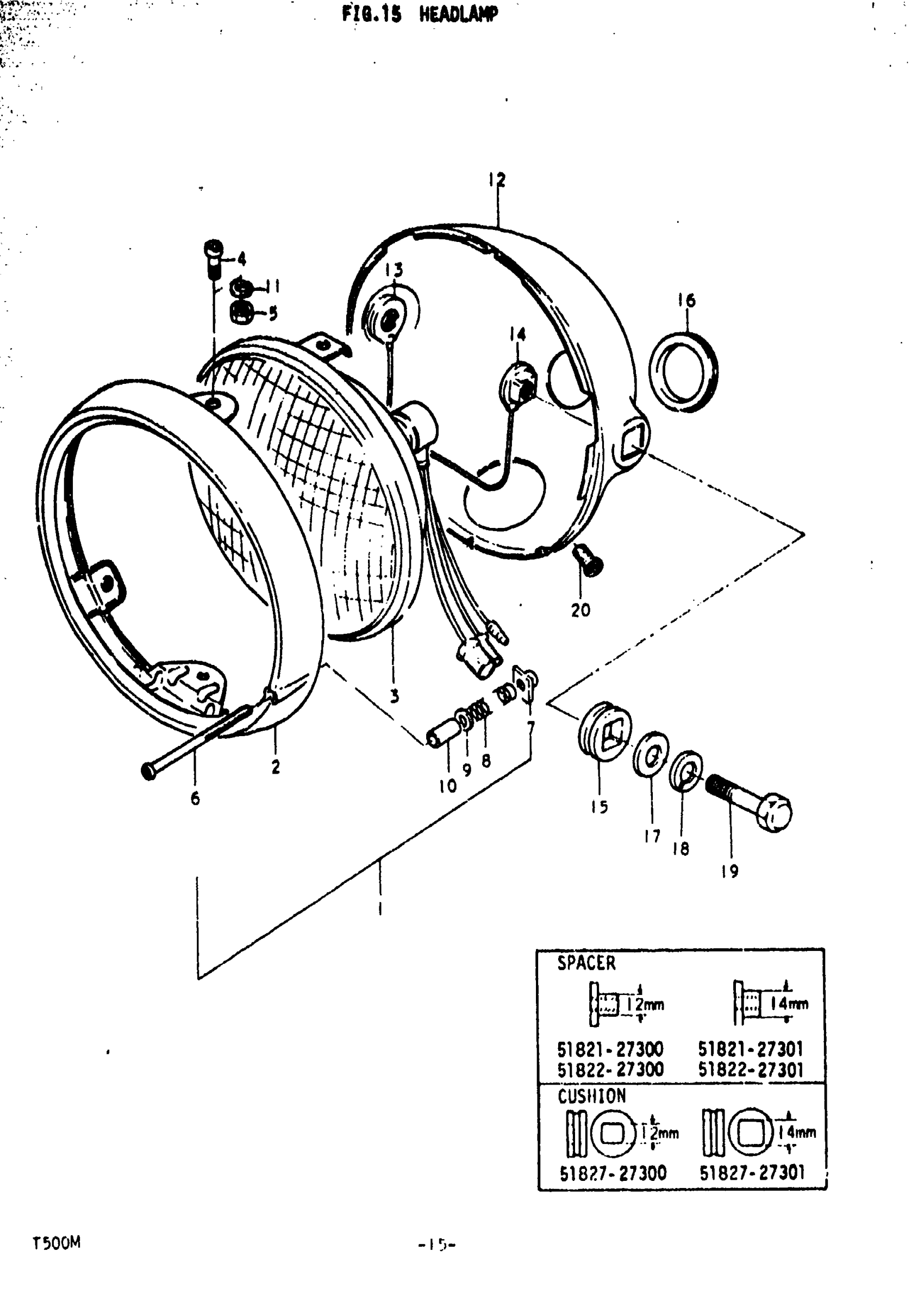

Suzuki T500J (1975) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | K; TO 35100-33612

35100-33611

Unavailable

1

HEADLAMP ASSY | L; Includes Item(s) 2 - 11

35100-33612

Unavailable

2

RIM | K,L

35111-33611

Unavailable

3

UNIT | K; TO 35121-33612 This part replaces 35121-33611.

35121-36160

Unavailable

3

UNIT | L This part replaces 35121-33612.

35121-36160

Unavailable

3

UNIT | K,L

35121-36160

Unavailable

4

SCREW | K,L

35181-15611

$3.37

5

NUT | K,L This part replaces 08311-11048.

08310-00047

$2.23

6

SCREW | K,L This part replaces 35151-33611.

35151-45900

$3.65

7

NUT | K,L

35152-15611

$3.25

8

SPRING | K,L

35154-33611

Unavailable

9

WASHER | K,L This part replaces 08322-21048.

08322-01047

$1.86

10

SPACER | K,L

35165-31610

Unavailable

11

LOCK WASHER | K,L This part replaces 08321-21058.

08321-0105A

$1.84

12

HOUSING, HEADLAMP | K,L

51810-30000

Unavailable

13

SPACER, HOUSING RH | K; TO 51821-27301

51821-27300

Unavailable

13

SPACER, HOUSING RH | L

51821-27301

Unavailable

14

SPACER, HOUSING LH | K; TO 51822-27301

51822-27300

Unavailable

14

SPACER, HOUSING LH | L

51822-27301

Unavailable

15

CUSHION | K; TO 51827-27301

51827-27300

Unavailable

15

CUSHION,HEADLAM | L This part replaces 51827-27301.

51827-27303

$3.66

16

GROMMET | K,L

51845-31030

Unavailable

17

WASHER | K,L This part replaces 08322-11088.

08322-01087

$2.13

18

.LOCK WASHER | K,L This part replaces 08321-21088.

08321-01087

$2.13

19

BOLT | K,L This part replaces 01221-08207.

01204-08207

$2.30

20

SCREW | K,L This part replaces 02231-05128.

02122-05127

$1.93
