1970 Suzuki T500-1 Transmission Diagram

← All diagrams

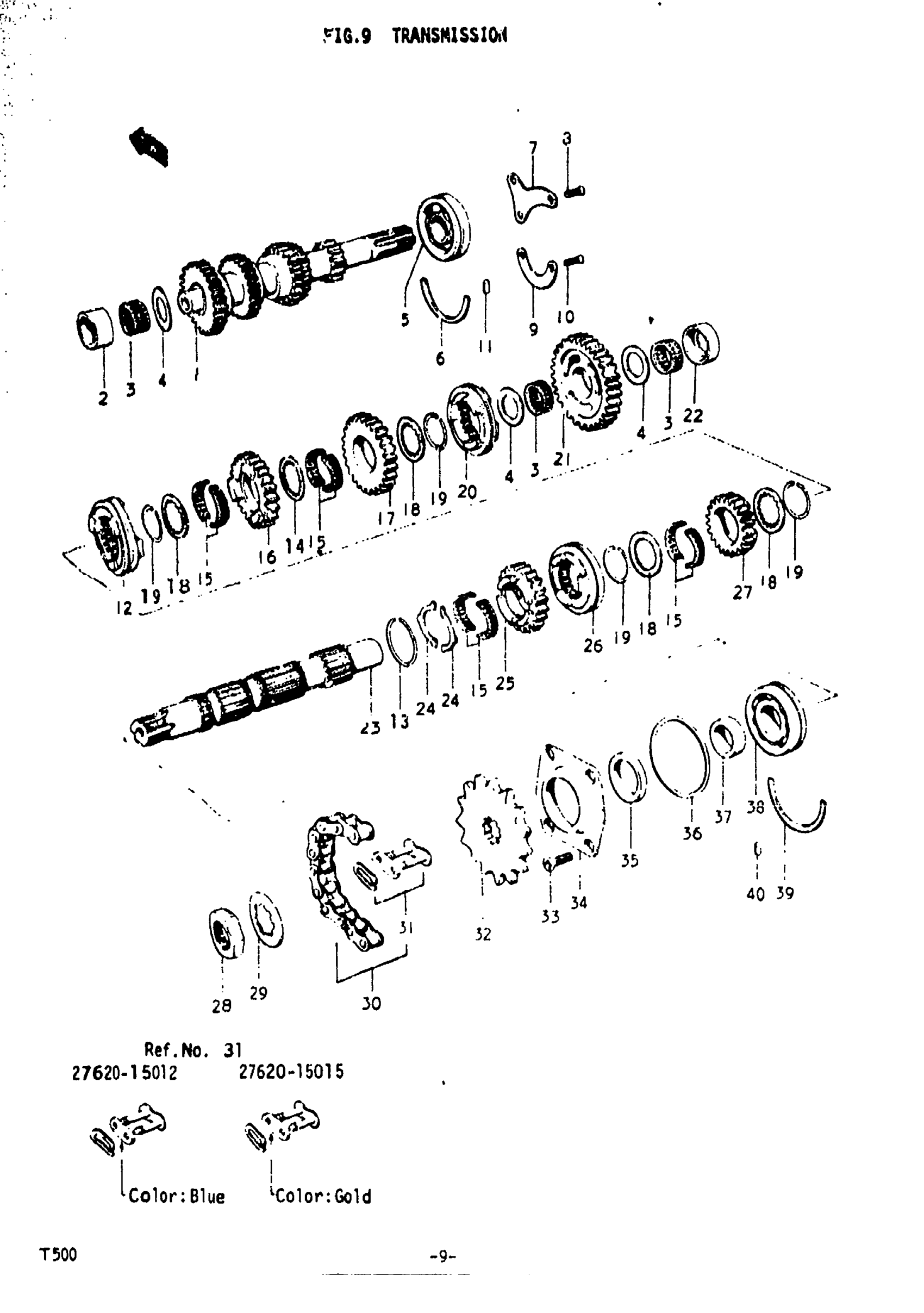

Find the part on the Transmission diagram for your 1970 Suzuki T500-1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Suzuki T500-1 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26

WHEEL, 5TH DRIVEN GEAR | 1,2,3

24415-15000

1
Out of stock

27

GEAR, 4TH DRIVEN | 1,2; TO 24341-15001 NT:21

24341-15000

—
Out of stock

27

GEAR, 4TH DRIVEN | 3; NT:21

24341-15001

1
Out of stock

28

NUT, ENGINE SPROCKET | 1,2,3

09140-22003

1
Out of stock

29

WASHER, SPROCKET | 1,2,3

09167-22005

1
Out of stock

30

CHAIN ASSY, (#530Tx112@) | 1,2,3; USEFUL SIZE (#530Tx110@); Includes Item(s) 31

27600-15911

1
Out of stock

31

JOINT, CHAIN | 1,2,3 This part replaces 27620-15012.

27620-15015

1
Out of stock

32

SPROCKET, ENGINE | 1,2,3; NT:15

27511-15000

1
Out of stock

32

SPROCKET, ENGINE | 1,2,3; NT:14 OPT

27511-15700

1
Out of stock

32

SPROCKET, ENGINE | 1,2,3; NT:13 OPT

27511-15710

1
Out of stock

33

SCREW | 1,2,3 This part replaces 02122-06128.

02122-06127

4
Out of stock

34

PLATE, DRIVESHAFT | 1,2,3

24751-15000

1
Out of stock

35

OIL SEAL, DRIVESHAFT | 1,2,3

09283-27001

1
Out of stock

36

O-RING | 1,2,3 This part replaces 09280-63001.

09280-63005

1
Out of stock

37

SPACER, ENGINE SPROCKET | 1,2,3; 22x27x10.65

09180-22001

1
Out of stock

38

BEARING, DRIVESHAFT | 1,2,3

09262-22001

1
Out of stock

39

O RING | 1,2,3

09390-59001

1
Out of stock

40

PIN | 1,2,3 This part replaces 06211-04063.

04221-04069

2
Out of stock
