1970 Suzuki T500-1 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1970 Suzuki T500-1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

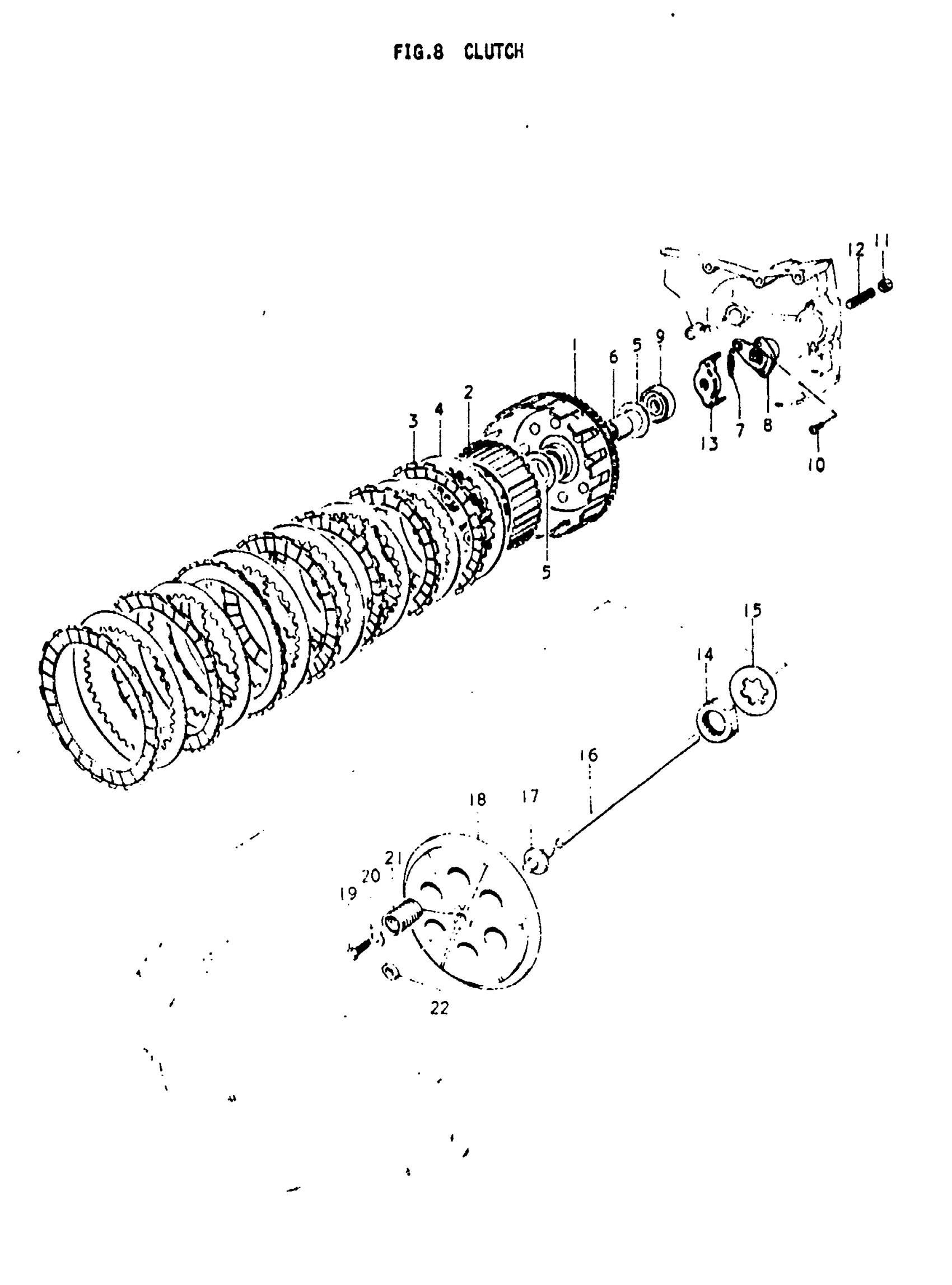

1970 Suzuki T500-1 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, DRIVEN | 1,2,3; NT:65 This part replaces 21200-15001.

21200-15002

1
Out of stock

2

HUB, CLUTCH SLEEVE | 1,2,3

21411-15010

1
Out of stock

3

PLATE, CLUTCH DRIVE | 1,2,3

21441-15000

7
Out of stock

4

PLATE, CLUTCH DRIVEN | 1,2; TO 21451-31000 This part replaces 21451-15000.

21451-31000

7
Out of stock

4

PLATE, CLUTCH DRIVEN | 3

21451-31000

7
Out of stock

5

THRUST WASHER | 1,2,3; 22x42x2

08211-22423

2
Out of stock

6

SPACER | 1,2,3; 22x28x27

09180-22002

1
Out of stock

7

SPRING | 1,2,3

09443-08001

1
Out of stock

8

SCREW ASSY, RELEASE | 1,2,3

23200-15001

1
Out of stock

9

OIL SEAL, PUSH ROD | 1,2,3

09285-08001

1
Out of stock

10

SCREW | 1,2,3 This part replaces 02112-06128.

02112-06127

2
Out of stock

11

1

$1.93

In stock

12

SCREW, ADJUSTING | 1,2,3; 8x25

09134-08006

1
Out of stock

13

COVER, RELEASE SCREW | 1,2,3

23241-15000

1
Out of stock

14

NUT | 1,2,3

09140-22003

1
Out of stock

15

WASHER | 1,2,3; 18.5x22.5x40x0.8

09167-22005

1
Out of stock

16

ROD, CLUTCH PUSH | 1; L:143

23111-15000

2
Out of stock

16

ROD, CLUTCH PUSH | 1,2,3; L:138.5, E.NO.15914~

23111-15001

2
Out of stock

17

PIECE, CLUTCH PUSH | 1; L:46

23121-15000

—
Out of stock

17

PIECE, CLUTCH PRESSURE | 1,2,3

23121-15001

1
Out of stock

18

PLATE, CLUTCH PRESSURE | 1,2,3

21462-15000

1
Out of stock

20

WASHER (6.5X20X1.6) | 1,2,3; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

6
Out of stock

21

SPRING | 1,2,3 This part replaces 09440-19003.

09440-19027

6
Out of stock

22

OIL SEAL, PUSH PIECE | 1,2,3

09284-10002

1
Out of stock
