1970 Suzuki T500-1 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1970 Suzuki T500-1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

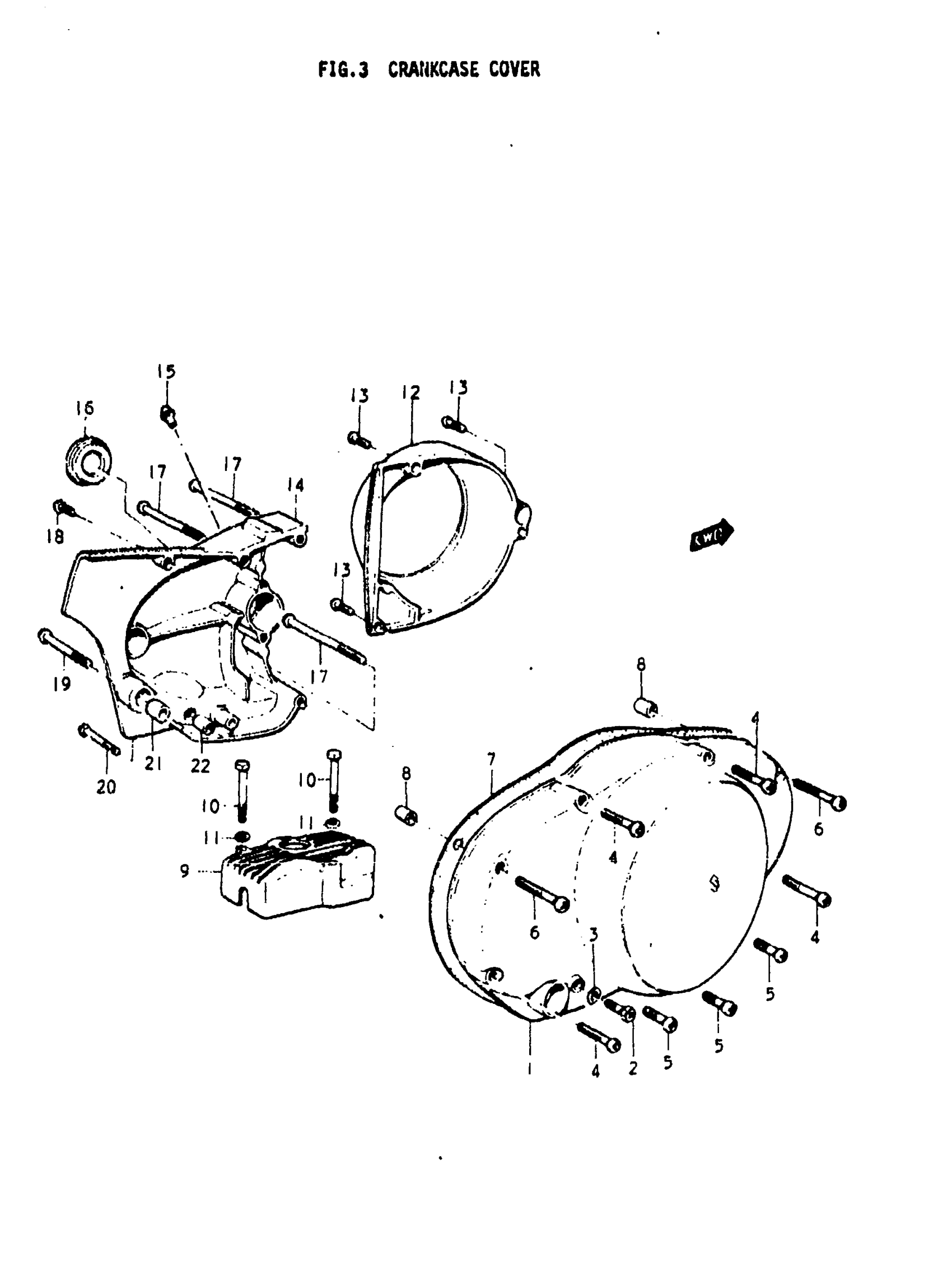

1970 Suzuki T500-1 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | 1,2,3 This part replaces 11341-15600.

11341-15601

1
Out of stock

2

SCREW (6X10) | 1,2,3 This part replaces 09128-06004.

09128-06044

1
Out of stock

3

GASKET, OIL LEVEL PLUG | 1,2,3

09168-06001

1
Out of stock

4

SCREW (6X40) | 1,2,3 This part replaces 02112-06408.

02112-06407

4
Out of stock

5

SCREW | 1,2,3 This part replaces 02112-06258.

02112-06257

3
Out of stock

6

SCREW (6X45) | 1,2,3 This part replaces 02112-06458.

02112-06457

2
Out of stock

7

GASKET,CLUTCH C | 1,2,3 This part replaces 11482-15000.

11482-15001

1
Out of stock

8

DOWEL PIN | 1,2,3

04211-09129

2
Out of stock

9

COVER, OIL PUMP | 1,2,3 This part replaces 11411-15000.

11411-15001

1
Out of stock

10

BOLT | 1,2,3 This part replaces 01112-06358.

64455-07L00

2
Out of stock

11

WASHER | 1,2,3 This part replaces 08322-21068.

08322-01067

2
Out of stock

12

COVER, CRANKCASE LH | 1,2,3

11351-15600

—
Out of stock

13

SCREW | 1,2,3 This part replaces 02112-06208.

02112-06207

3
Out of stock

14

COVER, ENGINE SPROCKET | 1,2,3

11361-15601

1
Out of stock

15

NIPPLE, GREASE | 1,2,3

08351-11009

1
Out of stock

16

CAP, RELEASE SCREW | 1,2,3

09250-30003

1
Out of stock

17

SCREW | 1,2,3 This part replaces 02112-06758.

02112-06757

3
Out of stock

18

SCREW | 1,2,3

02112-06307

1
Out of stock

19

SCREW (6X45) | 1,2,3 This part replaces 02112-06458.

02112-06457

1
Out of stock

20

SCREW | 1,2,3 This part replaces 02112-06358.

02112-06357

1
Out of stock

21

DOWEL PIN | 1,2,3

04211-09129

1
Out of stock

22

BUFFER, TOUCH DEFENSE | 1,2,3

09320-18001

1
Out of stock
