1970 Suzuki T500-1 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1970 Suzuki T500-1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

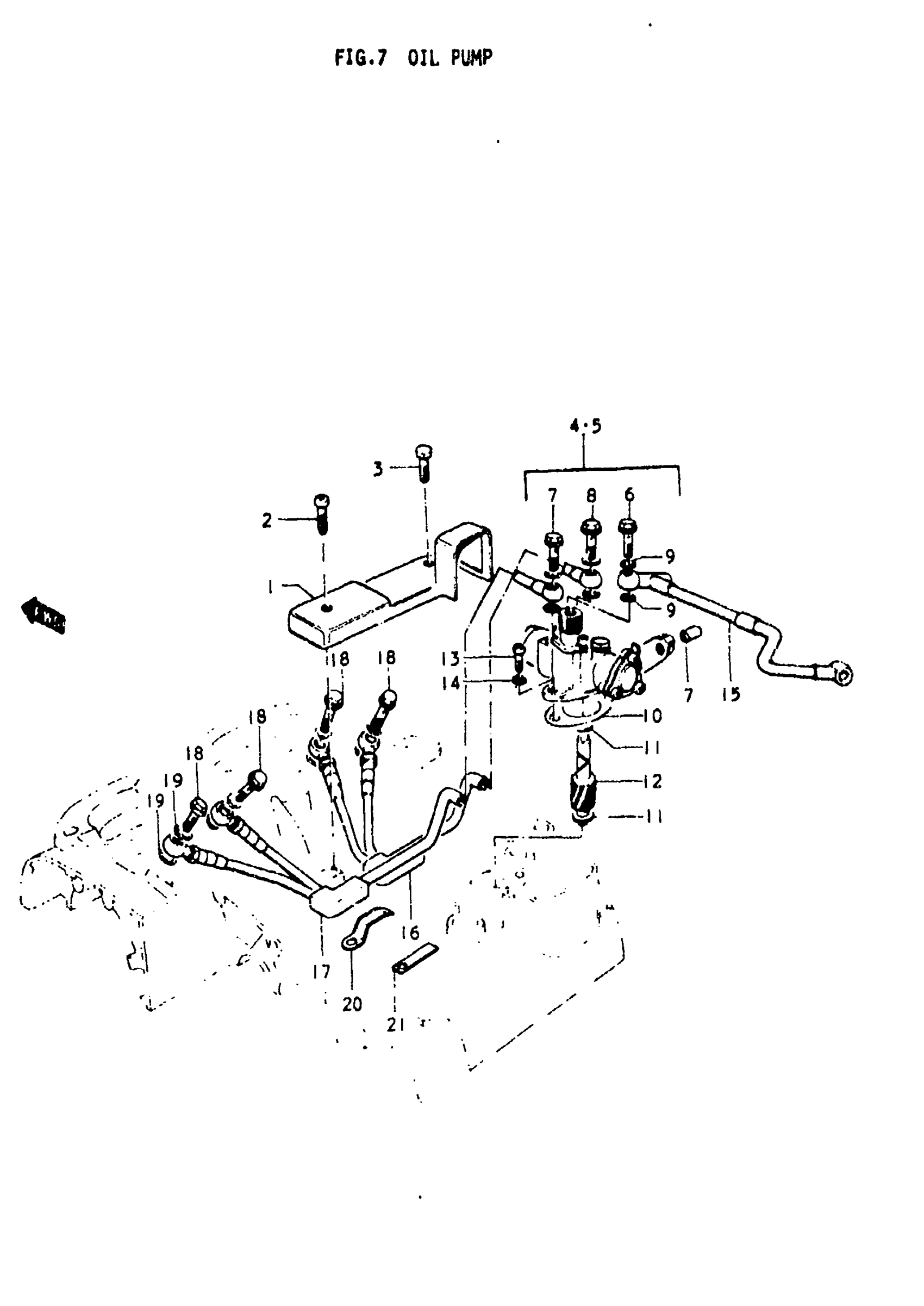

1970 Suzuki T500-1 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP | 1,2,3 This part replaces 11441-15000.

11441-15001

1
Out of stock

2

SCREW | 1,2,3 This part replaces 02112-06208.

02112-06207

1
Out of stock

4

OIL PUMP ASSY | 1; TO 16100-15010

16001-15803

—
Out of stock

4

OIL PUMP ASSY | 1

16100-15010

—
Out of stock

5

NO DESCRIPTION AVAILABLE | 2,3; TO 16100-15110 This part replaces 16001-15815.

16100-15111

1
Out of stock

5

NO DESCRIPTION AVAILABLE | 2,3; Includes Item(s) 6 - 9 This part replaces 16100-15110.

16100-15111

1
Out of stock

6

TERMINAL, CABLE | 1,2,3

13683-51010

1
Out of stock

7

UNION BOLT | 1,2,3; 3PCS:~F.NO.29795

09360-06003

1
Out of stock

8

UNION BOLT | 1,2,3

09360-06005

2
Out of stock

9

GASKET | 1,2,3 This part replaces 09168-06002.

09168-06004

6
Out of stock

10

GASKET, OIL PUMP | 1,2,3

16731-11000

1
Out of stock

11

THRUST WASHER | 1,2,3

09160-08003

2
Out of stock

12

GEAR, TACHOMETER DRIVEN | 1,2,3; NT:10

26431-15000

1
Out of stock

13

SCREW | 1,2,3 This part replaces 02112-06168.

02112-06167

2
Out of stock

14

LOCK WASHER | 1,2,3 This part replaces 08321-21058.

08321-0105A

2
Out of stock

15

HOSE, OIL NO.1 | 1

16810-15031

—
Out of stock

15

HOSE, OIL NO.1 | 2; TO 16810-15131 This part replaces 16810-15130.

16810-15131

1
Out of stock

15

HOSE, OIL NO.1 | 3

16810-15131

1
Out of stock

16

HOSE, OIL NO.2 | 1,2,3

16820-15033

1
Out of stock

17

HOSE, OIL NO.3 | 1,2,3

16840-15033

1
Out of stock

18

UNION BOLT, OIL PUMP | 1,2,3

09360-06003

4
Out of stock

19

GASKET | 1,2,3 This part replaces 09168-06002.

09168-06004

8
Out of stock

20

CLAMP, WIRING HARNESS | 1,2

09403-08304

—
Out of stock

20

CLAMP | 3 This part replaces 09403-07301.

09403-07309

1
Out of stock

21

CLAMP, WIRING HARNESS | 1,2,3

09403-00008

—
Out of stock
