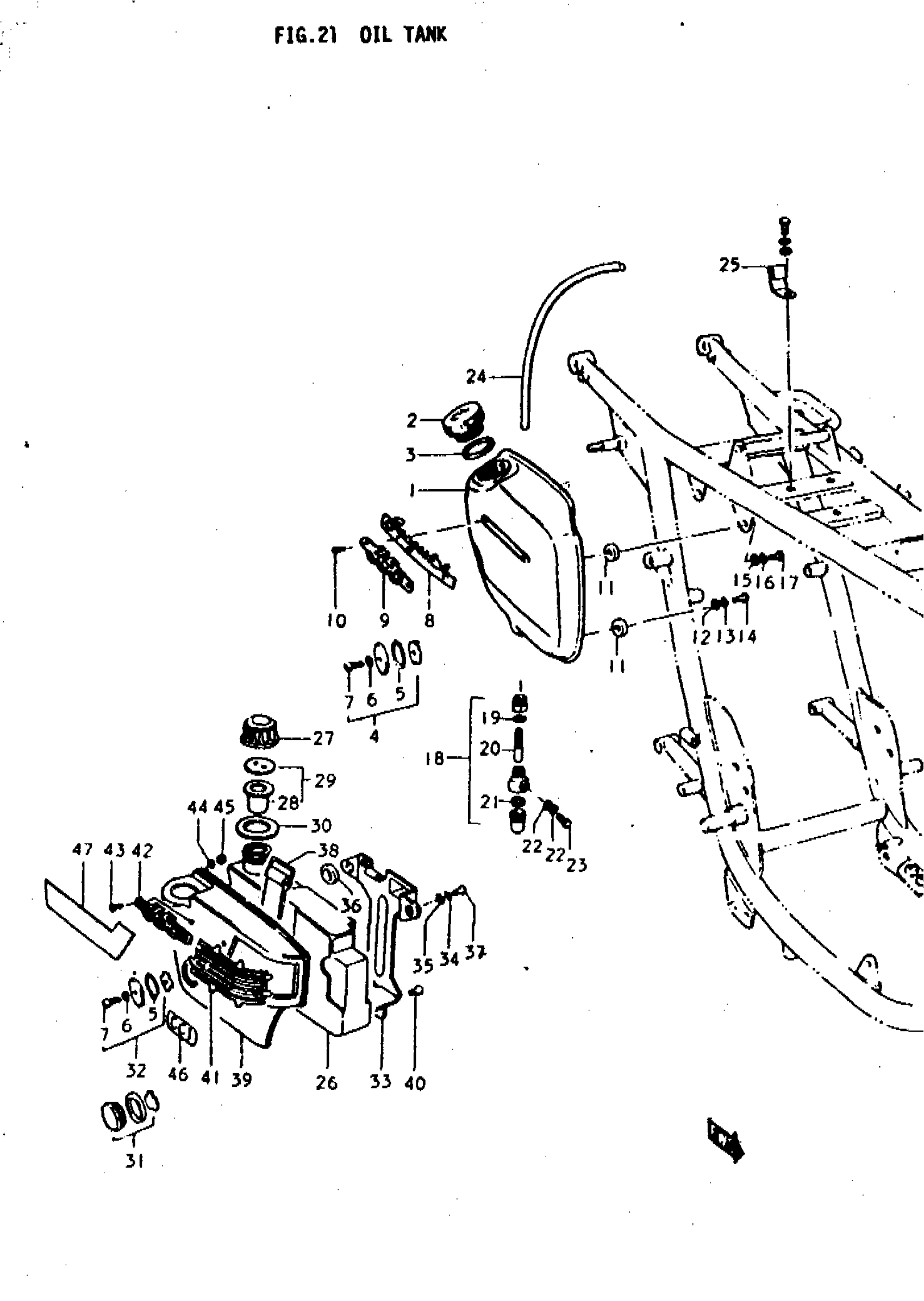

Find the part on the OIL Tank diagram for your 1972 Suzuki T3501, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki T3501 OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL | 1; PRIMARY-PAINTED TO 44610-18400-799

44610-18400

—
Out of stock

1

TANK, OIL | 1

44610-18400-161

—
Out of stock

1

TANK, OIL | 2; TO 44610-18400-019

44610-18400-159

—
Out of stock

1

TANK, OIL | 2

44610-18400-185

—
Out of stock

2

CAP, OIL TANK | 1,2

44651-11040

1
Out of stock

3

GASKET,OIL TANK | 1,2; 35x46x3.5 This part replaces 44661-11000.

44661-11001

1
Out of stock

4

LENS SET, OIL INSPECTION | 1,2; Includes Item(s) 5 - 7

44640-11843

1
Out of stock

5

O RING | 1,2,R

09280-23001

1
Out of stock

6

GASKET | 1,2,R; 5x9.5x1

09168-05001

1
Out of stock

7

SCREW | 1,2,R This part replaces 02111-05168.

02112-05167

1
Out of stock

8

EMBLEM, OIL TANK | 1; SUZUKI

68131-11001

1
Out of stock

9

EMBLEM, OIL TANK | 2; 350

68141-18500

1
Out of stock

10

SCREW | 1,2 This part replaces 02111-03048.

02112-03047

2
Out of stock

11

WASHER, OIL TANK | 1,2; 8x22x3

09161-08002

3
Out of stock

12

WASHER | 1,2; 6.5x18x1.6 This part replaces 09160-06006.

09160-06084

1
Out of stock

13

1

$2.28

In stock

14

BOLT | 1,2

01111-06168

—
Out of stock

15

WASHER | 1,2 This part replaces 08322-21068.

08322-01067

2
Out of stock

16

2

$2.28

In stock

17

BOLT | 1,2; 6x14 This part replaces 09100-06026.

09100-06067

2
Out of stock

18

OUTLET ASSY, OIL TANK | 1,2; Includes Item(s) 19 - 23

44700-11827

1
Out of stock

19

GASKET, OUTLET JOINT | 1,2; 8.2x13.5x2.5

44733-11030

1
Out of stock

20

FILTER | 1,2

44720-11030

1
Out of stock

21

GASKET, FILTER CUP | 1,2; 13.5x19x1.5 TO 44346-05110

44346-02030

—
Out of stock

22

GASKET | 1,2; 6.2x12x1.5 This part replaces 09168-06002.

09168-06004

2
Out of stock

23

UNION BOLT | 1,2

09360-06003

1
Out of stock

24

HOSE, OIL BREATHER | 1,2; L:450 TO 09344-05014

09344-05010

—
Out of stock

25

CLAMP, BREATHER HOSE | 1,2; FROM 09403-00004

09403-08301

—
Out of stock

26

TANK, OIL | R,J; TO 44611-18602

44611-18601

—
Out of stock

27

CAP, OIL TANK | R This part replaces 44651-18600.

44651-18601

1
Out of stock

27

CAP, OIL TANK | R,J

44651-18601

1
Out of stock

28

GASKET, OIL TANK | R

44662-18600

—
Out of stock

29

GASKET SET, OIL TANK | R,J

44660-18818

1
Out of stock

30

RUBBER,FUEL TAN | R,J This part replaces 44261-27000.

44261-27001

1
Out of stock

31

OIL LEVEL INSPE | R,J; TO 44600-31830 This part replaces 44640-31807.

44600-31832

1
Out of stock

32

LENS SET, OIL INSPECTION | R

44640-11844

1
Out of stock

33

HOLDER, OIL TANK | R,J

44820-18600

—
Out of stock

34

2

$2.28

In stock

35

WASHER | R,J This part replaces 08322-21068.

08322-01067

2
Out of stock

36

WASHER | R,J This part replaces 09160-06006.

09160-06084

1
Out of stock

37

FRM CVR,SCREW(6 | R,J This part replaces 09128-06011.

09128-06092

2
Out of stock

38

BAND, OIL TANK | R,J

09462-00007

1
Out of stock

39

NO DESCRIPTION AVAILABLE | R; TO 47111-18600-019 This part replaces 47111-18600-164.

47111-18600-019

1
Out of stock

39

NO DESCRIPTION AVAILABLE | R This part replaces 47111-18600-176.

47111-18600-019

1
Out of stock

39

COVER, FRAME RH | J

47111-18600-524

1
Out of stock

39

COVER, FRAME RH | J; Includes Item(s) 40

47111-18600-541

1
Out of stock

40

SCREW | R,J This part replaces 03241-05168.

03141-0516A

3
Out of stock

41

ACCESSORY, FRAME COVER | R,J

47161-18600

1
Out of stock

42

EMBLEM, FRAME COVER | R,J; 350

68141-18500

1
Out of stock

43

SCREW | R,J

02111-03088

—
Out of stock

44

LOCK WASHER | R,J This part replaces 08321-21058.

08321-0105A

2
Out of stock

45

NUT | R,J This part replaces 08311-11038.

08310-0003B

2
Out of stock

46

EMBLEM, FRAME COVER | R,J; OCI

68171-26000

1
Out of stock

47

TAPE, STRIPING | J

68136-18600-064

—
Out of stock
