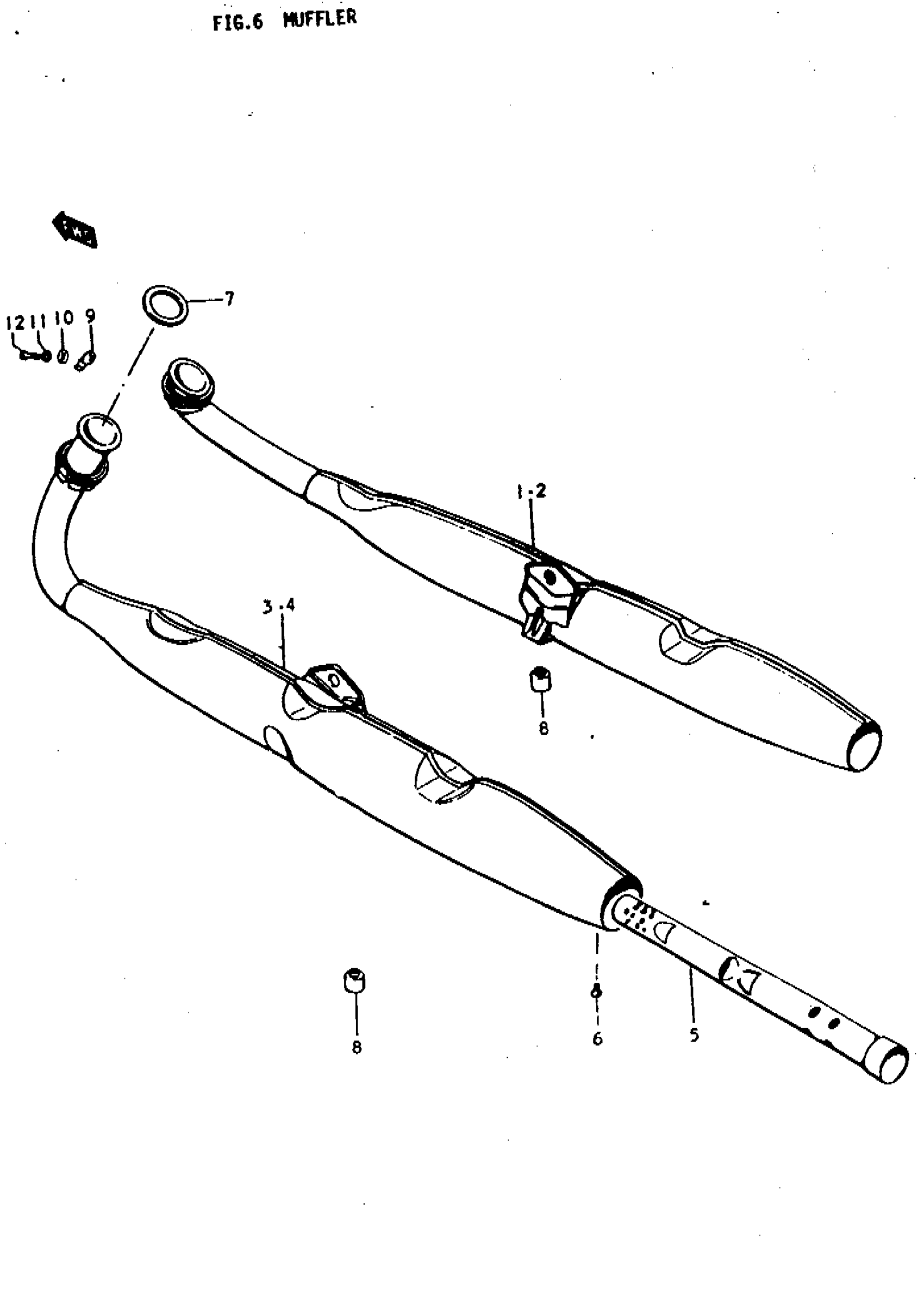

Suzuki T3501 (1972) MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSY, RH | 1,2

14301-18000

Unavailable

2

MUFFLER ASSY, RH | R,J This part replaces 14301-18600.

14301-18000

Unavailable

3

MUFFLER ASSY, LH | 1,2

14302-18000

Unavailable

4

MUFFLER ASSY, LH | R,J; Includes Item(s) 5 - 6 This part replaces 14302-18600.

14302-18000

Unavailable

5

PIPE, BAFFLE

14510-18000

Unavailable

6

SCREW This part replaces 02111-05068.

09125-05122

$2.07

7

GASKET,EXHAUST | 38x48x5 This part replaces 14181-18010.

14181-36A00

$10.35

8

CUSHION, CENTER STAND

09321-10001

$2.69

9

HOLDER, EXHAUST PIPE

14183-11000

Unavailable

10

WASHER This part replaces 08322-11108.

08322-01107

$1.88

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

12

SCREW This part replaces 02111-06128.

02112-06127

$1.83
