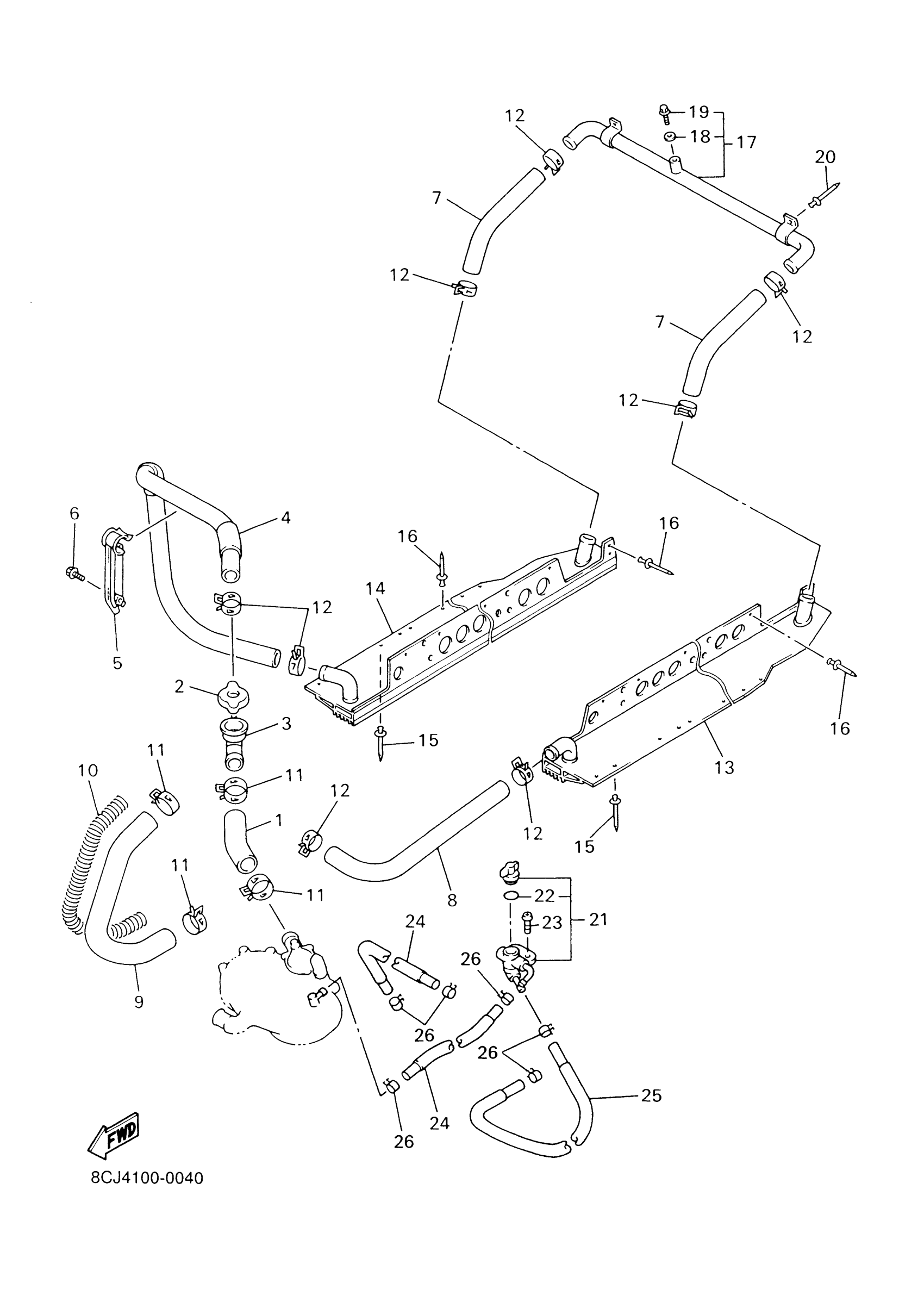

Find the part on the Radiator. Hose diagram for your 2001 Yamaha SX500 8CT3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha SX500 8CT3 Radiator. Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 2

8CR-12482-00-00

1
Out of stock

2

CAP, RADIATOR

4FL-12462-00-00

1
Out of stock

3

SUPT, FILLER NECK

8CR-12591-00-00

1
Out of stock

4

PIPE 3

8CR-12483-00-00

1
Out of stock

5

CLAMP 1

8CR-12491-00-00

1
Out of stock

6

BOLT, FLANGE

95817-06014-00

—
Out of stock

7

PIPE 4

8CR-12484-00-00

—
Out of stock

8

PIPE 5

8CR-12485-00-00

1
Out of stock

9

PIPE 6

8CR-12476-00-00

1
Out of stock

10

SPRING, COMPRESSION

90501-120K6-00

1
Out of stock

11

CLIP (8M6)

90467-28046-00

1
Out of stock

12

CLIP (10V)

90467-23067-00

1
Out of stock

13

HEAT EXCHANGER

8CR-1240E-03-00

1
Out of stock

14

HEAT EXCHANGER

8CR-1240F-03-00

1
Out of stock

15

RIVET, BLIND(8CR)

90267-47186-00

1
Out of stock

16

RIVET, BLIND

90267-47195-00

—
Out of stock

17

HEAT EXCHANGER ASY

8CR-1241A-01-00

1
Out of stock

18

WASHER, SEAL (7G5)

90210-06006-00

—
Out of stock

19

BOLT, FLANGE

95817-06016-00

—
Out of stock

20

RIVET, BLIND

90267-47195-00

—
Out of stock

21

COCK ASSY

8CR-1249A-01-00

1
Out of stock

22

. SEAL, COCK

8CH-24534-00-00

1
Out of stock

23

SCREW, BINDING

98907-06020-00

—
Out of stock

24

HOSE 1

8CR-1243A-00-00

1
Out of stock

25

HOSE 2

8CR-1243E-00-00

1
Out of stock

26

CLIP

90467-11028-00

1
Out of stock
