2001 Yamaha SX500 8CT3 Engine Bracket Diagram

← All diagrams

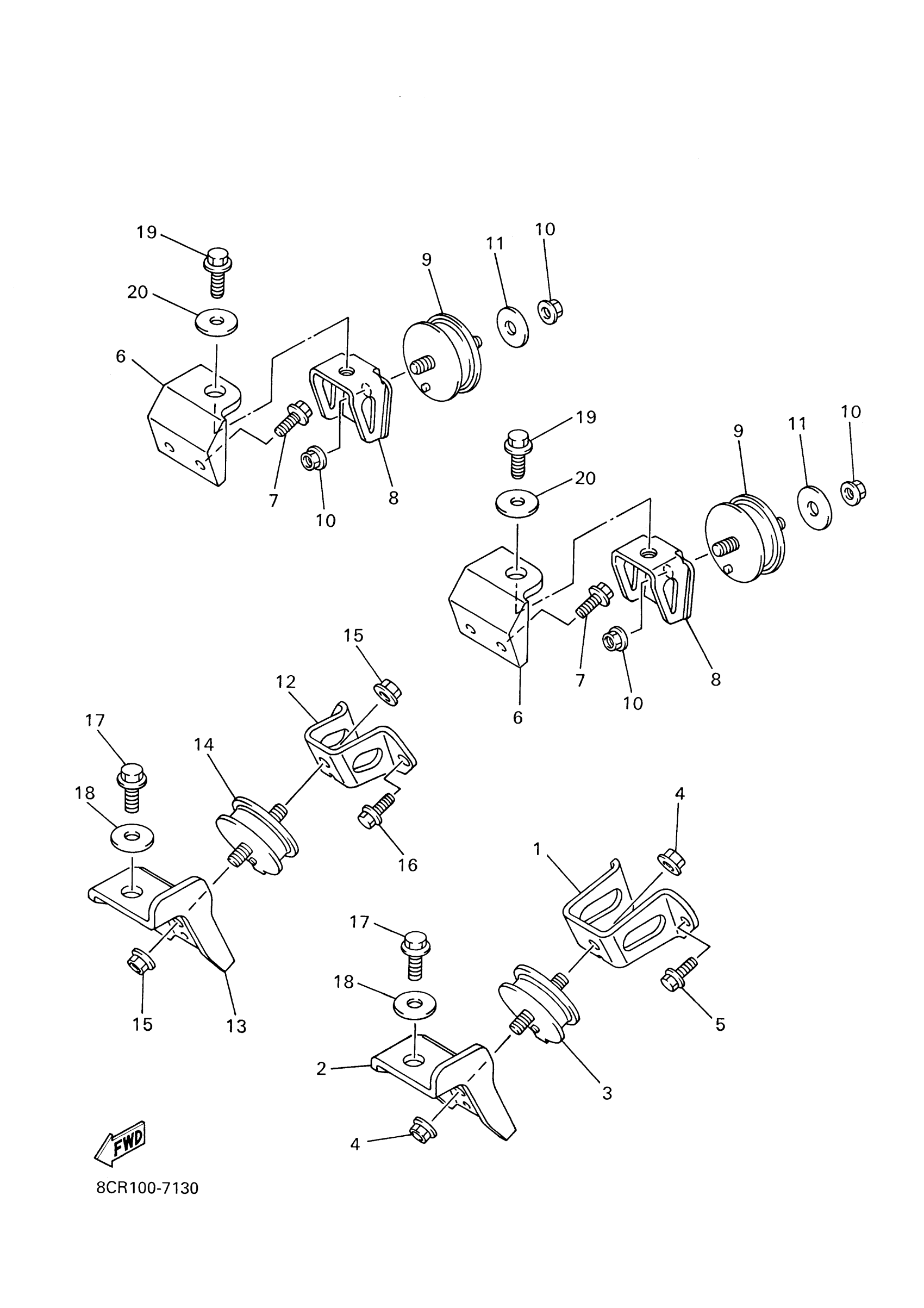

Find the part on the Engine Bracket diagram for your 2001 Yamaha SX500 8CT3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha SX500 8CT3 Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT UPPER 1

8CR-21415-00-00

—

$17.31

In stock

2

BRACKET, FRONT LOWER 1

8CR-21417-00-00

—

$29.98

In stock

3

DAMPER 2

8CR-21486-00-00

1
Out of stock

4

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

5

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

6

BRACKET, REAR UPPER 1

8CR-21425-00-00

1
Out of stock

7

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

8

BRACKET, REAR LOWER 1

8CR-21427-01-00

1
Out of stock

9

DAMPER 2

8CR-21486-00-00

1
Out of stock

10

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

11

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

12

BRACKET, FRONT UPPER 2

8CR-21416-00-00

1
Out of stock

13

BRACKET, FRONT LOWER 1

8CR-21417-00-00

—

$29.98

In stock

14

DAMPER 2

8CR-21486-00-00

1
Out of stock

15

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

16

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

17

BOLT, FLANGE(JN5)

95817-12030-00

—

$7.02

In stock

18

WASHER, PLATE

90201-120U9-00

1
Out of stock

19

BOLT, FLANGE(3GD)

95817-10025-00

—

$6.17

In stock

20

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock
