2001 Yamaha SX500 8CT3 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2001 Yamaha SX500 8CT3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

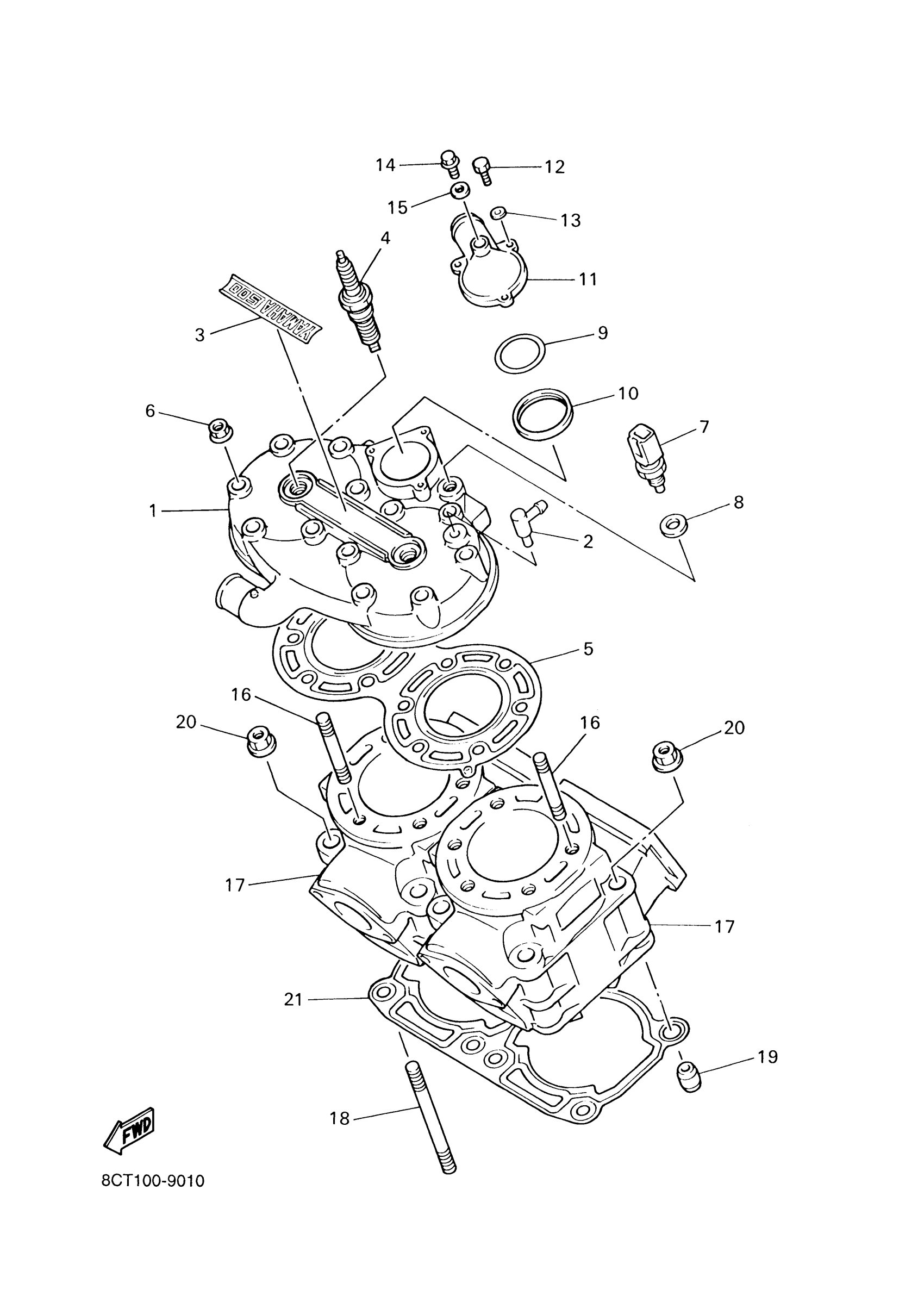

2001 Yamaha SX500 8CT3 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

8CJ-11111-11-00

1
Out of stock

2

JOINT 1

8CH-12469-00-00

—
Out of stock

3

EMBLEM

8CJ-1111K-00-00

1
Out of stock

4

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

1
Out of stock

5

GASKET, CYLINDER HEAD 1

8CJ-11181-00-00

1
Out of stock

6

NUT, FLANGE(JN5)

95707-08500-00

1
Out of stock

7

THERMOSENSOR ASSY

8CC-85790-01-00

1
Out of stock

8

WASHER, PLATE

90201-12790-00

1
Out of stock

9

WASHER, PLATE (8U9)

90201-345G2-00

1
Out of stock

10

SEAL, THERMOSTAT

8A7-12412-01-00

1
Out of stock

11

COVER, THERMOSTAT

82M-12413-00-00

1
Out of stock

12

BOLT, HEXAGON

97017-06020-00

1
Out of stock

13

WASHER(6TA)

92907-06600-00

1
Out of stock

14

BOLT, FLANGE

95817-06012-00

1
Out of stock

15

GASKET (4V2)

90430-06166-00

1
Out of stock

16

BOLT, STUD (5X4)

90116-08392-00

—
Out of stock

17

CYLINDER 1

8CJ-11311-00-00

1
Out of stock

18

BOLT, STUD(8AB)

90116-10574-00

—
Out of stock

19

PIN, DOWEL

99530-14016-00

—
Out of stock

20

NUT, FLANGE(8AB)

95707-10500-00

—
Out of stock

21

GASKET, CYLINDER

8CR-11351-00-00

—
Out of stock
