2001 Yamaha SX500 8CT3 Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2001 Yamaha SX500 8CT3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

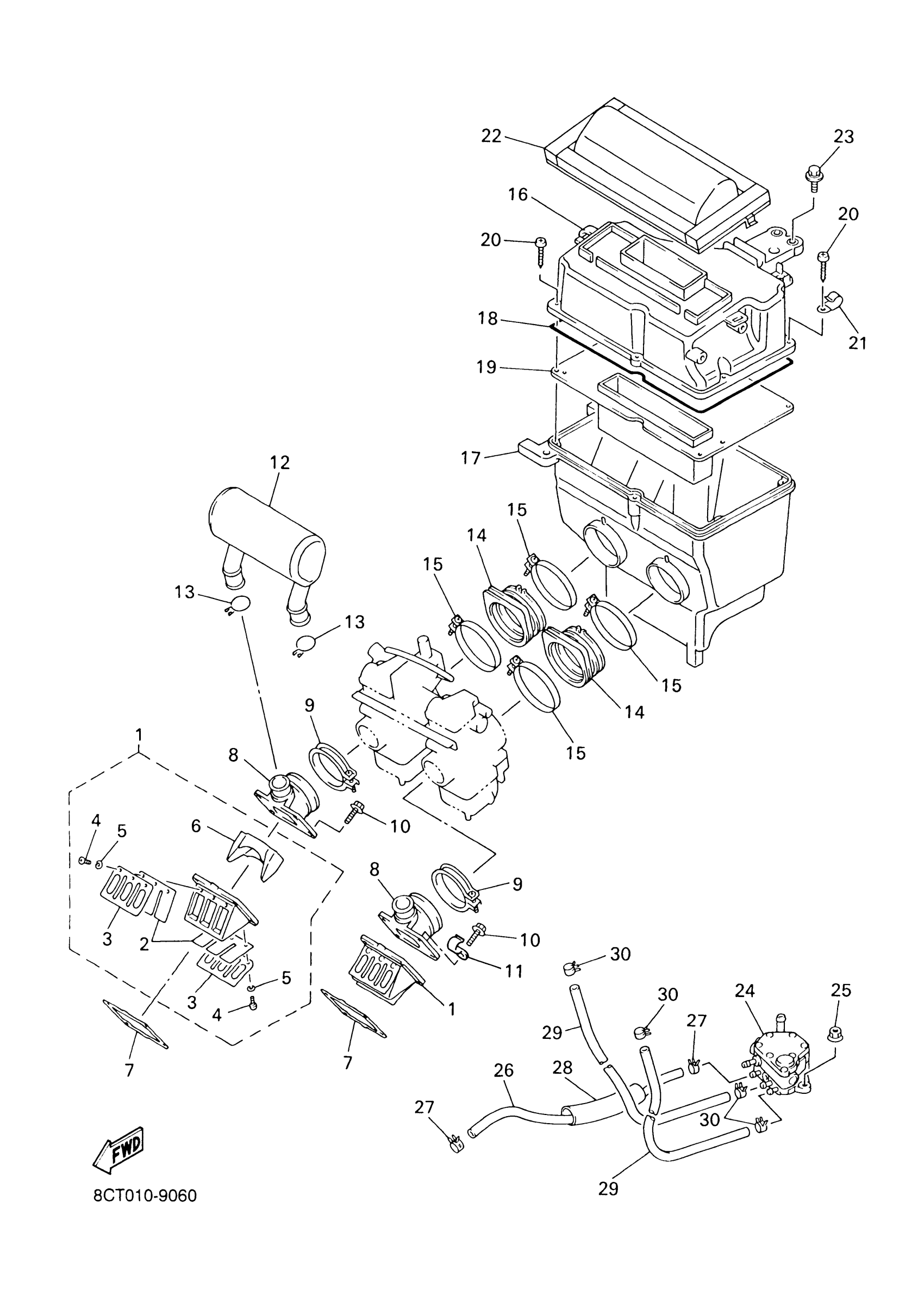

2001 Yamaha SX500 8CT3 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

4DA-13610-01-00

1
Out of stock

2

REED, VALVE

3SP-13613-01-00

1

$26.43

In stock

3

STOPPER, REED VALVE

8DJ-13616-00-00

1

$15.54

In stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1

$2.74

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

. SPACER, REED VALVE

4DA-13625-00-00

1
Out of stock

7

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

8

MANIFOLD, INTAKE

8CR-13555-00-00

1
Out of stock

9

BAND

86M-13575-00-00

1

$16.45

In stock

10

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

11

CLAMP

90462-08246-00

1
Out of stock

12

CHAMBER, AIR

8CR-13581-00-00

—

$29.94

In stock

13

CLIP(8V0)

90467-24096-00

1
Out of stock

14

JOINT, AIR CLEANER 1

8CR-14453-00-00

1
Out of stock

15

CLAMP, HOSE (29L)

90460-68230-00

1
Out of stock

16

SILENCER, INTAKE 1

8CR-14431-01-00

1
Out of stock

17

SILENCER, INTAKE 2

8CR-14441-01-00

1
Out of stock

18

SEAL

51Y-14462-00-00

—

$11.61

In stock

19

PLATE

8CR-14477-00-00

1
Out of stock

20

SCREW, TAPPING(82M)

90167-05043-00

—

$5.62

In stock

21

CLAMP

90465-08028-00

1

$4.62

In stock

22

ELEMENT ASSY, AIR CLEANER

8CR-14450-00-00

—

$29.29

In stock

23

BOLT, WITH WASHER(3FC)

90119-06163-00

—
Out of stock

24

FUEL PUMP ASSY

8CR-24410-01-00

—

$190.38

In stock

25

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

26

HOSE (L400)

90445-116K9-00

—
Out of stock

27

CLIP (7K7)

90467-11044-00

—
Out of stock

28

HOSE (L150)

90445-226J7-00

1
Out of stock

29

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

30

CLIP (8A1)

90467-09026-00

—

$2.72

In stock
