CARBURETOR

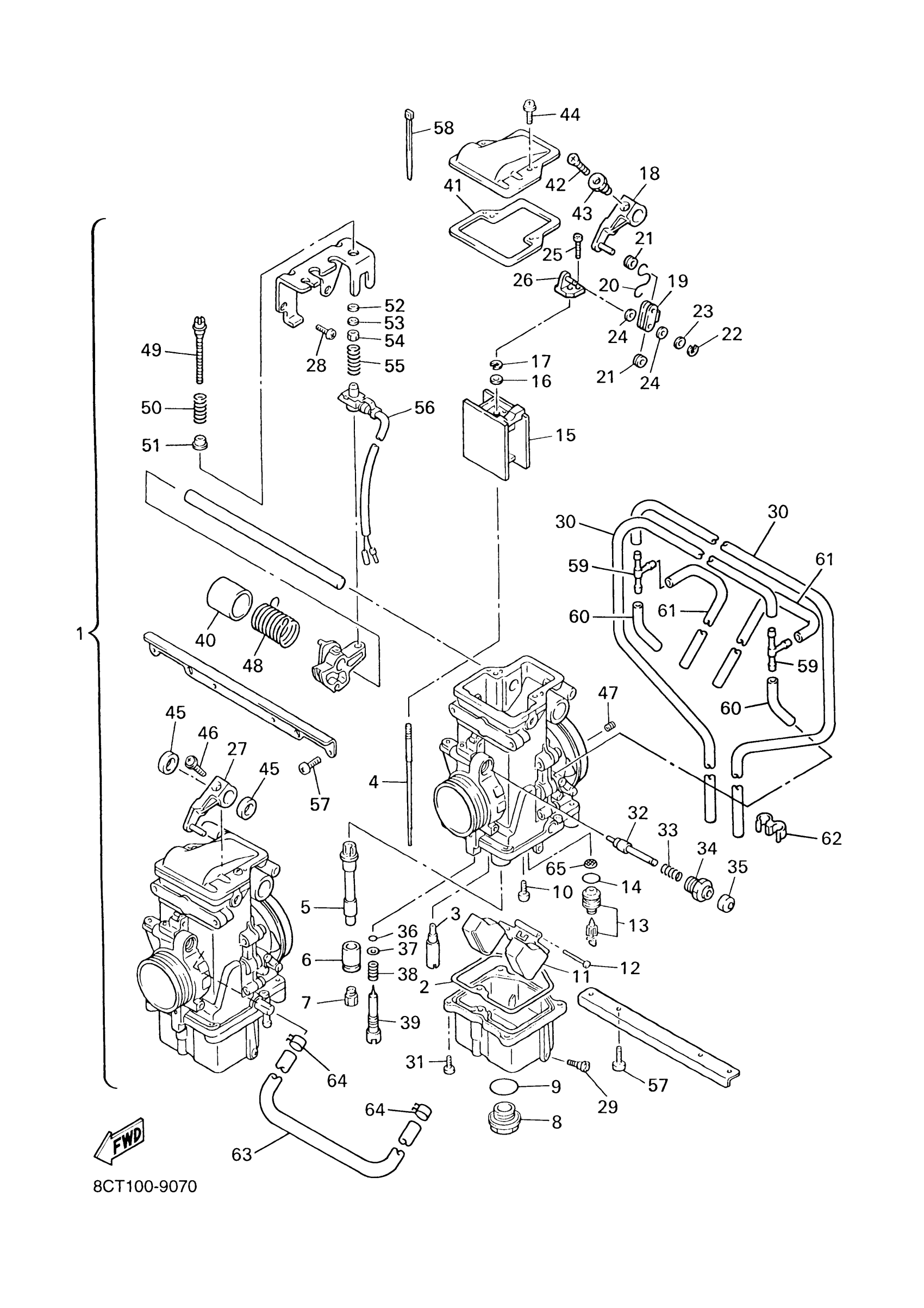

2001 Yamaha SX500 8CT3 Carburetor Diagram
Find the part on the Carburetor diagram for your 2001 Yamaha SX500 8CT3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSY
8CJ-14100-10-00
4
. NEEDLE
8CA-14116-A3-00
5
. NOZZLE, MAIN
8AY-14141-56-00
6
. RING
8CA-14194-00-00
7
JET, MAIN (#140)
3G2-14231-28-00
7
JET, MAIN (#145)
3G2-14231-29-00
7
JET,MAIN #152.5
3G2-1423A-81-00
9
O-RING (541)
558-14147-00-00
10
SCREW
2LN-14565-00-00
11
. FLOAT
8AY-14185-10-00
12
PIN, FLOAT
537-14186-00-00
14
O-RING
8F2-14147-00-00
15
. VALVE, THROTTLE 1
8CJ-14112-30-00
18
LEVER, STARTER
8CW-14905-00-00
19
. PLATE
8AY-14243-00-00
20
. CLIP
8CD-14137-00-00
21
. RING
8CC-14918-00-00
25
. SCREW
8CC-14216-00-00
27
LEVER,STARTER
8CW-14905-10-00
30
. PIPE 1
8CJ-14348-00-00
32
. PLUNGER, STARTER
8CW-14171-00-00
33
. SPRING, PLUNGER
256-14135-00-00
34
. CAP, PLUNGER
1FN-14174-00-00
35
. COVER, PLUNGER CAP
302-14173-00-00
40
. COLLAR
8AY-14265-00-00
41
. GASKET
8AY-14199-00-00
42
. SCREW, FLAT HEAD (98701-05018-00)
98703-05018-00
43
. RING
8AY-14918-00-00
44
SCREW, PAN HEAD WITH WASHER
97607-04108-00
45
. SPACER
583-14264-00-00
47
. PILOT JET, AIR (06)
239-14172-06-00
47
. PILOT JET, AIR (08)
239-14172-08-00
48
SPRING
8CJ-14275-00-00
53
. WASHER
1UF-14952-00-00
58
CLIP, PIPE
35H-14139-00-00
60
. PIPE 1
8CH-14348-00-00
63
. PIPE
8CJ-14348-10-00
64
CLIP (3G0)
90467-10039-00
65
NET, FILTER
1J7-14994-00-00
