2001 Yamaha SX500 8CT3 Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 2001 Yamaha SX500 8CT3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

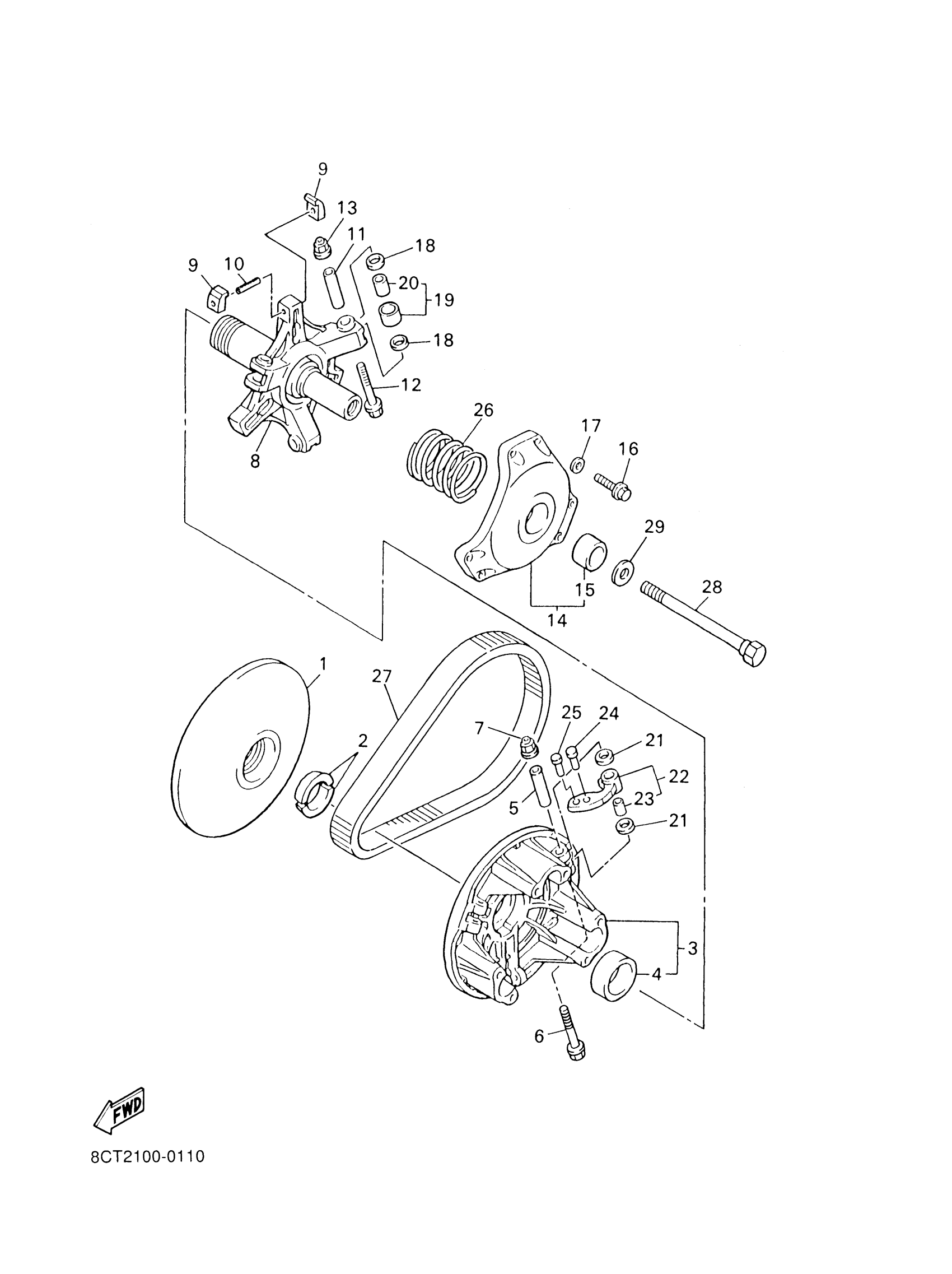

2001 Yamaha SX500 8CT3 Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

8CR-17611-02-00

1

$210.78

In stock

2

STOPPER

8V0-17639-00-00

1

$10.52

In stock

3

—

$259.28

In stock

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1

$50.08

In stock

5

COLLAR

90387-0514T-00

1

$14.86

In stock

6

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

7

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

8

SPIDER COMP.

8CA-17640-12-00

1
Out of stock

9

SLIDER

8BW-17653-00-00

1

$13.86

In stock

10

PIN, SPRING (7F7)

91609-50032-00

1

$3.66

In stock

11

COLLAR

90387-0514U-00

1

$15.86

In stock

12

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

13

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

14

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

1

$176.14

In stock

15

BUSH, SOLID(8CP)

90380-28237-00

1

$31.34

In stock

16

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

17

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

18

WASHER, PLATE(8BV)

90202-09227-00

—
Out of stock

19

ROLLER, COMP

8CR-17624-20-00

—
Out of stock

20

. BUSH, SOLID

90380-09245-00

1

$31.67

In stock

21

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

22

WEIGHT COMP

8DJ-17605-00-00

—

$113.05

In stock

23

. BUSH, SOLID

90380-08244-00

1
Out of stock

24

—

$7.55

In stock

25

—

$5.62

In stock

26

SPRING, COMPRESSION

90501-551L3-00

—

$39.48

In stock

27

V-BELT

89L-17641-02-00

1
Out of stock

28

BOLT (L=156.5MM)

8V0-17647-10-00

—

$21.45

In stock

29

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
