1971 Yamaha SW433E Tachometer Gear Unit Diagram

← All diagrams

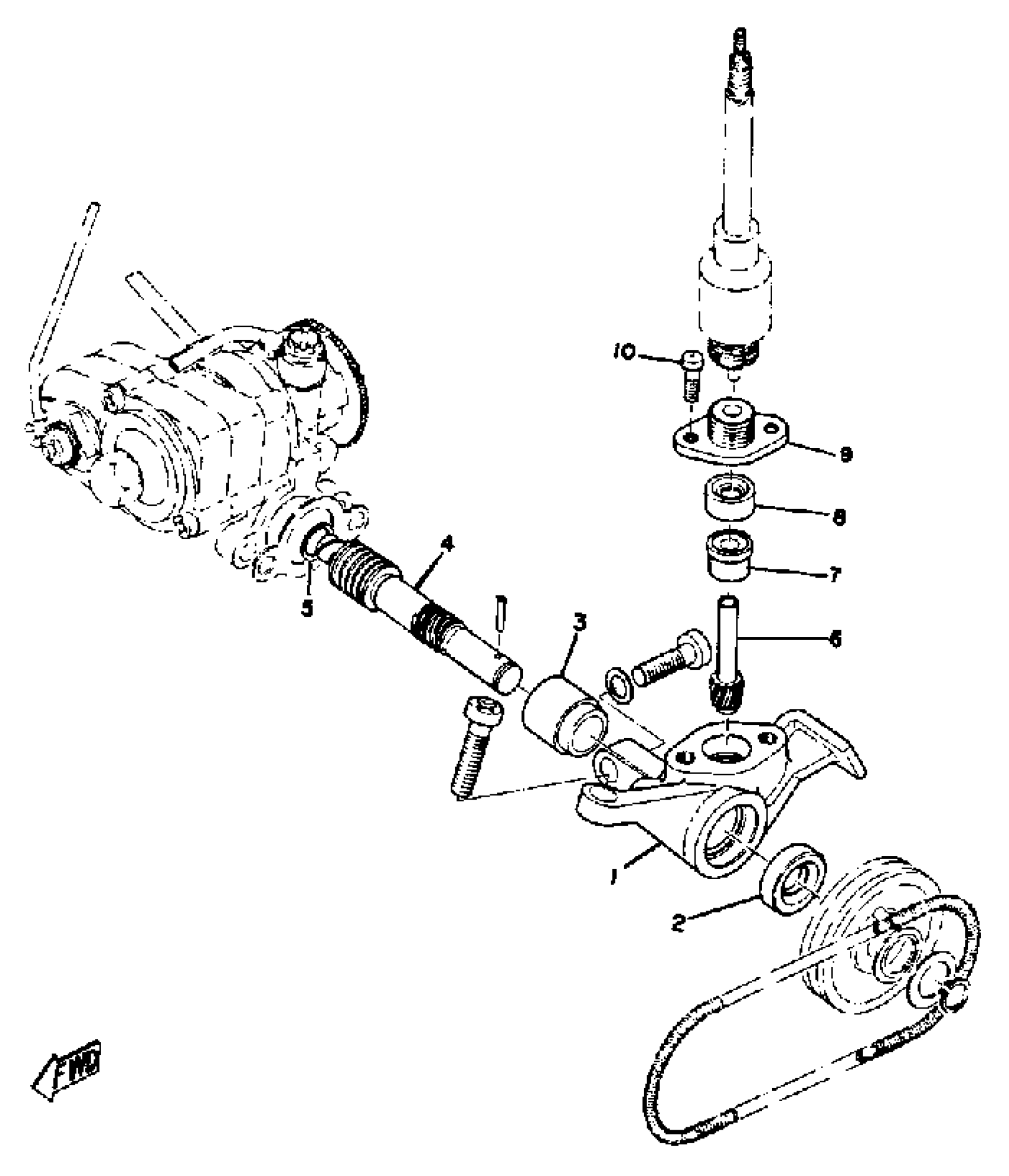

Find the part on the Tachometer Gear Unit diagram for your 1971 Yamaha SW433E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SW433E Tachometer Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, PUMP

(813-13199-00-00)

1
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

3

METAL, WRM SHAF OTR

(813-13176-00-00)

1
Out of stock

4

SHAFT, WORM

813-13175-00-00

1
Out of stock

5

SHIM

(813-17837-00-03)

1
Out of stock

5

SHIM

(813-17837-00-05)

1
Out of stock

6

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

7

BUSH, DRVN GR OUTER

(813-17843-00-00)

1
Out of stock

8

OIL SEAL, SO-TYPE

(93104-06035-00)

1
Out of stock

9

CAP, HOUSING

(813-17819-00-00)

1
Out of stock

10

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock
