1971 Yamaha SW433E Speedometer - Tachometer Diagram

← All diagrams

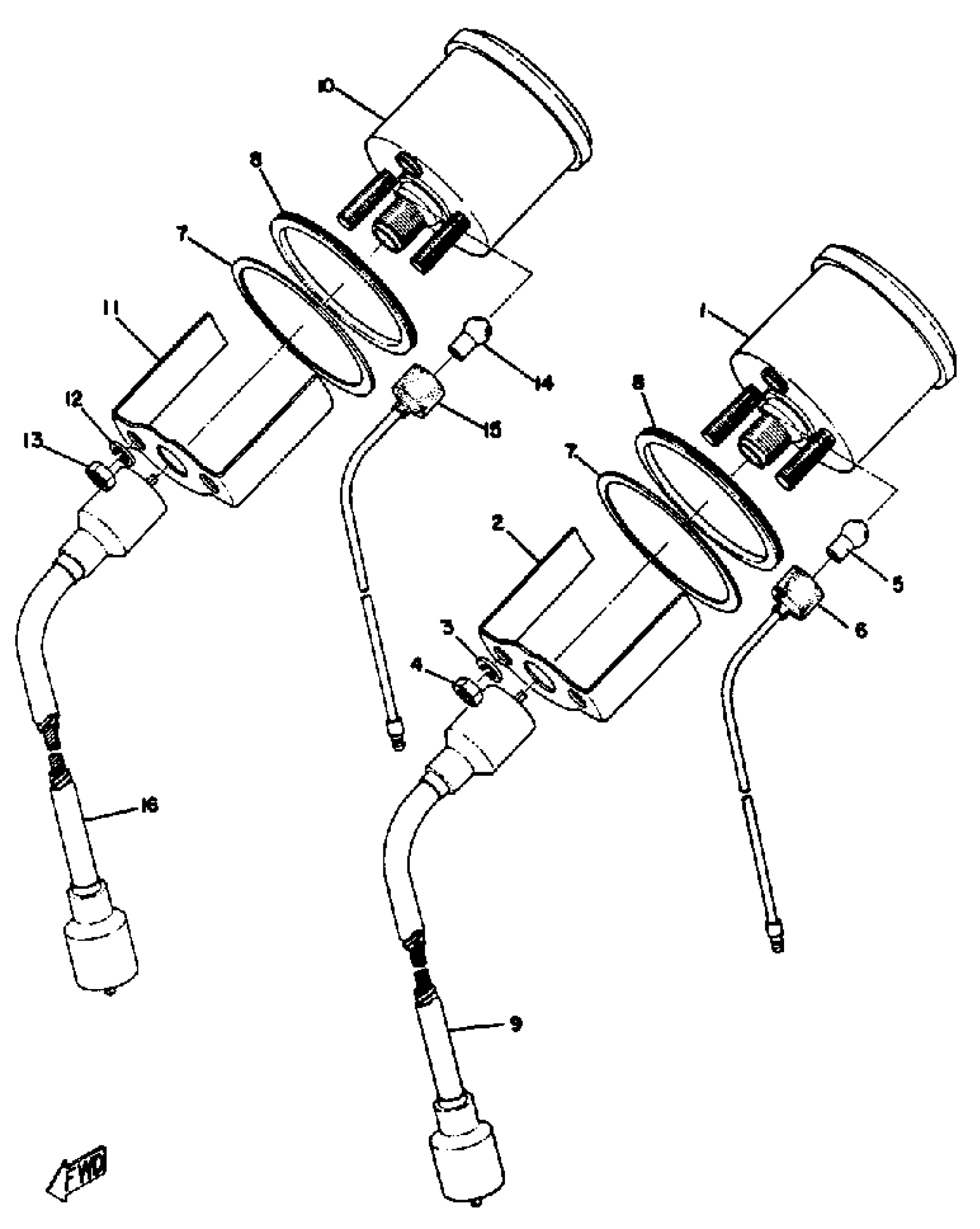

Find the part on the Speedometer - Tachometer diagram for your 1971 Yamaha SW433E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SW433E Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(809-83510-40-00)

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

BULB

256-84347-00-00

1
Out of stock

6

SOCKET, METER

(809-83536-40-00)

1
Out of stock

7

PLATE, FITTING

(803-83577-00-00)

1
Out of stock

8

DAMPER

(809-83513-00-00)

1
Out of stock

9

SPEEDOMETER CABLEASS''Y

813-83550-01-00

1
Out of stock

10

TACHOMETER ASSEMBLY

(811-83540-00-00)

1
Out of stock

11

TOOL

UNA-VAILA-BL-EI

1
Out of stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

BULB

256-84347-00-00

1
Out of stock

15

SOCKET, METER

(811-83536-00-00)

1
Out of stock

16

TACHOMETER CABLE

819-83560-01-00

1
Out of stock
