1971 Yamaha SW433E Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1971 Yamaha SW433E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

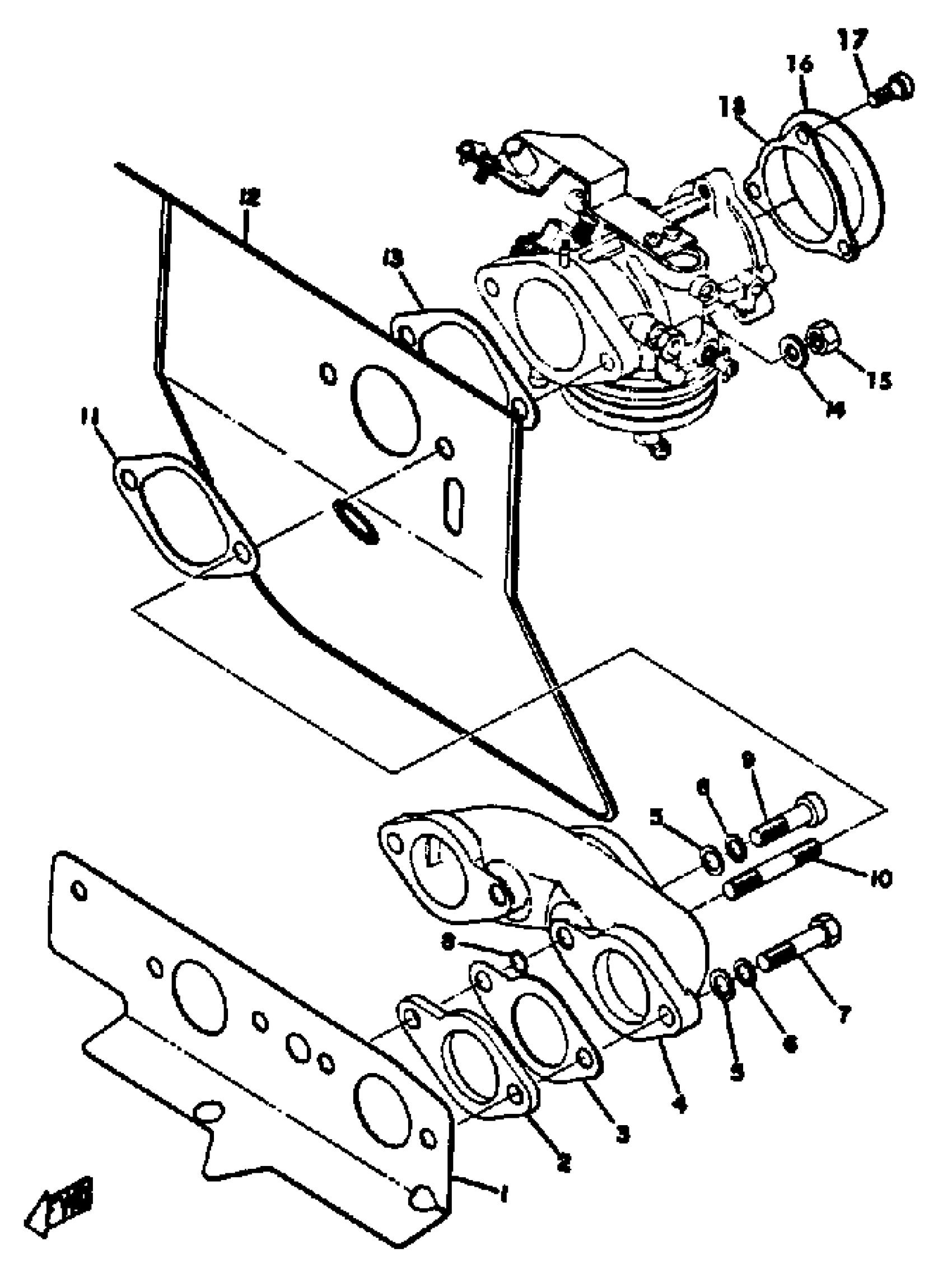

1971 Yamaha SW433E Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

(811-13557-00-00)

1
Out of stock

2

MANIFOLD, INTAKE

(8F1-13555-00-00)

1
Out of stock

3

GASKET

811-13563-09-00

1
Out of stock

4

JOINT, CARBURETOR

(811-13565-00-00)

1
Out of stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

BOLT

97013-08035-00

1

$4.80

In stock

8

O-RING (11M)

93210-07540-00

1

$5.77

In stock

9

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

10

BOLT STUD 811135580000

90116-08042-00

1
Out of stock

11

GASKET

810-13566-09-00

1
Out of stock

12

GASKET

(811-13567-00-00)

1
Out of stock

13

GASKET

(811-13566-00-00)

1
Out of stock

14

WASHER

(811-13571-00-00)

1
Out of stock

15

. NUT

95380-08700-00

1

$3.07

In stock

16

FUNNEL

(810-14479-00-00)

1
Out of stock

17

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock
