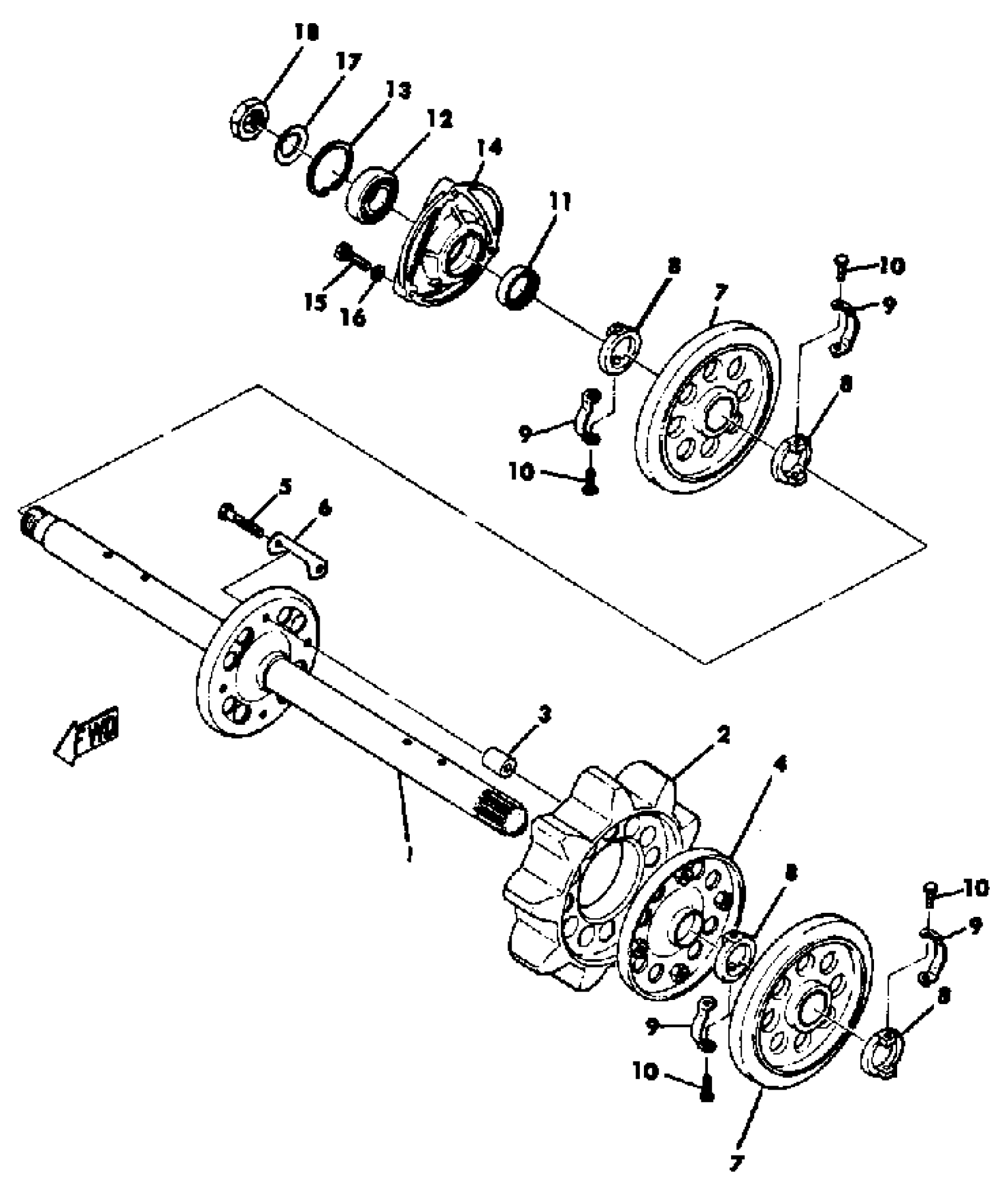

1971 Yamaha SW433E Front Axle Diagram

← All diagrams

Find the part on the Front Axle diagram for your 1971 Yamaha SW433E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SW433E Front Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT AXLE

(811-47510-01-00)

1
Out of stock

2

WHEEL, SPROCKET 2

810-47532-00-00

1
Out of stock

3

COLLAR

(90387-06021-00)

1
Out of stock

4

RIM, SPROCKET WHL 2

(810-47522-00-00)

1
Out of stock

5

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

6

WASHER, LOCK

90215-06100-00

1
Out of stock

7

GUIDE WHEEL

810-47530-00-00

1
Out of stock

8

COLLAR

810-47536-00-00

1
Out of stock

9

WASHER, LOCK

(810-47539-00-00)

1
Out of stock

10

BOLT, HEXAGON

97313-05016-00

1
Out of stock

11

OIL SEAL,SD-TYPE

93102-25332-00

1
Out of stock

12

BEARING

93306-00412-00

1
Out of stock

13

CIRCLIP, R-TYPE

93420-44029-00

1
Out of stock

14

HOUSING, FRONT AXLE

810-47551-00-00

1
Out of stock

15

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

WASHER 810475810000

90208-22001-00

—

$7.35

In stock

18

NUT (821-47579-00)

90170-22094-00

—

$5.34

In stock
