1971 Yamaha SW433E Carburetor Diagram

← All diagrams

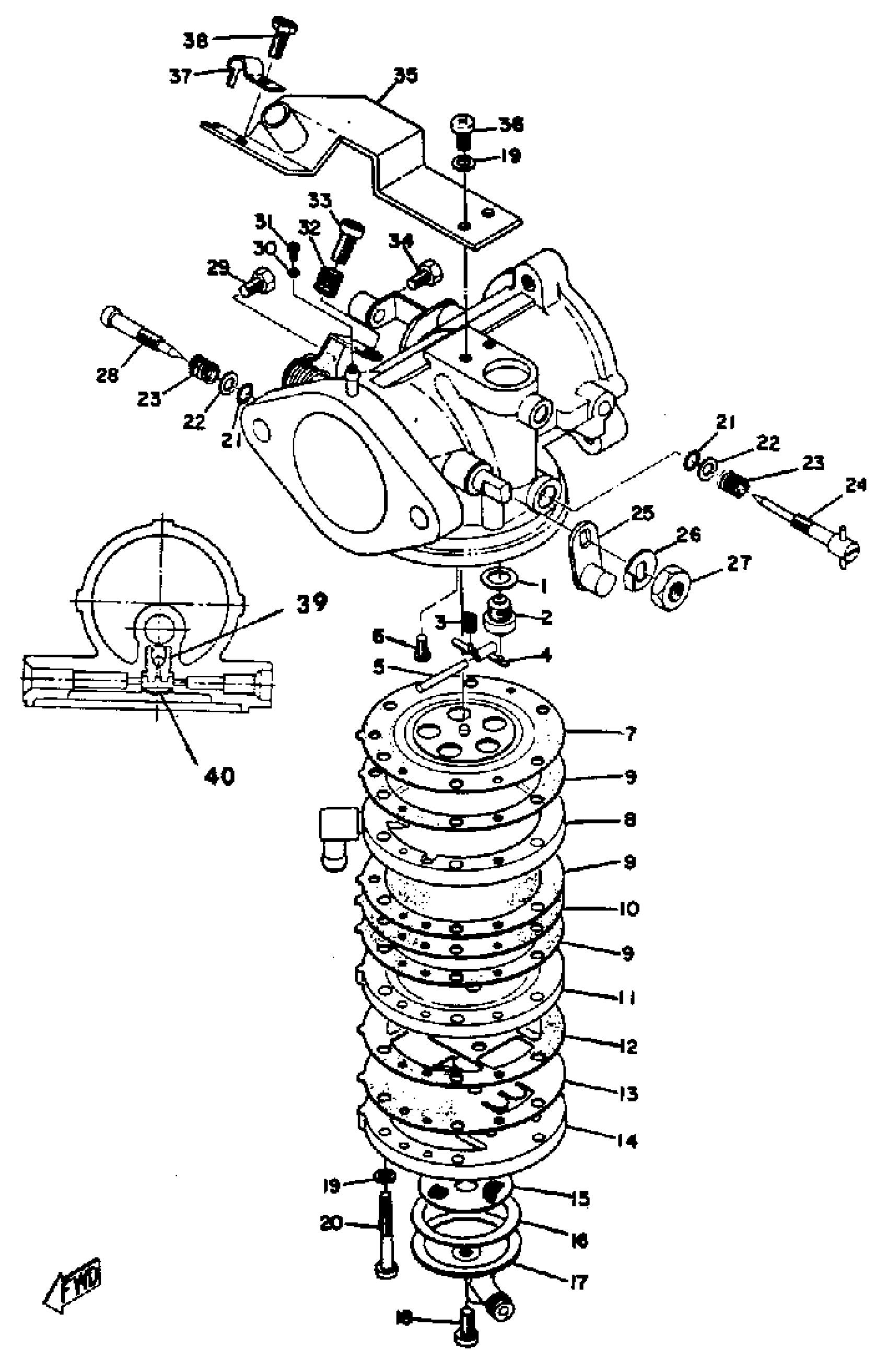

Find the part on the Carburetor diagram for your 1971 Yamaha SW433E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SW433E Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

1

CARBURETOR ASSEMBLY 1

(819-14101-00-00)

1
Out of stock

2

VALVE SEAT ASSY

620-14190-20-00

—

$36.89

In stock

3

SPRING, DIAPHRAGM

(811-24423-00-00)

1
Out of stock

4

ARM, DIAPHRAGM

812-14387-00-00

1
Out of stock

5

. PIN, FLOAT

439-14186-00-00

1

$12.49

In stock

6

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

7

. DIAPHRGM

812-24471-00-00

1
Out of stock

8

BODY 1

(812-24412-00-00)

1
Out of stock

9

. GASKET, BODY

812-24434-00-00

1
Out of stock

10

. DIAPHRAGM

812-24411-00-00

1
Out of stock

11

BODY 2

(812-24413-00-00)

1
Out of stock

12

. GASKET, BODY 2

812-24435-00-00

1
Out of stock

13

. VALVE, CHECK

812-24421-00-00

1
Out of stock

14

BODY 3

(812-24414-00-00)

1
Out of stock

15

NET, FILTER

(812-24451-00-00)

1
Out of stock

16

. GASKET

812-24468-00-00

1
Out of stock

17

. COVER

812-24452-00-00

1
Out of stock

18

. SCREW

812-24453-00-00

1
Out of stock

19

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

20

. SCREW, PAN HEAD (811-14125-0)

619-81345-20-00

1
Out of stock

21

. O-RING

6K8-14562-00-00

1

$1.91

In stock

22

WASHER,NEEDLE

812-14235-00-00

1
Out of stock

23

. SPRING, AIR ADJUSTING

137-14134-00-00

1
Out of stock

24

SCREW, AIR ADJUSTING

(812-14123-00-00)

1
Out of stock

25

LEVER

(811-14582-00-00)

1
Out of stock

26

WASHER

(812-14596-00-00)

1
Out of stock

27

NUT

812-14594-00-00

—

$5.34

In stock

28

SCREW, MAIN ADJUST

(812-14125-00-00)

1
Out of stock

29

SCREW, ROD

(193-14486-00-00)

1
Out of stock

30

WASHER, PLUG SCREW

(811-14117-00-00)

1
Out of stock

31

PLUG, DRAIN

(811-14191-00-00)

1
Out of stock

32

SPRING, THRTL STOP

(811-14133-00-00)

1
Out of stock

33

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

34

SCREW, ROD

(193-14486-00-00)

1
Out of stock

35

BRACKET, THROTTLE

(811-14571-00-00)

1
Out of stock

36

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

37

PLATE

(811-14243-00-00)

1
Out of stock

38

SCREW, ROD

(811-14486-00-00)

1
Out of stock

39

. NOZZLE, MAIN

822-14141-00-00

1
Out of stock

40

. PLUG, DRAIN

812-14191-00-00

1
Out of stock
