2026 Suzuki SV650AM6(E33) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2026 Suzuki SV650AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

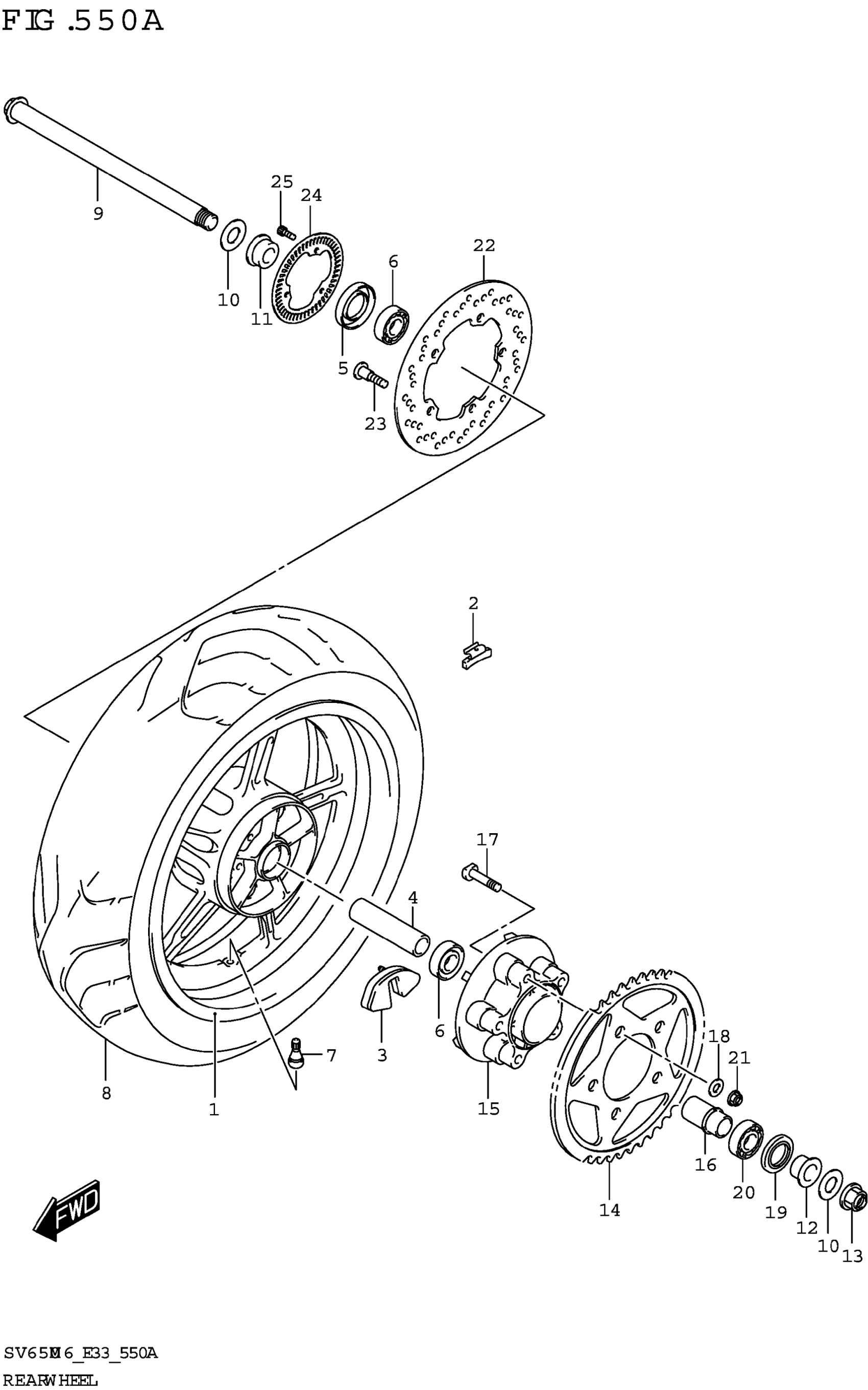

2026 Suzuki SV650AM6(E33) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

WHEEL,REAR (17M/CXMT5.00,SILV | R) BODY COLOR:YKV,C2L

64111-18K10-YMY

1
Out of stock

1-2

WHEEL,REAR (BLUE) | BODY COLOR:CGJ

64111-18K10-YLY

1
Out of stock

2-1

BALANCER,WHEEL (10G)

55411-22H00

1
Out of stock

2-2

BALANCER,WHEEL (20G)

55412-22H00

1
Out of stock

2-3

BALANCER,WHEEL (30G)

55413-22H00

1
Out of stock

3

ABSORBER,RR HUB SHOCK

64651-27A01

5
Out of stock

4

SPACER (20.5X28X88)

09180-20062

1
Out of stock

5

SEAL,OIL (27X47X7)

09285-28004

1
Out of stock

6

BEARING

08123-6204B

2
Out of stock

7

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

1
Out of stock

8

TIRE,REAR (160/60ZR17 M/C 69W

65110-18K02

1
Out of stock

9

AXLE,REAR

64711-17E40

1
Out of stock

10

WASHER,RR AXLE

64723-44H00

2
Out of stock

11

SPACER,RR AXLE,R

64741-22D00

1
Out of stock

12

SPACER,RR AXLE,L

64751-44H00

1
Out of stock

13

NUT

09159-20013

1
Out of stock

14

SPROCKET,RR (46T-520)

64511-44H20

1
Out of stock

15

DRUM,REAR SPROCKET MTG

64611-19F10

1
Out of stock

16

RETAINER,RR HUB BEARING

64733-27A00

1
Out of stock

17

BOLT (10X47)

09119-10043

5
Out of stock

18

WASHER (10.5X22X2.3)

09160-10039

5
Out of stock

19

SEAL,OIL (35X62X8)

09285-35001

1
Out of stock

20

BEARING

08113-6305B

1
Out of stock

21

NUT

08319-3110A

5
Out of stock

22

DISC,RR BRAKE

69211-38G00

1
Out of stock

23

BOLT (8X21)

09106-08160

5
Out of stock

24

RING,SPEED SENSOR FR (50T)

54162-44H00

1
Out of stock

25

BOLT

07130-0512A

3
Out of stock
