2026 Suzuki SV650AM6(E33) Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2026 Suzuki SV650AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

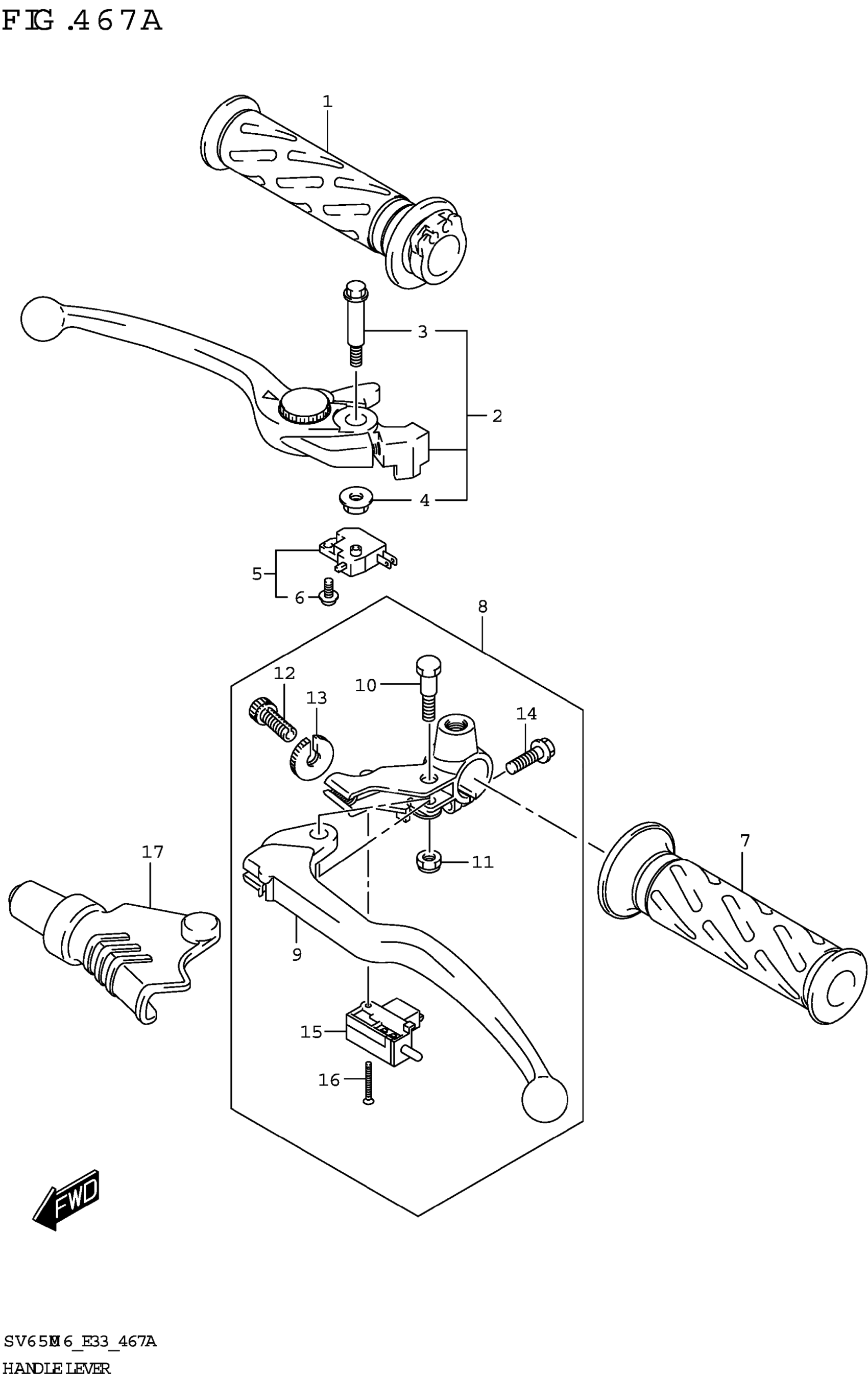

2026 Suzuki SV650AM6(E33) Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE

57110-21H02

1
Out of stock

2

LEVER ASSY,BRAKE

57300-44G20

1
Out of stock

3

.BOLT,LEVER PIVOT

57431-17H02

1
Out of stock

4

.NUT

08319-2106A

1
Out of stock

5

SWITCH ASSY,FR BRAKE

57460-14J02

1
Out of stock

6

.SCREW,WITH WASHER (4X12)

57465-17C00

1
Out of stock

7

GRIP,L

57211-21H01

1
Out of stock

8

LEVER ASSY,CLUTCH

57500-25D32

1
Out of stock

9

..LEVER,CLUTCH

57621-25D10

1
Out of stock

10

..BOLT,LEVER PIVOT

57431-21D11

1
Out of stock

11

.NUT

08319-2106A

1
Out of stock

12

.ADJUSTER, WIRE

57441-45C01

1
Out of stock

13

.NUT, LOCK

57442-45C01

1
Out of stock

14

..BOLT

01547-0620B

1
Out of stock

15

.SWITCH,CLUTCH

57560-05A00

1
Out of stock

16

.SCREW,CLUTCH SWITCH

57562-41G01

1
Out of stock

17

COVER,CLUTCH LEVER

57661-33E01

1
Out of stock
