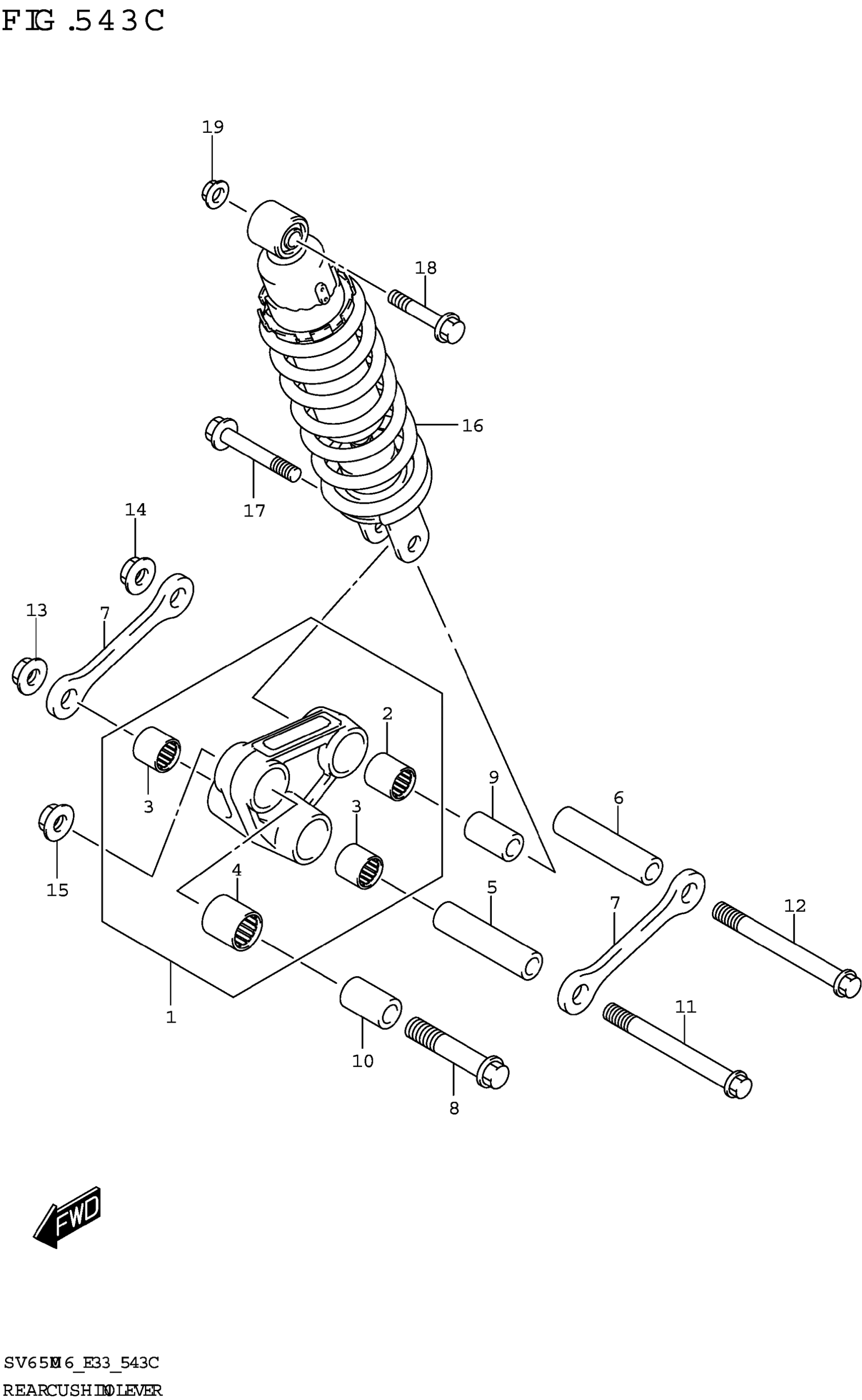

Suzuki SV650AM6(E33) (2026) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,RR CUSHION

62600-44882

$424.75

2

.BEARING (17X24X26)

09263-17057

$19.09

3

.BEARING (17X24X25)

09263-17053

$19.55

4

.BEARING (20X27X30)

09263-20121

$16.32

5

SPACER,RR CUSHION LEVER CTR ( | 2X17X68)

62626-17G00

$28.58

6

SPACER,RR CUSHION LEVER CTR ( | 2X17X68)

62626-17G00

$28.58

7

ROD,RR CUSHION LEVER

62641-44H00

$37.90

8

BOLT, LOWER | 0) This part replaces 62668-30B00.

62668-42A02

$12.03

9

SPACER,RR CUSHION LEVER (10X1 | X30)

62684-40A10

$11.44

10

SPACER,RR CUSHION LEVER FR (1 | X20X32)

62684-12C00

$20.72

11

BOLT (12X96)

09103-12034

$11.20

12

BOLT (12X96)

09103-12034

$11.20

13

NUT

09159-12056

$6.65

14

NUT

09159-12056

$6.65

15

NUT

09159-12056

$6.65

16

ABSORBER ASSY,REAR SHOCK (BLA | K)

62100-44HB1-019

$562.97

17

BOLT (10X48)

09103-10126

$4.07

18

BOLT (10X52)

09103-10213

$6.27

19

NUT (M10)

09159-10115

$3.21
