2024 Suzuki SV650AM4(E28) Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2024 Suzuki SV650AM4(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

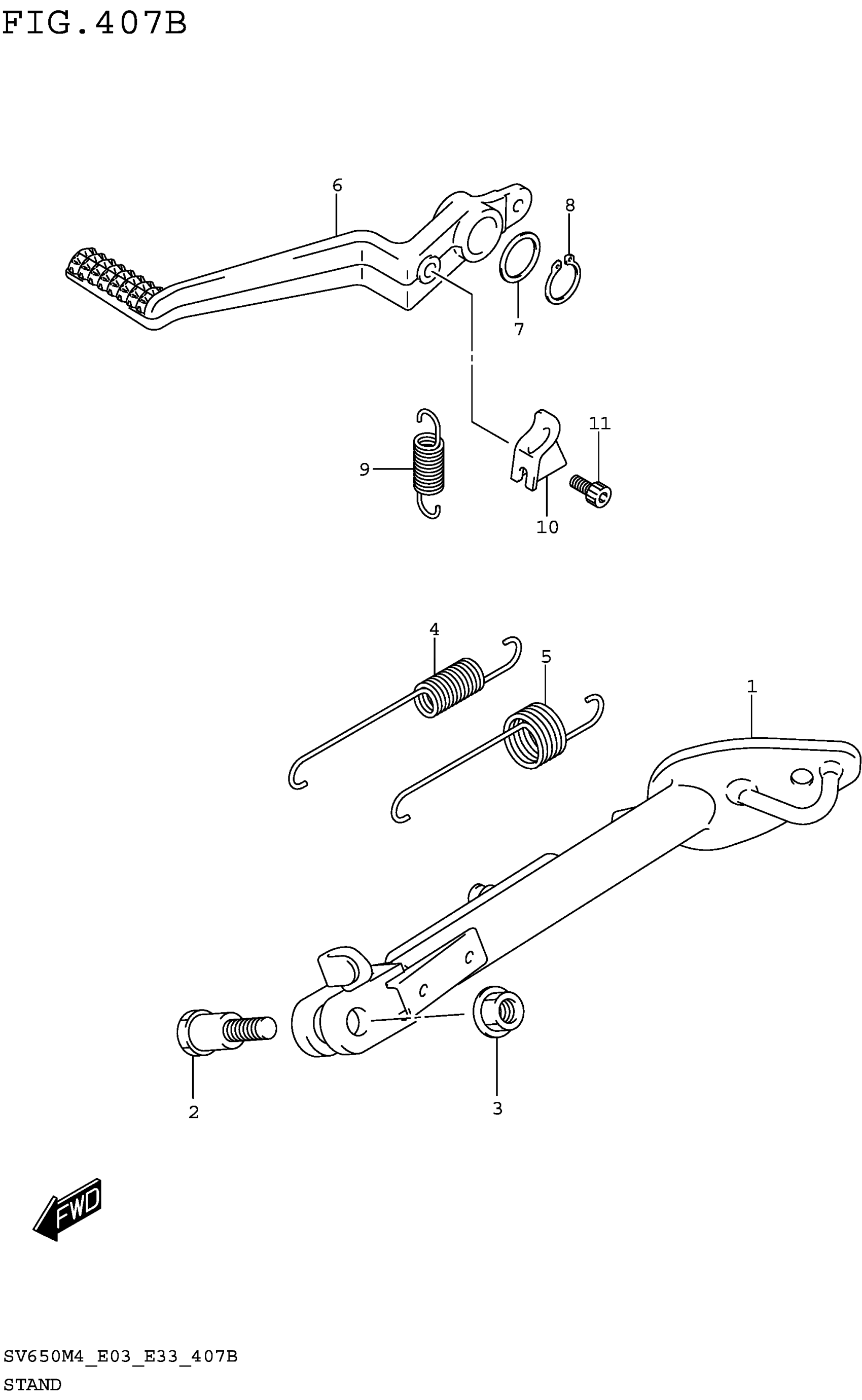

2024 Suzuki SV650AM4(E28) Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND,PROP

42310-18K00

1
Out of stock

2

BOLT (10X21)

09111-10059

1
Out of stock

3

NUT

08319-3110A

1
Out of stock

4

SPRING

09443-15046

1
Out of stock

5

SPRING

09443-22017

1
Out of stock

6

PEDAL,BRAKE

43111-44G10

1
Out of stock

7

WASHER (18X24X1.0)

09160-18022

1
Out of stock

8

CIRCLIP

08331-3118A

1
Out of stock

9

SPRING

09443-11030

1
Out of stock

10

BRACKET,RETURN SPRING

43561-44G00

1
Out of stock

11

BOLT

07130-0610B

1
Out of stock
