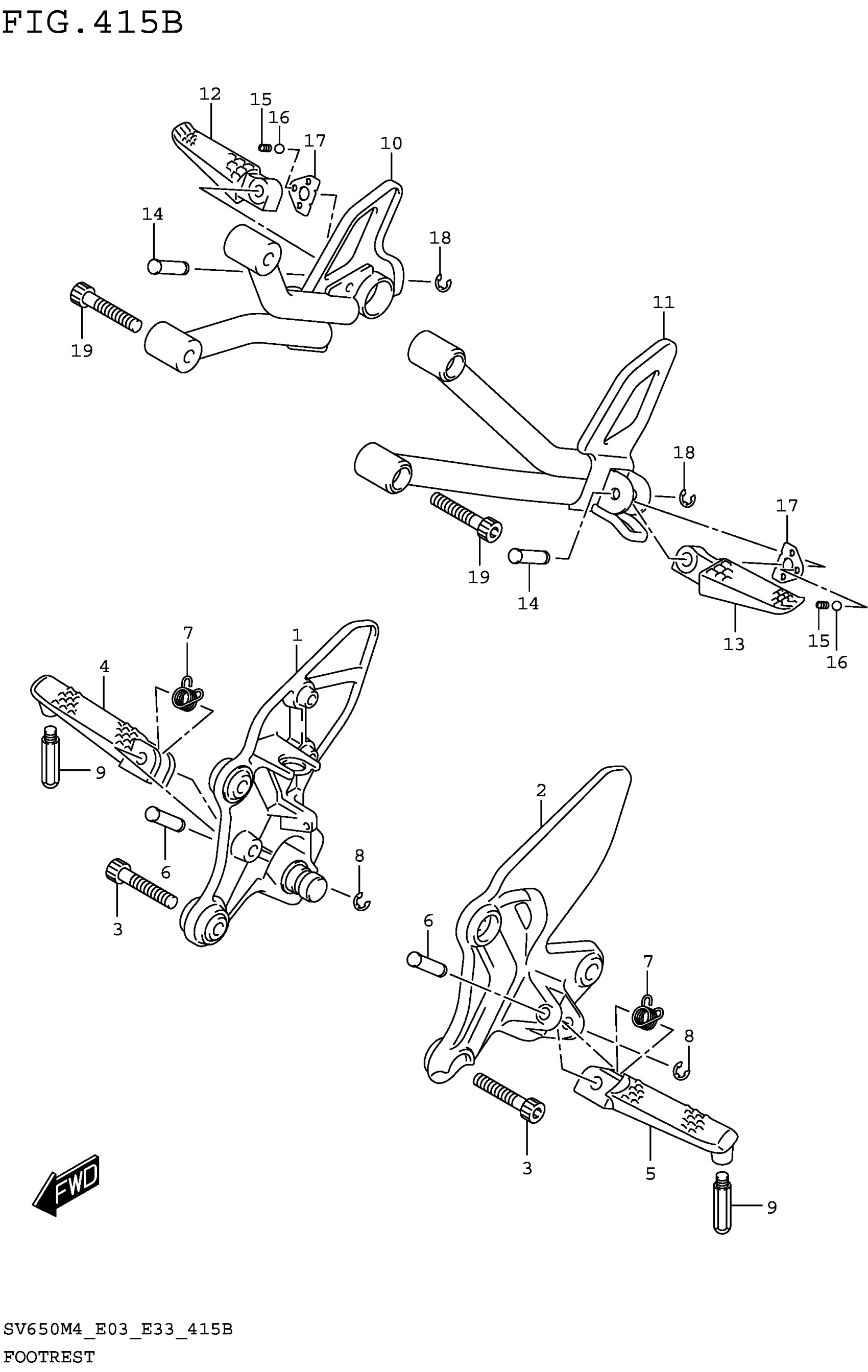

Find the part on the Footrest diagram for your 2024 Suzuki SV650AM4(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki SV650AM4(E28) Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,FOOTREST RH

43510-18K00

1
Out of stock

2

BRACKET,FOOTREST LH

43521-18K00

1
Out of stock

3

BOLT (8X23)

09106-08186

4
Out of stock

4

BAR,FRONT FOOTREST,R This part replaces 43516-18K00.

43516-18K20

1
Out of stock

5

BAR,FRONT FOOTREST,L This part replaces 43526-18K00.

43526-18K20

1
Out of stock

6

PIN

09208-08019

2
Out of stock

7

SPRING

09448-14046

2
Out of stock

8

E-RING

08332-1106A

2
Out of stock

9

BOLT,BANK SENSOR

43576-48B20

2
Out of stock

10

BRACKET,PILLION FTRST RH

43810-18K00

1
Out of stock

11

BRACKET,PILLION FTRST LH

43820-18K00

1
Out of stock

12

BAR,PILLION FOOTREST,R

43611-37H20

1
Out of stock

13

BAR,PILLION FOOTREST,L

43621-37H20

1
Out of stock

14

PIN

09208-08017

2
Out of stock

15

SPRING

09440-05005

2
Out of stock

16

BALL

06111-07004

2
Out of stock

17

PLATE,PILLION FOOTREST

43816-01H10

2
Out of stock

18

E-RING

08332-1106A

2
Out of stock

19

BOLT (8X40)

09106-08074

4
Out of stock
