2024 Suzuki SV650AM4(E28) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2024 Suzuki SV650AM4(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

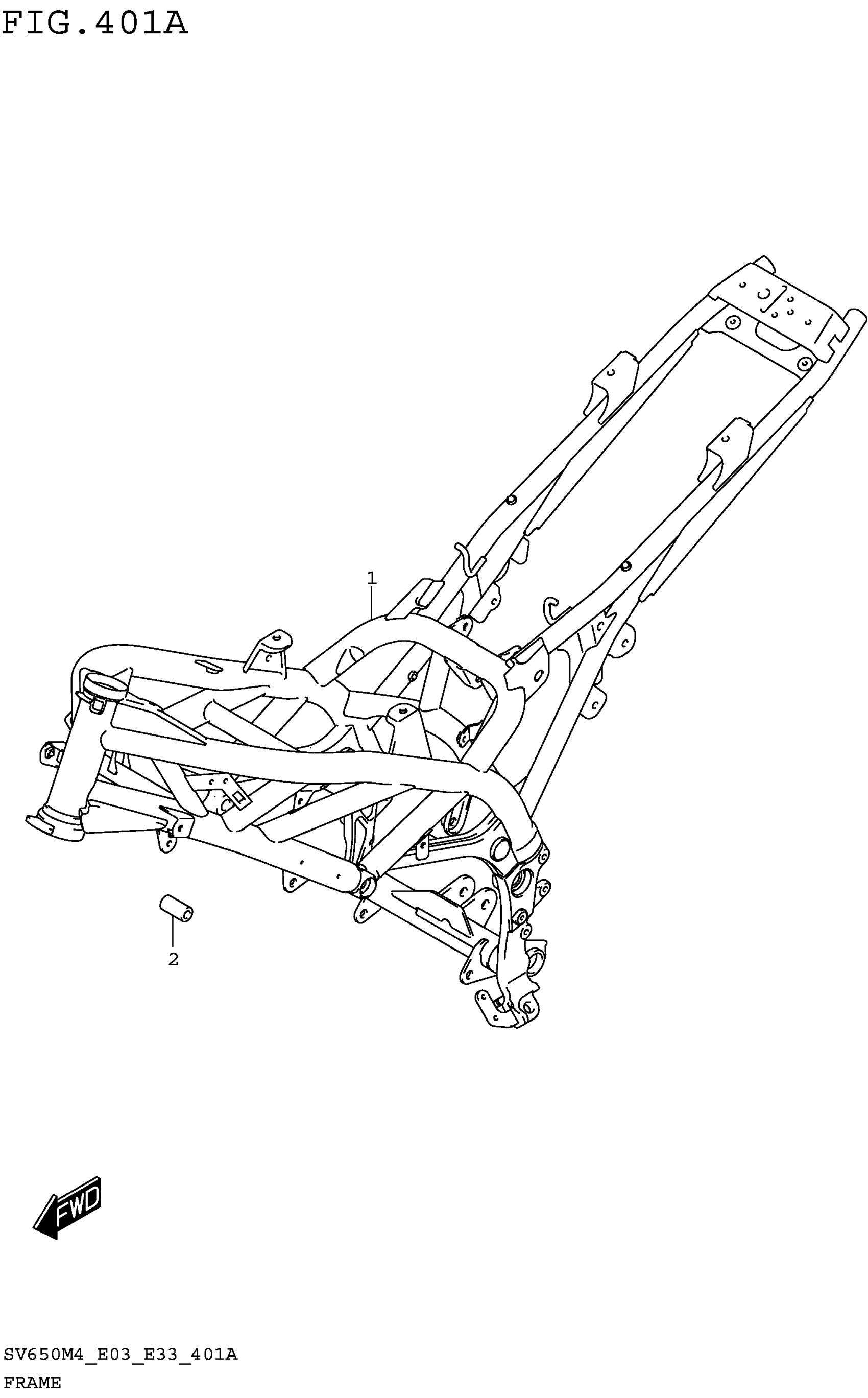

2024 Suzuki SV650AM4(E28) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

FRAME (SILVER) | FOR QT8,YVB

41100-18K20-YMC

1
Out of stock

1-2

FRAME (GRAY) | FOR BTH

41100-18K20-YUD

1
Out of stock

2

SPACER,ENG HEAD MTG

41942-44H00

1
Out of stock

3

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.401B(1-H-5 ) FRAME (SV650M4 E33) FIG.401C(1-H-6 ) FRAME (SV650AM4 E28) FIG.401D(1-H-7 ) FRAME (SV650AM4 E33) FIG.401E(1-H-8 ) FRAME (SV650XAM4 E28)

SPECIAL NOTE

—
Out of stock
← Frame Frame →

More Body & Frame diagrams
