2024 Suzuki SV650AM4(E28) Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2024 Suzuki SV650AM4(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

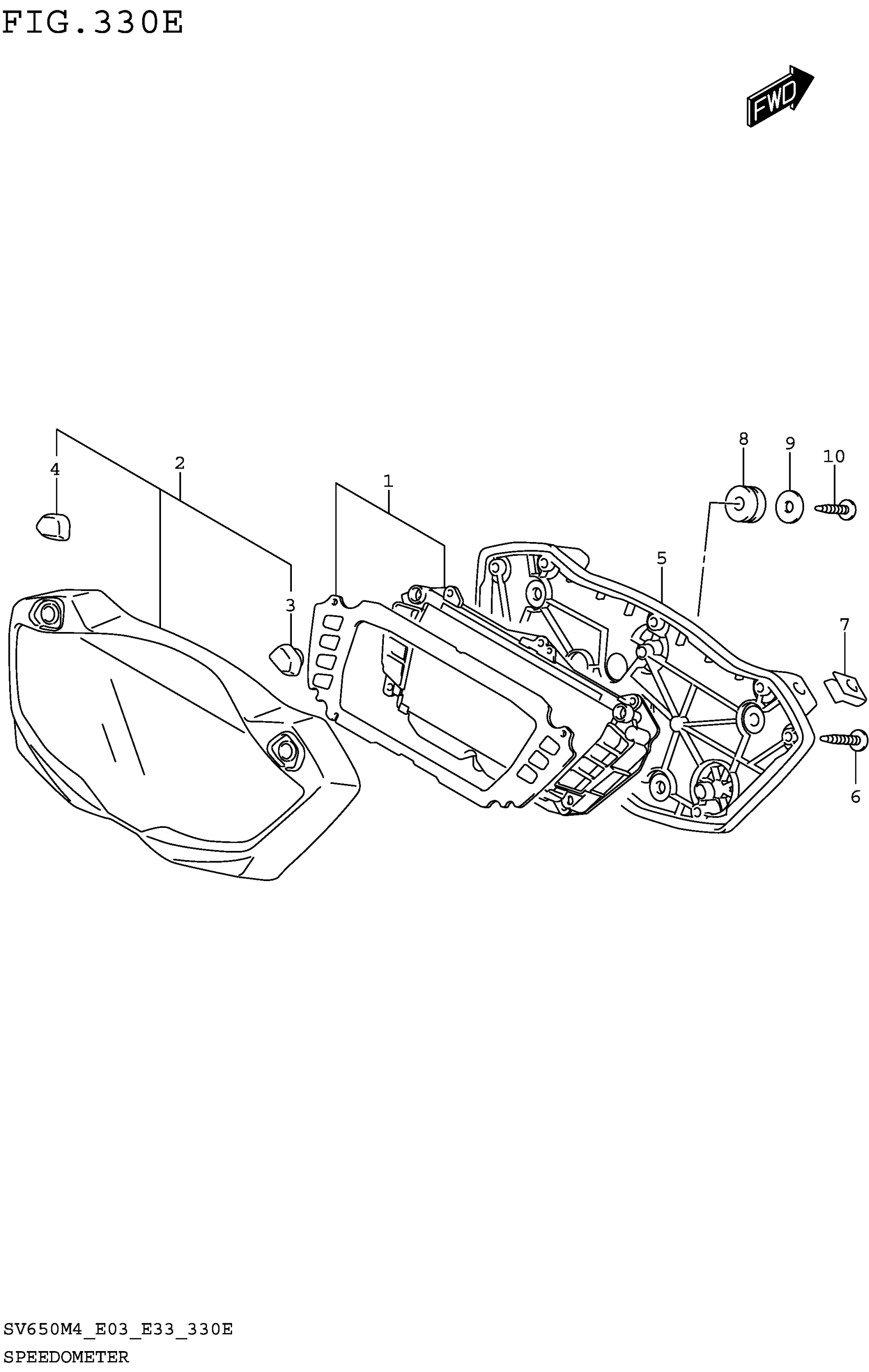

2024 Suzuki SV650AM4(E28) Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER

34120-18K01

1
Out of stock

2

CASE ASSY,UPPER

34150-04K01

1
Out of stock

3

.SWITCH RUBBER RH

34124-04K00

1
Out of stock

4

.SWITCH RUBBER LH

34124-04K10

1
Out of stock

5

CASE ASSY,LOWER

34111-04K00

1
Out of stock

6

SCREW

34183-10C00

8
Out of stock

7

NUT (M5)

09148-05052

2
Out of stock

8

CUSHION,SPEEDOMETER

34189-08J01

3
Out of stock

9

WASHER (4.5X16X1.2)

09160-04026

1
Out of stock

10

SCREW

03541-0416A

1
Out of stock
