2024 Suzuki SV650AM4(E28) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2024 Suzuki SV650AM4(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

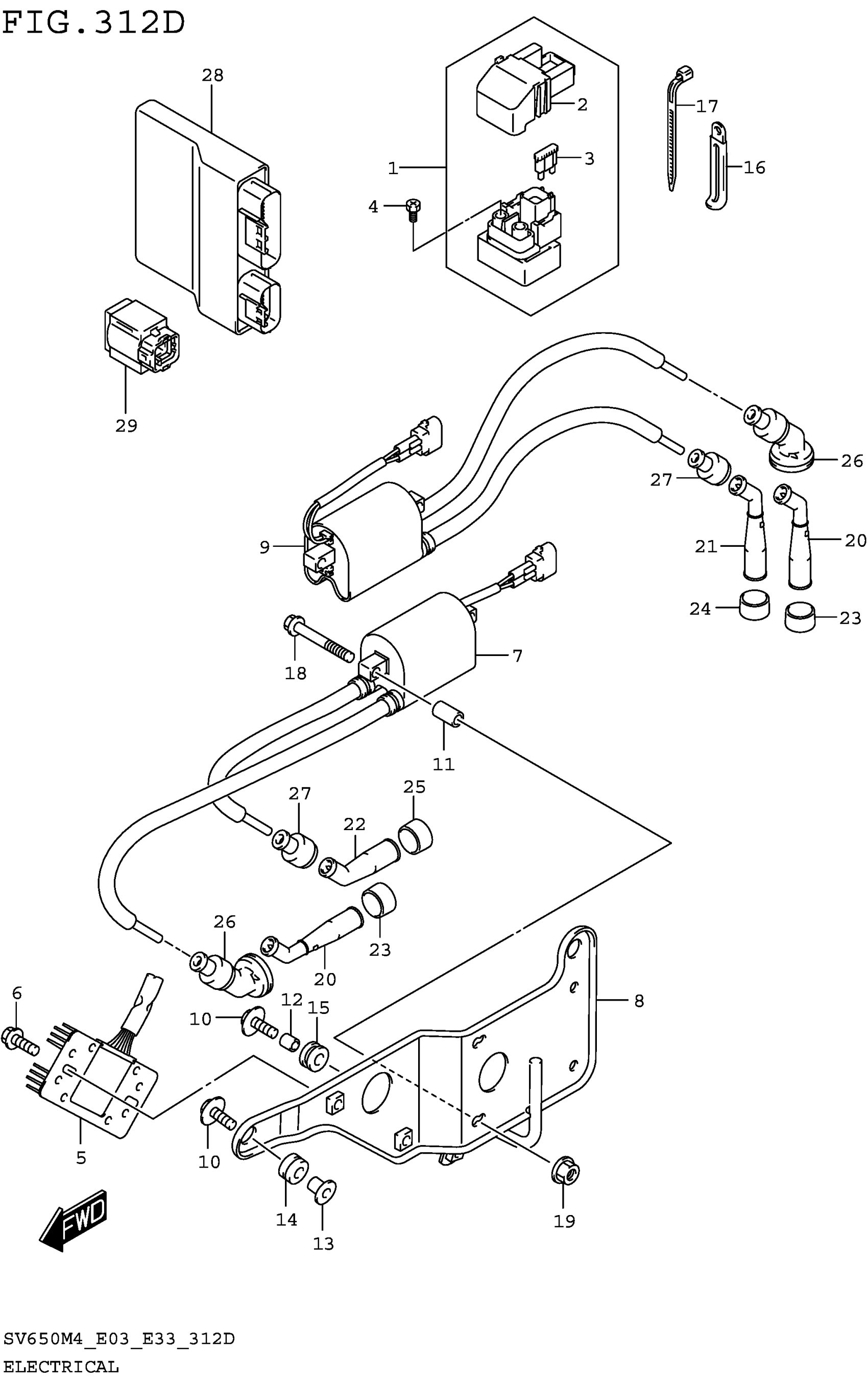

2024 Suzuki SV650AM4(E28) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR

31800-06G02

1
Out of stock

2

.COVER

31861-47E00

1
Out of stock

3

.FUSE (30A)

09481-30101

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-47H00

1
Out of stock

6

SCREW This part replaces 02162-0616A.

02162-0616B

2
Out of stock

7

COIL ASSY,IGNITION FRONT

33410-18K00

1
Out of stock

8

BRACKET,IGN COIL REAR

33414-44H01

1
Out of stock

9

COIL ASSY,IGNITION REAR

33420-18K00

1
Out of stock

10

BOLT (6X20)

09116-06188

3
Out of stock

11

SPACER (6.4X10X18)

09180-06195

4
Out of stock

12

SPACER (6.5X9X9)

09180-06263

1
Out of stock

13

SPACER (6.2X8.4X10.9)

09180-06331

2
Out of stock

14

CUSHION (8X18X10)

09320-08501

2
Out of stock

15

CUSHION (9X18X9.5)

09320-09016

1
Out of stock

16

CLAMP (L:80)

09404-06030

—
Out of stock

17

CLAMP (L:165)

09407-18402

1
Out of stock

18

BOLT (6X40)

09103-06531

4
Out of stock

19

NUT (6X12)

08316-1006A

4
Out of stock

20

CAP ASSY,SPARK PLUG

33510-17G00

2
Out of stock

21

CAP ASSY,SPARK PLUG | SIDE

33510-17G00

1
Out of stock

22

CAP ASSY,SPARK PLUG | SIDE

33510-20E00

1
Out of stock

23

SEAL,SPARK PLUG

33541-23E10

2

$6.72

In stock

24

1

$6.72

In stock

25

SEAL,SPARK PLUG | SIDE

33541-47D00

1
Out of stock

26

SEAL,HIGH TENSION CORD CTR

33542-17G01

2
Out of stock

27

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

2
Out of stock

28

CONTROL UNIT,FI

32920-18K11

1
Out of stock

29

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock
