2024 Suzuki SV650AM4(E28) Seat Diagram

← All diagrams

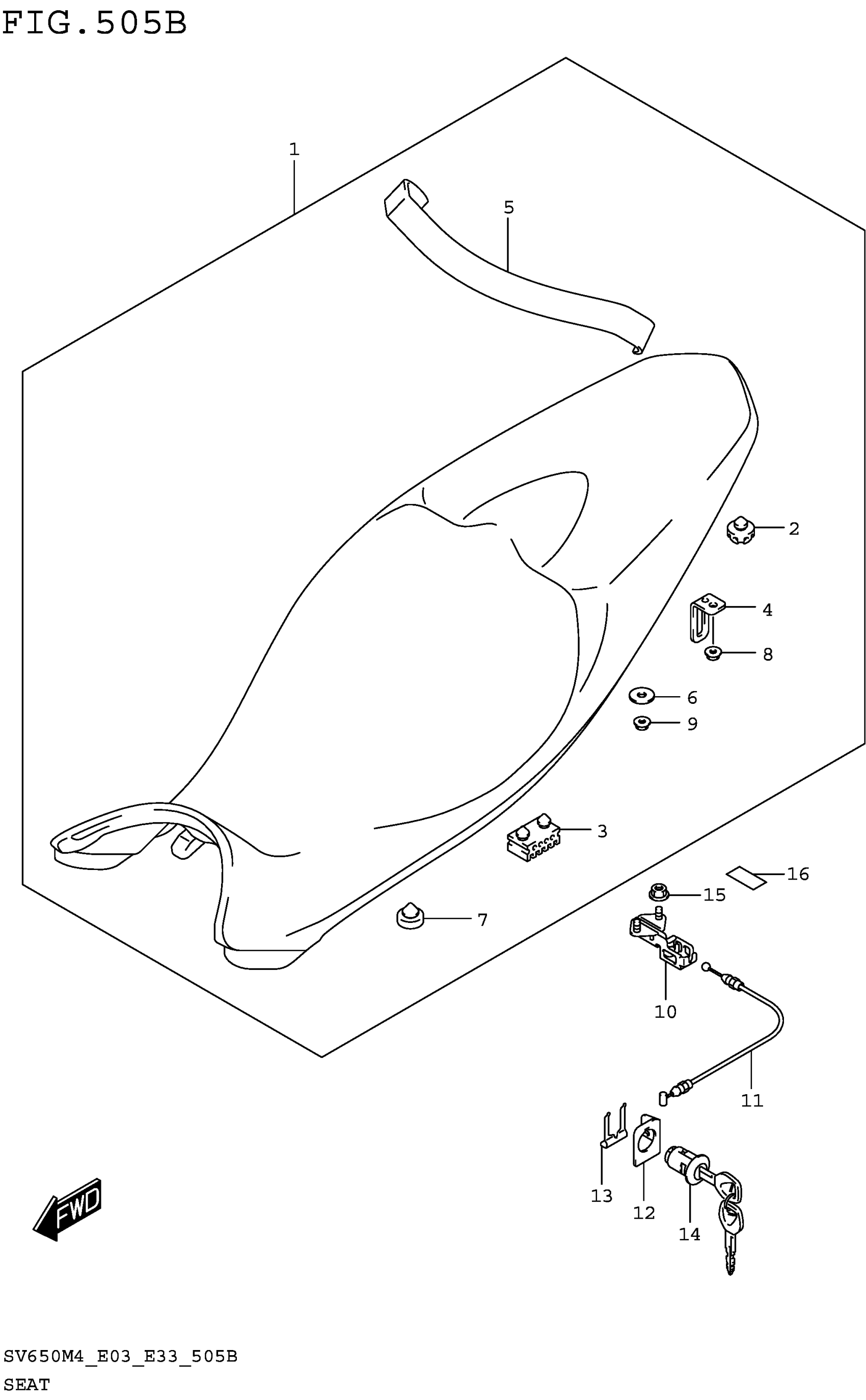

Find the part on the Seat diagram for your 2024 Suzuki SV650AM4(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki SV650AM4(E28) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK)

45100-18K03-BBC

1
Out of stock

2

.CUSHION

45148-20G90

2
Out of stock

3

.CUSHION,SEAT (40X20X15)

45149-31300

2
Out of stock

4

.STRIKER,SEAT LOCK

45212-18K00

1
Out of stock

5

.BAND,SEAT GRIP (BLACK)

45380-18K01-P3H

1
Out of stock

6

.WASHER (6.5X20X1.6)

09160-06088

2
Out of stock

7

CUSHION

09321-10012

4
Out of stock

8

NUT (6X12)

08316-1006A

1
Out of stock

9

NUT (6X12)

08316-1006A

2
Out of stock

10

BRACKET,STRIKER SUPPORT

45220-04K20

1
Out of stock

11

CABLE,SEAT LOCK

45280-18K00

1
Out of stock

12

GUIDE,SEAT LOCK CABLE

45288-14F00

1
Out of stock

13

PLATE,SEAT LOCK ASSY

45289-11F00

1
Out of stock

14

LOCK SET,SEAT

95700-14810

1
Out of stock

15

NUT (6X12)

08316-1006A

2
Out of stock

16

PROTECTOR

94432-19F00

2
Out of stock
← Seat Seat →
