Description

Price

1

COVER,HEADLAMP

51811-18K01

$42.59

2

CUSHION (15X70X7)

51827-13G00

$4.77

3

CUSHION,METER COVER (10X30X5)

51827-18K00

$5.60

4

SCREW (6X22.5)

09139-06118

$3.16

5

SPACER (6.5X9X51)

09180-06368

$8.77

6

CUSHION (9X18X9.5)

09320-09016

$2.01

7

CUSHION (10X20X10)

09320-10078

$5.32

8

BOLT

07120-0665B

$4.92

9

COVER,METER,R (BLACK)

51821-18K00-YKV

$105.20

10

COVER,METER,L (BLACK)

51831-18K00-YKV

$103.25

11

COVER,METER CENTER

51841-18K00

$7.66

12

BOLT (5X13)

09139-05074

$2.66

13

CUSHION (6X18X6)

09320-06504

$4.61

14

SCREW

03541-0512A

$1.41

15

CUSHION,HEADLAMP BRACE

51831-21D00

$4.50

16

BRACE,HEADLAMP

51850-18K20

$202.77

17

BOLT (6X12)

09103-06525

$1.49

18

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.452B(1-K-10) HEADLAMP COVER (SV650M4 E33) FIG.452C(1-K-11) HEADLAMP COVER (SV650AM4 E28) FIG.452D(1-K-12) HEADLAMP COVER (SV650AM4 E33) FIG.452E(1-K-13) HEADLAMP COVER (SV650XAM4 E28)

SPECIAL NOTE

Unavailable

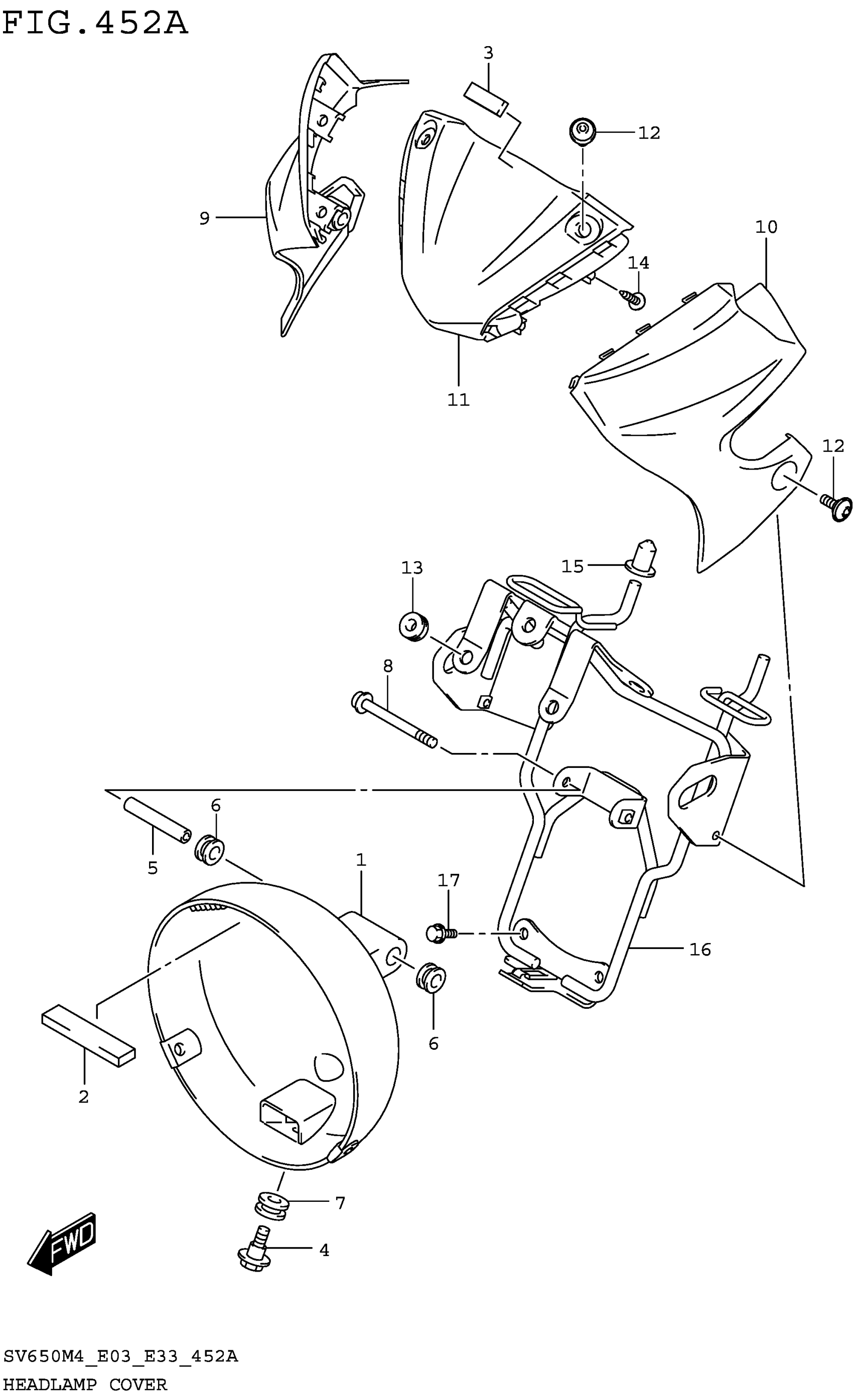

Suzuki SV650AM4(E28) (2024) HEADLAMP COVER (SV650M4 E03) Diagram
