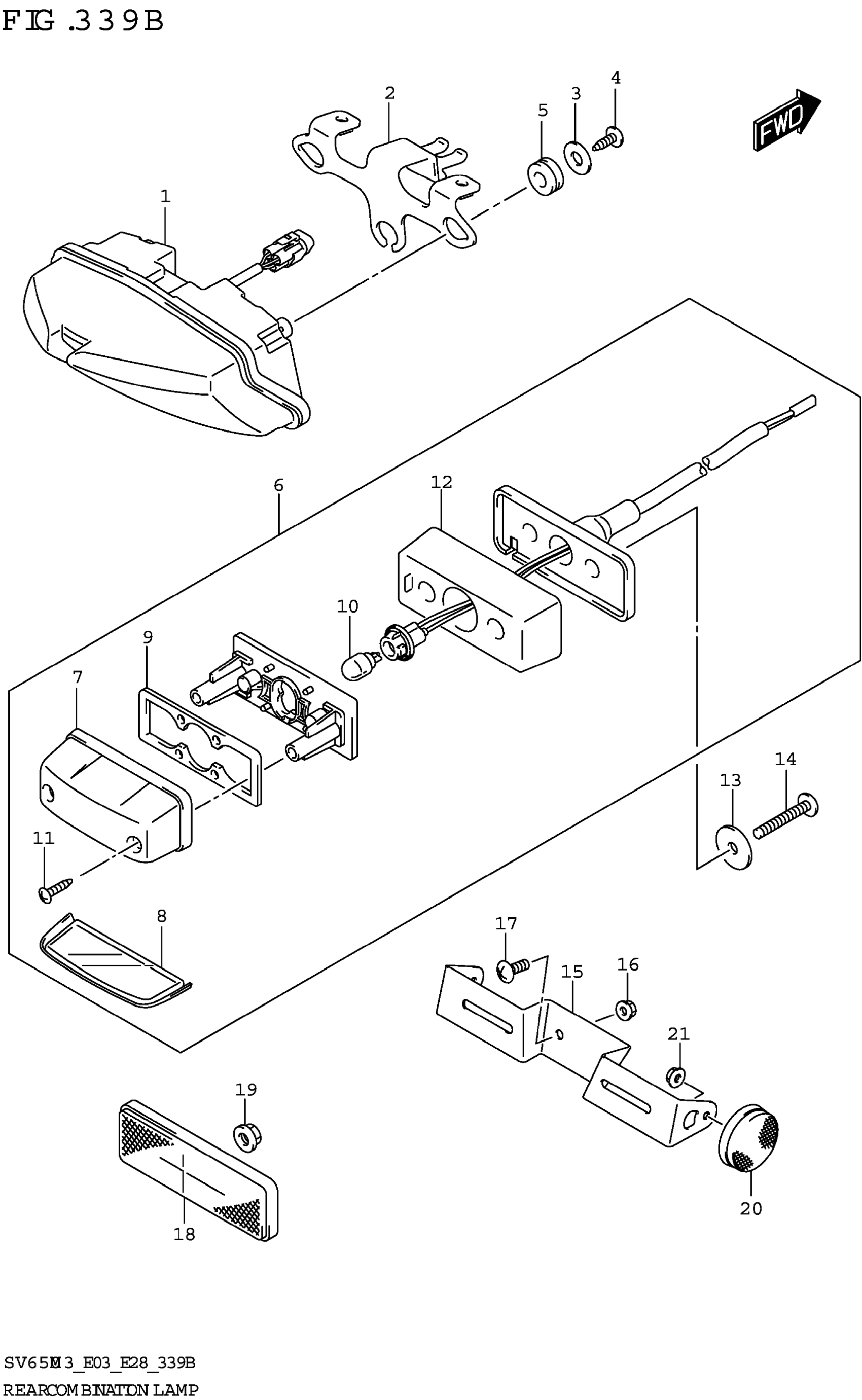

Suzuki SV650AM3 (2023) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB This part replaces 35710-14JB1.

35710-14JD0

$224.98

2

BRACKET,REAR COMB LAMP

35726-18K00

$18.78

3

WASHER (5.5X20X1.2)

09160-05501

$1.86

4

SCREW

03541-0516A

$1.37

5

CUSHION,REAR COMB BRACKET (10 | 20X10)

09320-10070

$1.85

6

LAMP ASSY,LICENSE

35910-16G31

$99.58

7

.COVER

35917-16G00

$14.00

8

.LENS

35912-16G01

$13.85

9

.GASKET

35913-16G00

Unavailable

10

.BULB (12V5W)

09471-12216

$4.84

11

.SCREW

03211-0416A

$1.43

12

.SPACER

35978-16G30

Unavailable

13

WASHER (5.5X20X1.2)

09160-05501

$1.86

14

SCREW

03541-0540A

$1.58

15

BRACKET,LICENSE PLATE

35927-44H30

$20.78

16

NUT (M6)

09159-06096

$3.42

17

SCREW

02142-0616A

$1.37

18

REFLECTOR ASSY,RR

35970-07F01

$19.11

19

NUT

08316-1005A

$2.19

20

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

21

NUT

08316-1005A

$2.19
