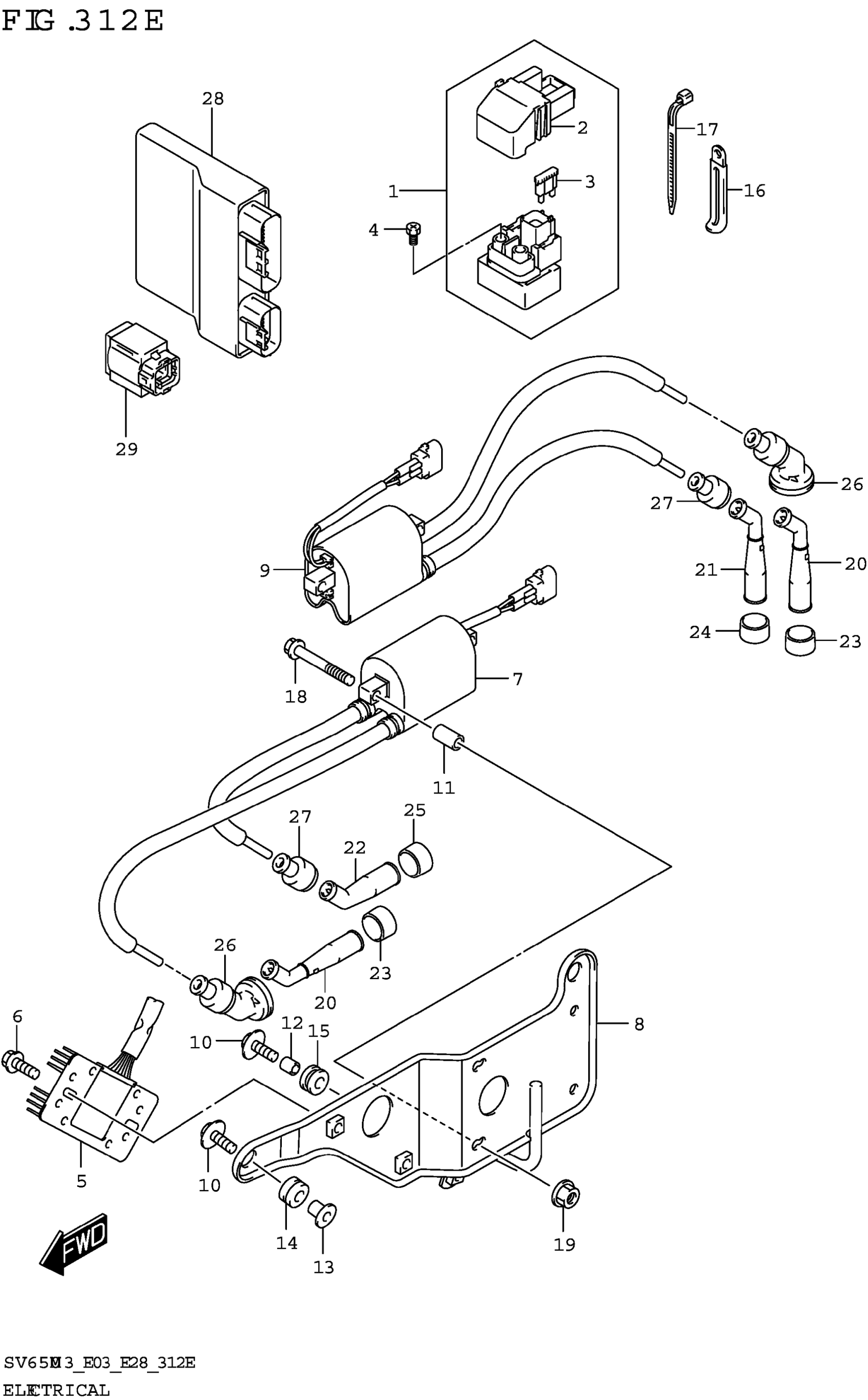

Suzuki SV650AM3 (2023) ELECTRICAL (SV650:E03) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-06G02

$61.62

2

.COVER

31861-47E00

$18.23

3

.FUSE (30A)

09481-30101

$2.28

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY

32800-47H00

$240.89

6

SCREW This part replaces 02162-0616A.

02162-0616B

$2.06

7

COIL ASSY,IGNITION FRONT

33410-18K00

$148.83

8

BRACKET,IGN COIL REAR

33414-44H01

Unavailable

9

COIL ASSY,IGNITION REAR

33420-18K00

$148.83

10

BOLT (6X20)

09116-06188

$2.25

11

SPACER (6.4X10X18)

09180-06195

$4.70

12

SPACER (6.5X9X9)

09180-06263

$1.68

13

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

14

CUSHION (8X18X10)

09320-08501

$2.95

15

CUSHION (9X18X9.5)

09320-09016

$1.97

16

CLAMP (L:80)

09404-06030

Unavailable

17

CLAMP (L:165)

09407-18402

$2.21

18

BOLT (6X40)

09103-06531

$2.58

19

NUT (6X12)

08316-1006A

$2.19

20

CAP ASSY,SPARK PLUG | CENTER

33510-17G00

$30.63

21

CAP ASSY,SPARK PLUG | SIDE

33510-17G00

$30.63

22

CAP ASSY,SPARK PLUG | SIDE

33510-20E00

$39.05

23

SEAL,SPARK PLUG | CENTER

33541-23E10

$6.17

24

SEAL,SPARK PLUG | SIDE

33541-23E10

$6.17

25

SEAL,SPARK PLUG | SIDE

33541-47D00

$7.16

26

SEAL,HIGH TENSION CORD CTR

33542-17G01

$9.17

27

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

28

CONTROL UNIT,FI

32920-18K81

$1,013.23

29

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31
