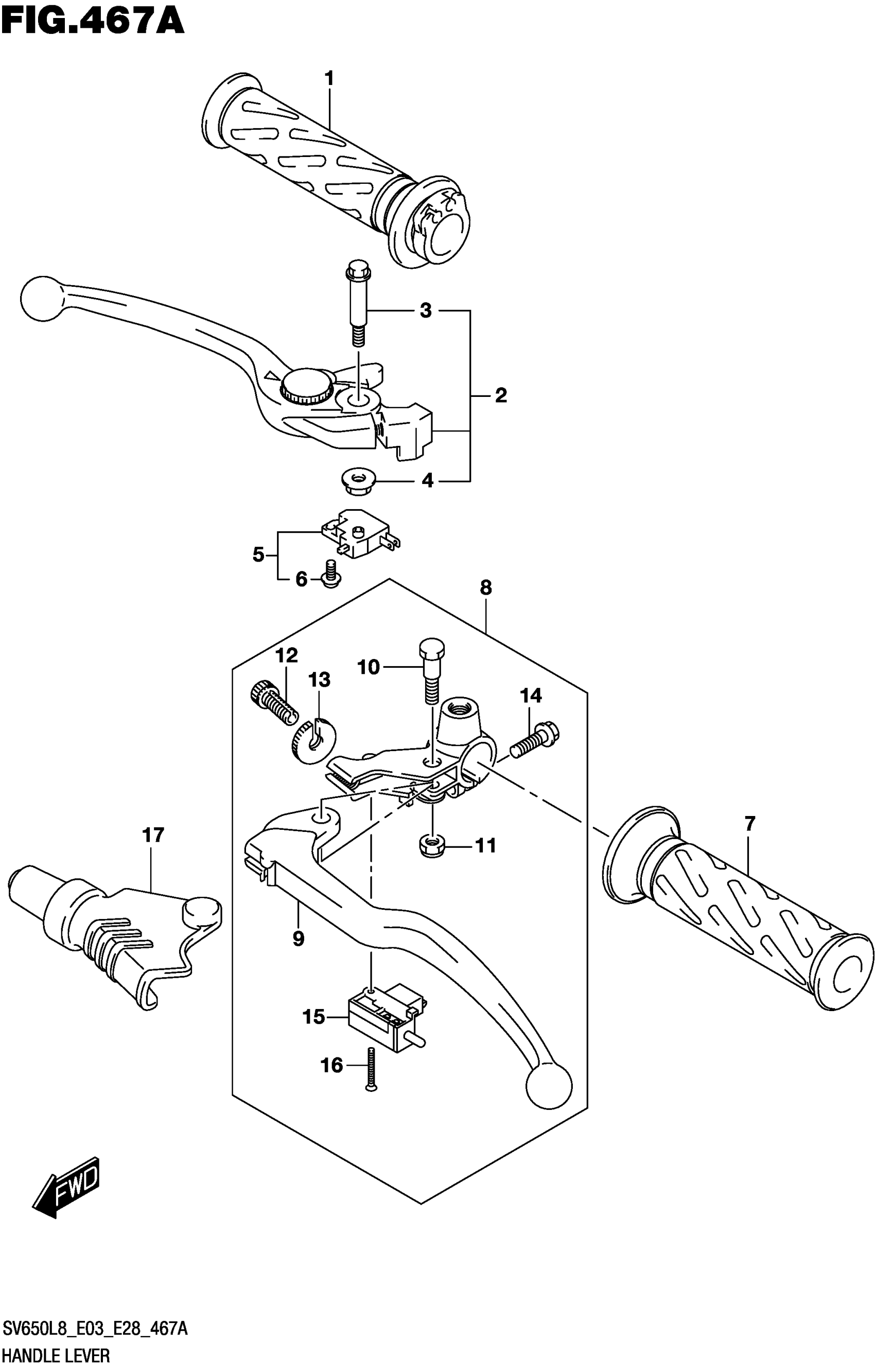

Suzuki SV650AL8 (2018) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE (BLACK)

57110-29G02-291

$28.62

2

LEVER ASSY,BRAKE

57300-44G20

$48.90

3

.BOLT,LEVER PIVOT

57431-17H02

$7.02

4

.NUT

08319-2106A

$1.97

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$36.79

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

7

GRIP LH (BLACK)

57211-22D02-291

$13.93

8

LEVER ASSY,CLUT This part replaces 57500-25D10.

57500-25D13

$66.70

9

..LEVER,CLUTCH

57621-25D10

$35.00

10

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$9.34

11

.NUT

08319-2106A

$1.97

12

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$8.67

13

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.27

14

..BOLT

01547-0620B

$2.50

15

.SWITCH,CLUTCH

57560-05A00

$11.63

16

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82

17

COVER,CLUTCH LEVER This part replaces 57661-33E00.

57661-33E01

$8.11
