Description

Price

1-1

WHEEL,FRONT (RED) | (RED) FOR YVB This part replaces 54111-18K00-QGY.

54111-18K10-QGY

$628.43

1-2

WHEEL,FRONT | (BLACK) FOR YKV,AGQ This part replaces 54111-18K00-019.

54111-18K10-019

$597.40

2

SPACER,FR HUB BEARING

54731-44H00

$28.05

3-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$9.70

3-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$11.37

3-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$12.93

4

SEAL,OIL (22X40X7)

09285-22004

$5.51

5

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

6

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

7

TIRE,FRONT (120/70ZR17 M/C 58 | (120/70ZR17 M/C 58W) SPORTMAX ROADSMART3 DUNLOP This part replaces 55110-18K00.

55110-18K02

$243.88

8

AXLE,FR

54711-08F00

$117.03

9

SPACER,FR AXLE,L

54751-44H00

$19.23

10

DISC,FR BRAKE

59210-38G10

$472.48

11

BOLT (8X21)

09106-08160

$3.22

12

RING,SPEED SENSOR FR (50T)

54162-44H00

$26.80

13

BOLT

07130-0512A

$2.19

14

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR:AGQ=YWW(WHITE)/YSF(BLUE)

SPECIAL NOTE

Unavailable

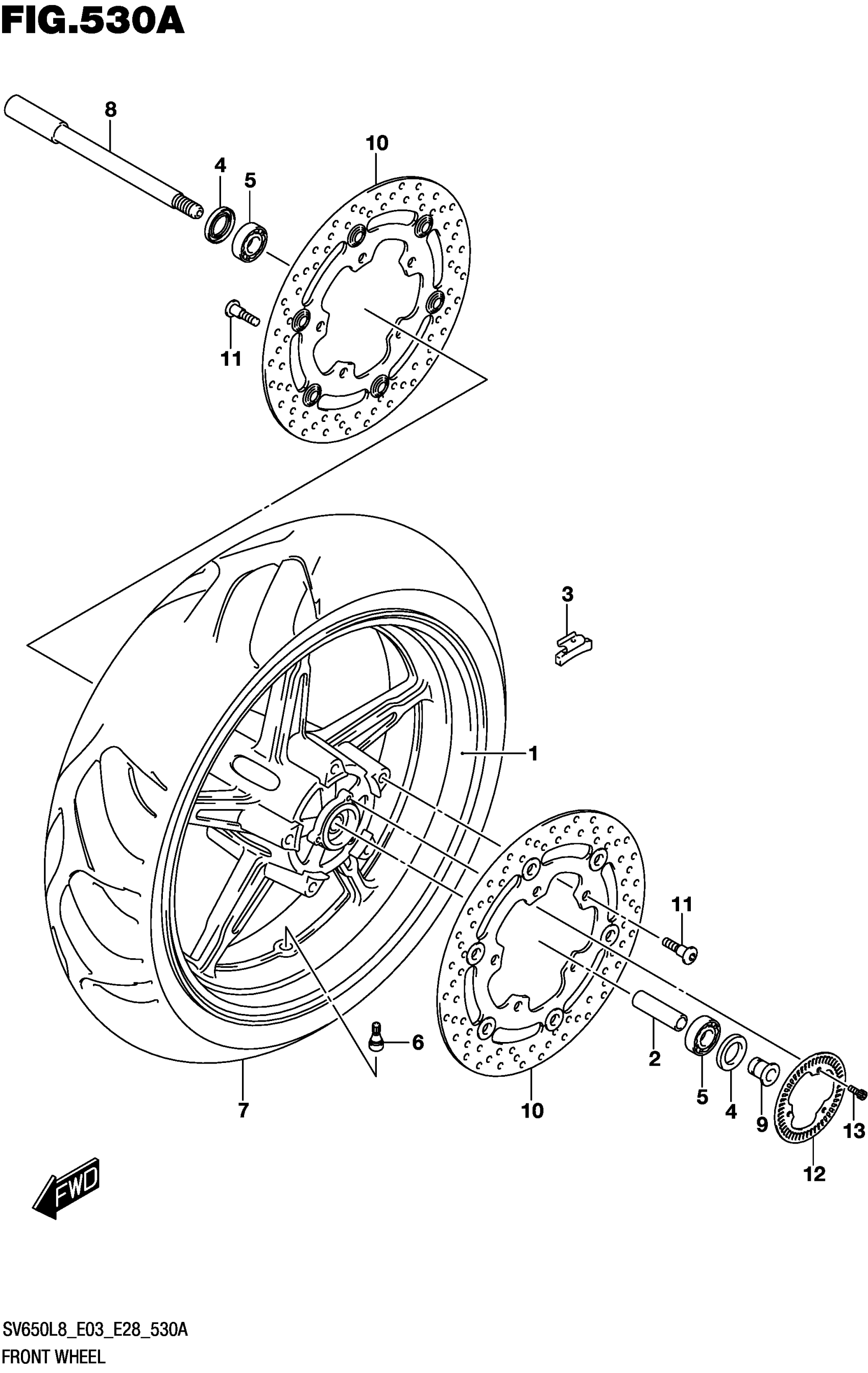

Suzuki SV650AL8 (2018) FRONT WHEEL Diagram
