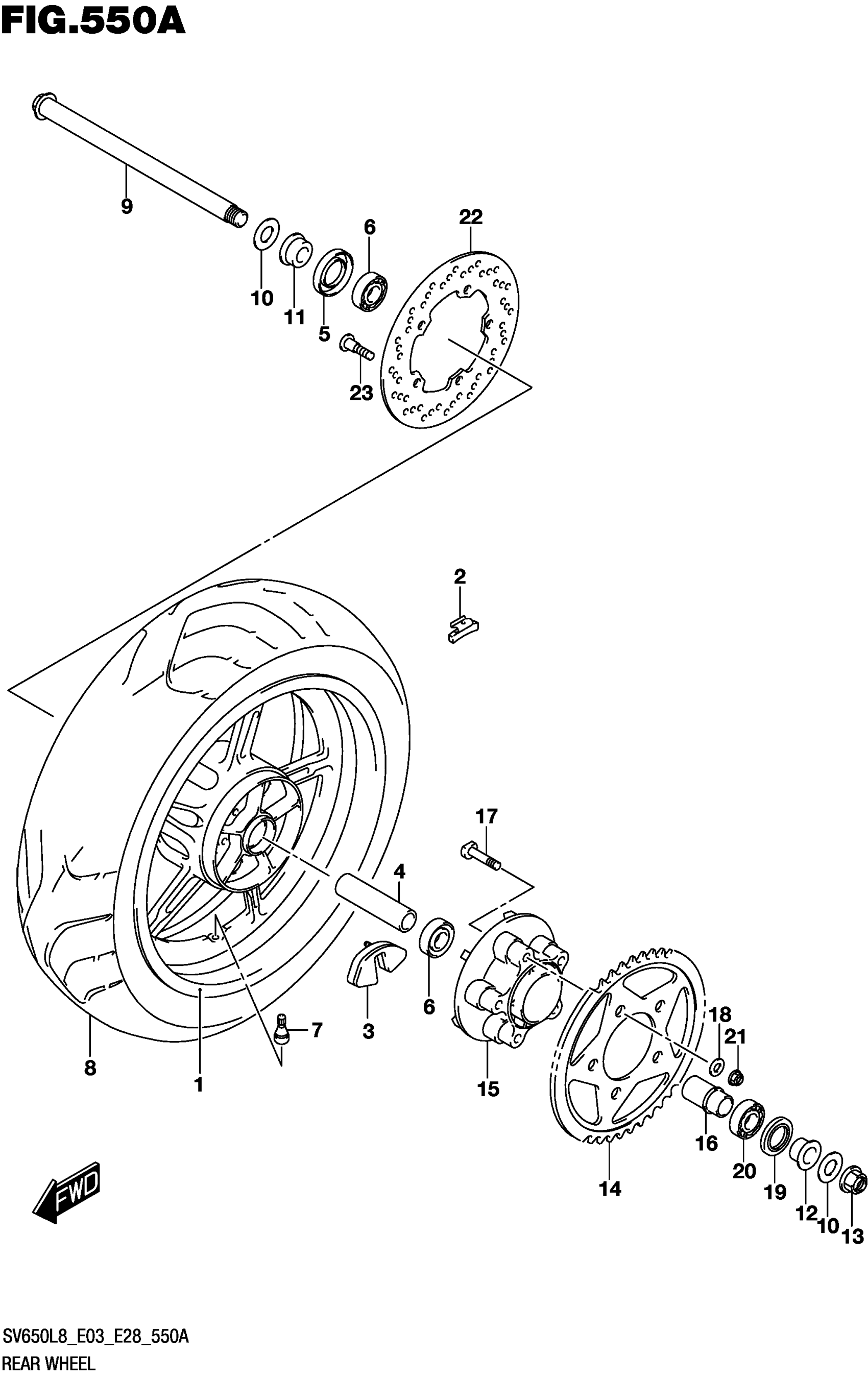

Suzuki SV650AL8 (2018) REAR WHEEL (SV650L8 E03) Diagram

#

Description
Price

1-1

WHEEL, REAR (17M/CXMT5.0) | (RED) FOR YVB

64111-44H00-QGY

$958.07

1-2

WHEEL, REAR (17M/CXMT5.0) | (BLACK) FOR YKV,AGQ

64111-44H00-019

Unavailable

2-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$9.70

2-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$11.37

2-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$12.93

3

ABSORBER,RR HUB SHOCK

64651-27A01

$8.95

4

SPACER (20.5X28X88)

09180-20062

$20.80

5

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.27

6

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

7

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

8

TIRE,REAR (160/60ZR17 M/C 69W | (160/60ZR17 M/C 69W) SPORTMAX ROADSMART3 DUNLOP This part replaces 65110-18K00.

65110-18K02

$260.17

9

AXLE,REAR

64711-17E40

$145.58

10

WASHER,RR AXLE

64723-44H00

$5.83

11

SPACER,RR AXLE,R

64741-22D00

$26.12

12

SPACER,RR AXLE,L

64751-44H00

$41.85

13

NUT

09159-20013

$35.85

14

SPROCKET,RR (46T-520)

64511-44H20

$91.43

15

DRUM,REAR SPROCKET MTG

64611-19F10

Unavailable

16

RETAINER,RR HUB BEARING

64733-27A00

$30.40

17

BOLT (10X47)

09119-10043

$3.90

18

WASHER (10.5X22X2.3)

09160-10039

$2.24

19

SEAL,OIL (35X62X8)

09285-35001

$9.33

20

BEARING (25X62X17)

09262-25073

$23.39

21

NUT

08319-3110A

$2.73

22

DISC,RR BRAKE

69211-38G00

$337.60

23

BOLT (8X21)

09106-08160

$3.22

24

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR:AGQ=YWW(WHITE)/YSF(BLUE)

SPECIAL NOTE

Unavailable
