2018 Suzuki SV650AL8 Evap System Diagram

← All diagrams

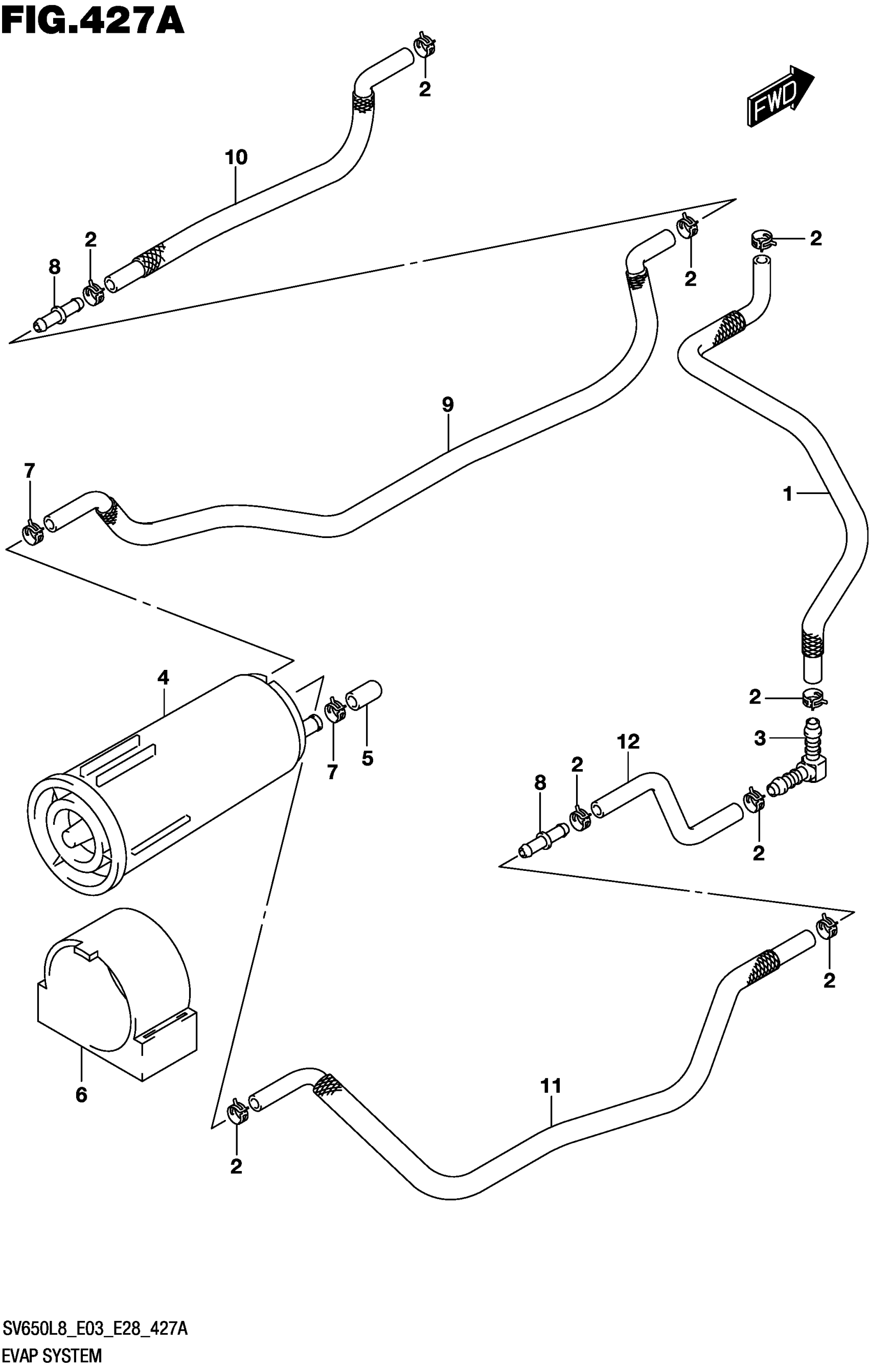

Find the part on the Evap System diagram for your 2018 Suzuki SV650AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki SV650AL8 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE,TANK & BREATHER VALVE

44434-18K00

1
Out of stock

2

CLIP (ID:11,H:8)

09401-11413

9
Out of stock

3

JOINT,HOSE

09367-06011

1
Out of stock

4

CANISTER

17210-15H10

1
Out of stock

5

CAP (OD:11.5)

09251-07003

1
Out of stock

6

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

1
Out of stock

7

CLIP (ID:12)

09401-12404

2
Out of stock

8

JOINT

09367-06009

2
Out of stock

9

HOSE,PURGE NO.1

18563-18K00

1
Out of stock

10

HOSE,PURGE NO.2

18564-18K00

1
Out of stock

11

HOSE,SURGE NO.2

18562-18K00

1
Out of stock

12

HOSE,SURGE NO.1

18561-18K00

1
Out of stock
