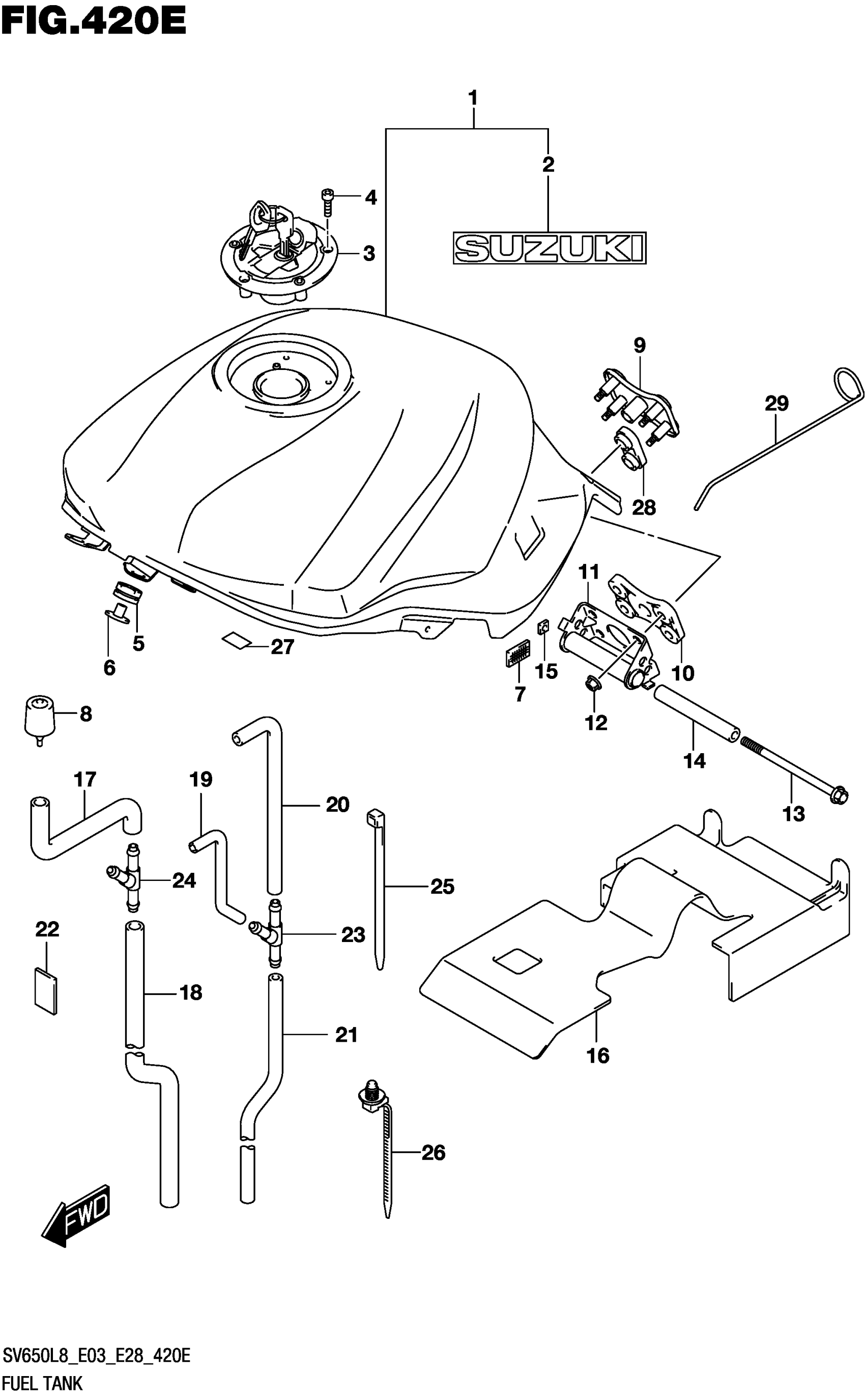

Suzuki SV650AL8 (2018) FUEL TANK (SV650AL8 E28) (FOR YVB,YKV) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLACK) This part replaces 44100-18K60-YVB.

44100-18K61-YVB

$1,030.40

1-2

TANK ASSY,FUEL This part replaces 44100-18K70-YKV.

44100-18K71-YKV

$1,003.02

2-1

.EMBLEM (GRAY) | FOR YVB

68111-47C10-YLF

$17.33

2-2

.EMBLEM, "SUZUKI" (BLACK) | FOR YKV

68111-47C20-KGL

$22.65

3

CAP SET,FUEL TANK FILLER

44200-17820

$242.68

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

5

CUSHION,FUEL TANK FRONT

44511-18K00

$7.30

6

SPACER,FUEL TANK FRONT

44512-04K00

$7.97

7

FASTENER (33X25X2.6)

44572-13G00

$10.13

8

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.27

9

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

10

CUSHION,FUEL TANK RR LWR

44542-18K00

$20.25

11

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

12

NUT

08319-3106A

$2.01

13

BOLT (6X100)

09103-06060

$2.61

14

SPACER,FUEL TANK

44561-35F00

$13.06

15

NUT

08318-1106A

Unavailable

16

SHEET,HEAT SHIELD RUBBER

44191-18K00

$64.62

17

HOSE, FUEL TANK DRAIN NO.1

44423-18K00

Unavailable

18

HOSE, FUEL TANK DRAIN NO.2

44423-18K10

Unavailable

19

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$15.48

20

HOSE, FUEL TANK BREATHER NO.1

44424-18K01

Unavailable

21

HOSE, FUEL TANK BREATHER NO.2

44424-18K10

Unavailable

22

SHIELD,DRAIN HOSE HEAT

44427-18K00

Unavailable

23

3 WAY

09367-06007

$3.17

24

JOINT,DRAIN HOSE

09367-08010

Unavailable

25

CLAMP (L:145)

09407-14407

$2.80

26

CLAMP (L:170)

09407-17403

$4.63

27

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.42

28

CUSHION,FUEL TANK RR UPR

44541-18K00

Unavailable

29

STAY, FUEL TANK | OPT

44560-23H00

$50.73
