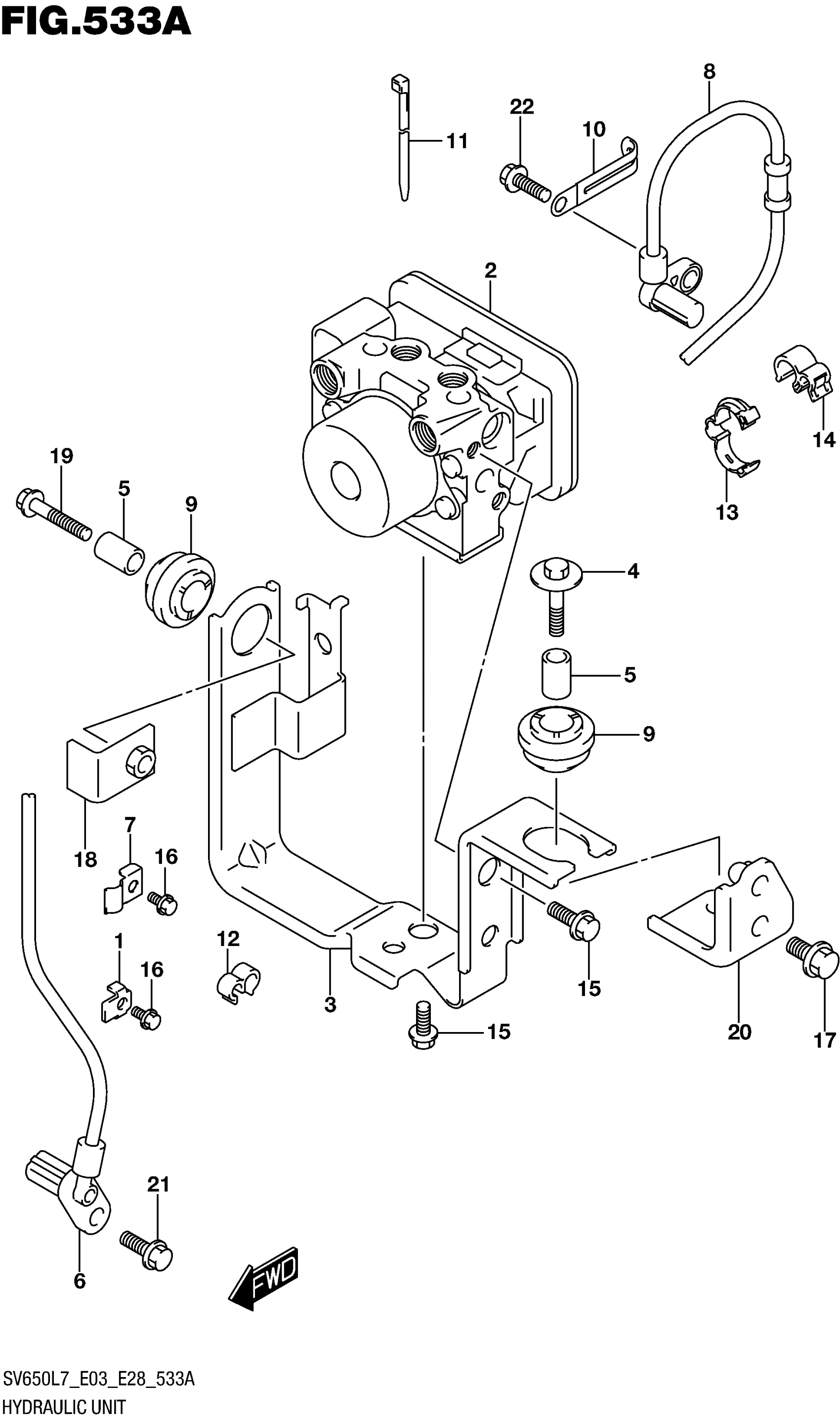

Suzuki SV650AL7 (2017) HYDRAULIC UNIT (SV650AL7 E28) Diagram

#

Description
Price

1

GUIDE, SENSOR LEAD

34938-14F00

$7.12

2

UNIT ASSY, HYDRAULIC ABS

55610-18K00

$1,442.27

3

HOLDER, HYDR UNIT

55660-18K00

Unavailable

4

BOLT (6X26.5)

09116-06510

Unavailable

5

SPACER, HYDR UNIT MTG

55662-10G00

Unavailable

6

SENSOR, FR WHEEL SPEED

55710-18K00

$247.32

7

CLAMP, SENSOR LEAD FR NO.3

55733-44H00

Unavailable

8

SENSOR, RR WHEEL ABS

65710-18K00

$110.06

9

RUBBER

09320-10066

$5.23

10

CLAMP (L:45)

09404-06429

$1.82

11

CLAMP (L:145)

09407-14407

$2.80

12

CLIP

09408-00101

$3.40

13

CLAMP

09408-00259

Unavailable

14

CLAMP

09408-00266

$2.69

15

BOLT

01547-0612B

$1.22

16

BOLT

01547-0612A

$2.01

17

BOLT

01550-0612B

$2.38

18

NUT,RUBBER UNIT MTG

55680-18K00

$6.95

19

BOLT

01547-0630B

$2.73

20

BRACKET,ABS UNIT HOLDER

55670-18K00

$20.58

21

BOLT

01547-0616B

$2.43

22

BOLT

01547-0616A

$2.01
