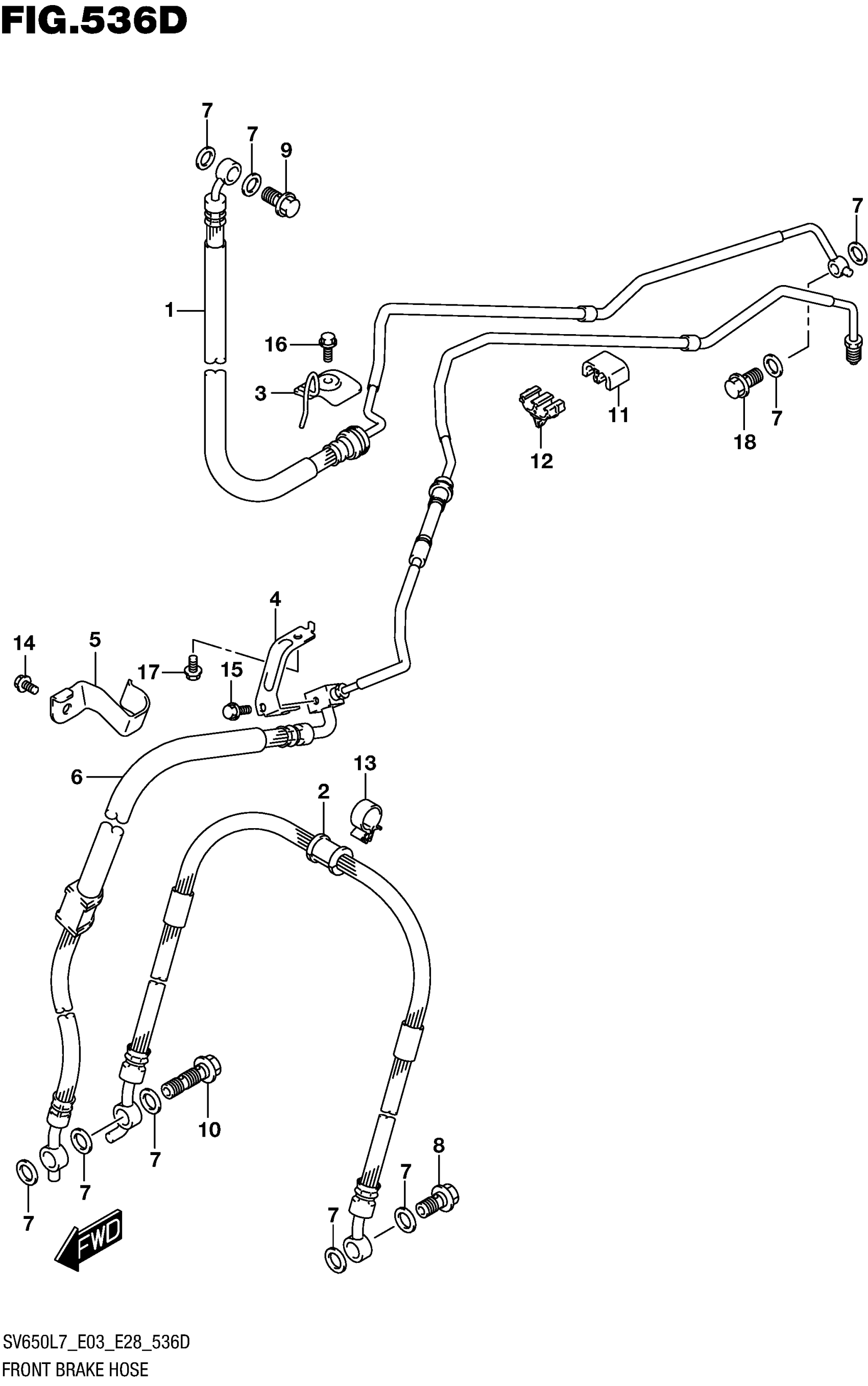

Suzuki SV650AL7 (2017) FRONT BRAKE HOSE (SV650AL7 E33) Diagram

#

Description
Price

1

HOSE ASSY, FR MASTER TO UNIT

59200-18K00

$137.38

2

HOSE, FR CLPR TO CLPR

59240-18K00

Unavailable

3

CLAMP,FR BK HOSE ASSY NO.1

59251-18K00

$15.73

4

CLAMP,FR BK HOSE ASSY NO.2

59261-18K00

$9.67

5

CLAMP, FR BRAKE HOSE NO.2

59263-44H10

$11.17

6

HOSE ASSY, UNIT TO FR CLPR

59400-18K00

$243.82

7

WASHER (10X15X1.5)

09161-10009

$1.83

8

UNION

09360-10062

$5.81

9

UNION

09360-10062

$5.81

10

UNION

09360-10064

$5.81

11

CLAMP

09403-06324

Unavailable

12

CLAMP

09403-07334

Unavailable

13

CLAMP

09403-16412

$3.08

14

BOLT

01547-0612A

$2.01

15

BOLT

01547-0616A

$2.01

16

BOLT

01547-0616A

$2.01

17

BOLT

01550-0612A

$1.97

18

UNION

09360-10062

$5.81
