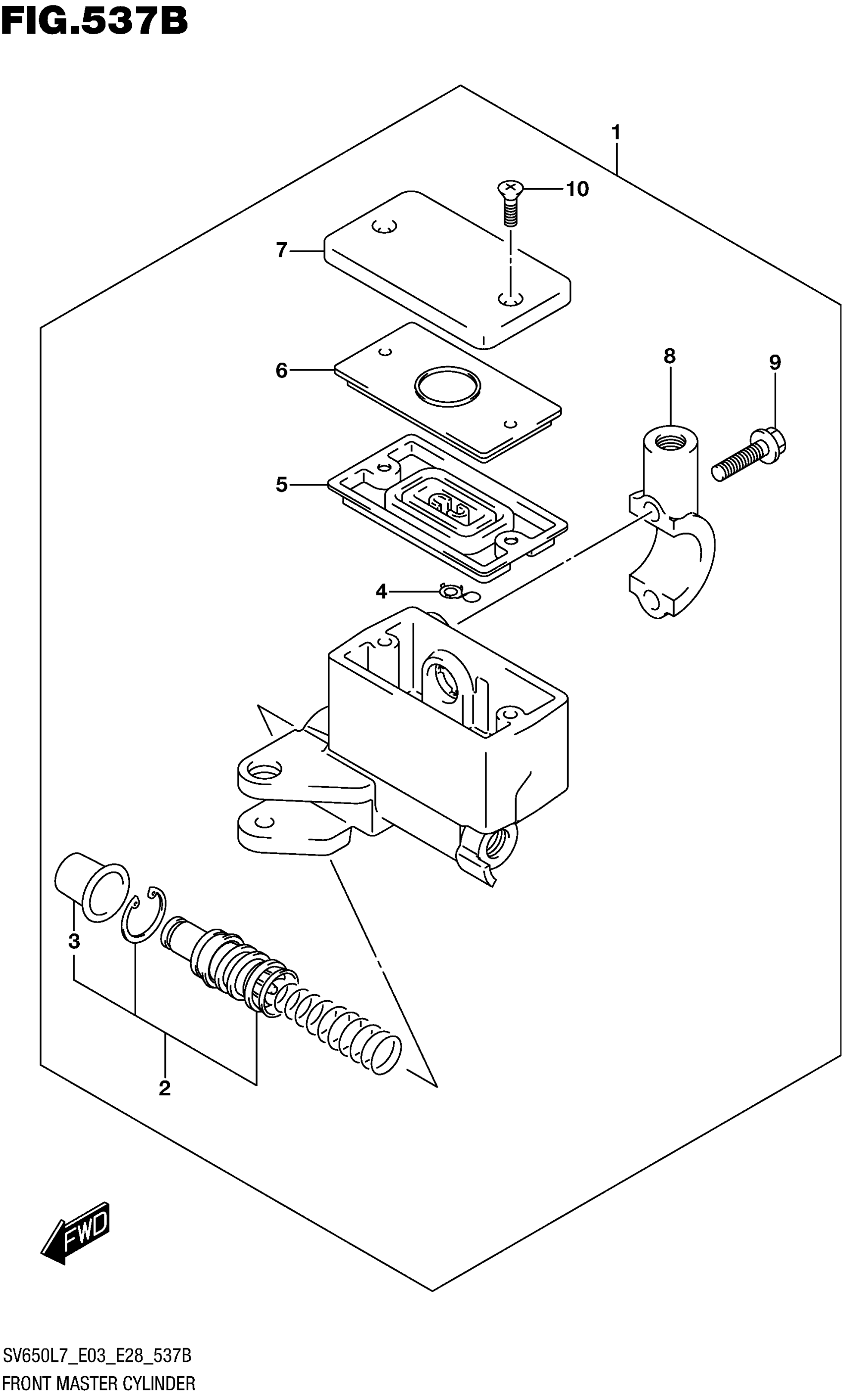

Suzuki SV650AL7 (2017) FRONT MASTER CYLINDER (SV650L7 E33) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10G60

$336.50

2

.PISTON & CUP SET

59600-45850

$38.85

3

..BOOT

59666-44300

$5.54

4

.PROTECTOR

59664-32F00

$13.20

5

.DIAPHRAGM

59667-49460

$9.36

6

.PLATE, DIAPHRAGM

59668-41C00

$8.92

7

.CAP

59669-10G20

$64.72

8

.HOLDER

59671-32F00

$18.68

9

.BOLT (6X22)

59675-02FA0

$3.66

10

.SCREW, RESERVOIR CAP

69689-49300

$1.81
