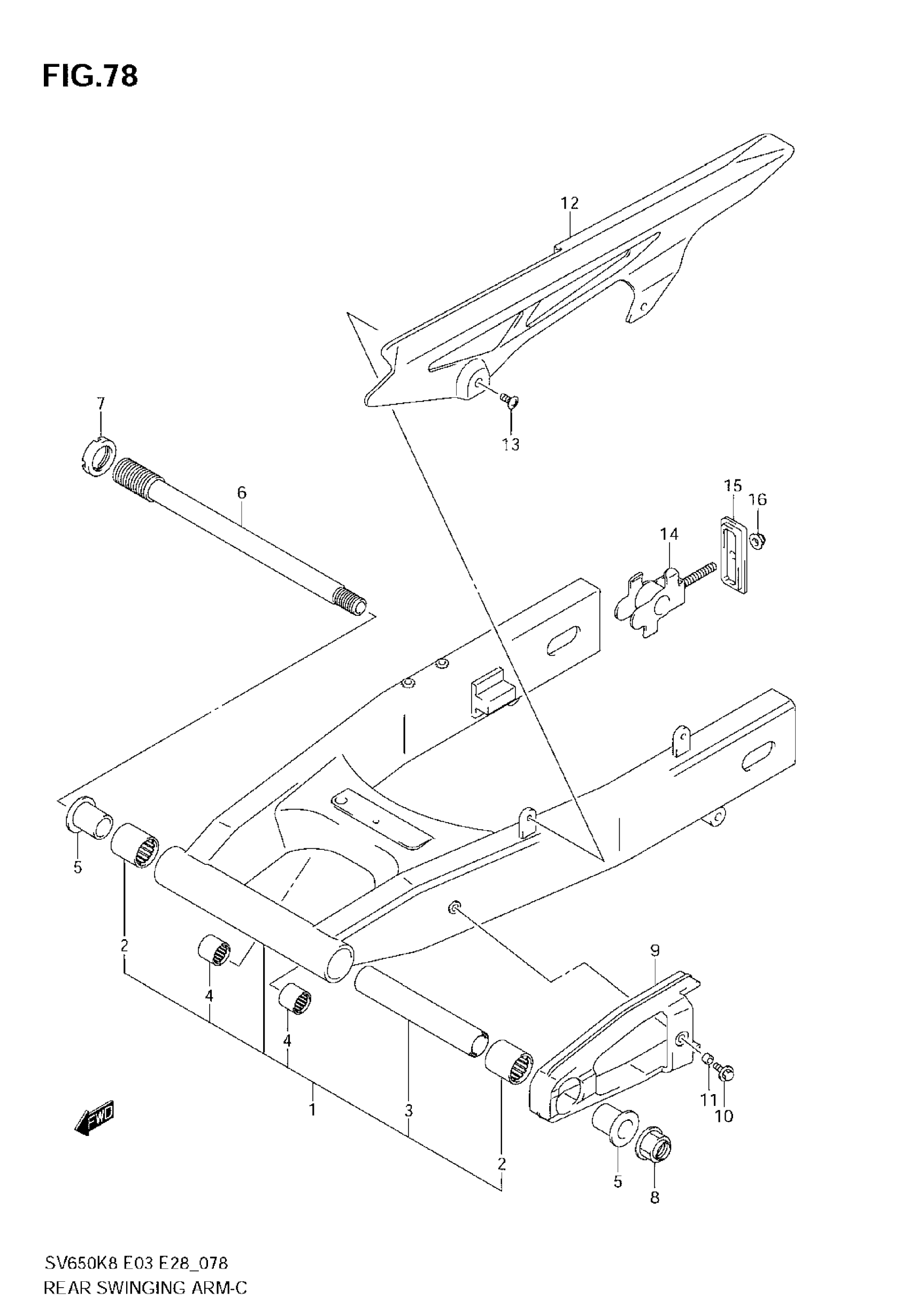

Suzuki SV650 (2008) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | SV650K8

61000-17G40-YAP

Unavailable

1

SWINGING ARM ASSY, REAR | SV650SK8

61000-17G50-YAP

Unavailable

1

SWINGING ARM ASSY, REAR | SV650AK8/SAK8; Includes Item(s) 2 - 4

61000-17G60-YAP

Unavailable

2

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$28.89

3

SPACER, CENTER

09180-20113

Unavailable

4

.BEARING This part replaces 09263-17039.

09263-17058

$15.30

5

SPACER,PIVOT BEARING

61251-31E00

$66.87

6

SHAFT, PIVOT

61211-17G00

Unavailable

7

NUT, RR SWGARM PIVOT BOLT This part replaces 61214-19F00.

61214-19F10

$24.17

8

NUT

08319-3118A

$26.62

9

BUFFER,CHAIN This part replaces 61273-17G00.

61273-17G01

$37.93

10

BOLT

09116-06152

$2.21

11

SPACER

09180-06306

$2.13

12

CASE, CHAIN

61310-19F00

$110.52

13

SCREW

09139-06083

$2.31

14

ADJUSTER, CHAIN, R

61410-17G00

$34.48

15

GUIDE, CHAIN ADJUSTER

61421-17G00

$27.60

16

NUT

08319-3108A

$2.38
