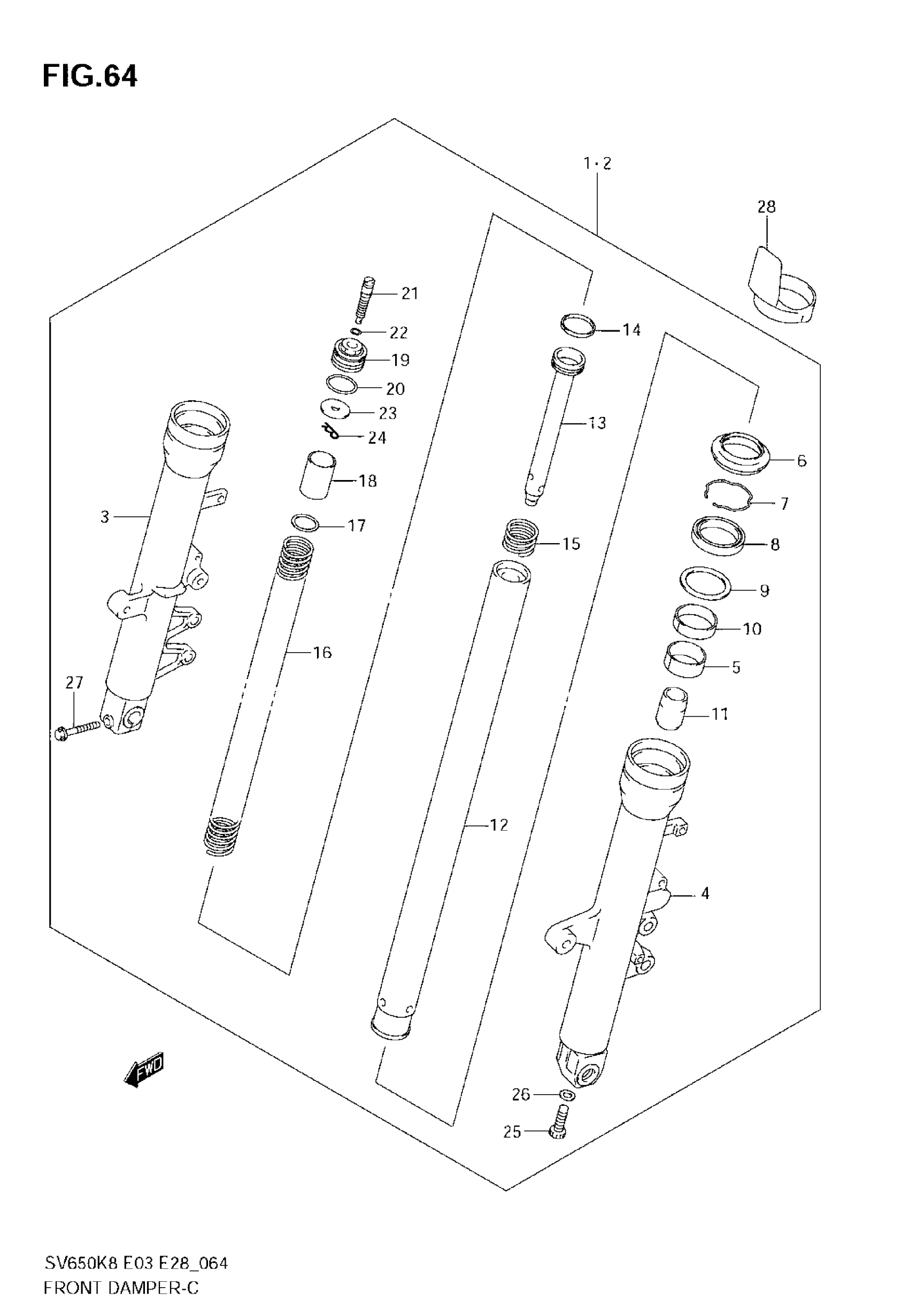

Suzuki SV650 (2008) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH | SV650K8 This part replaces 51103-17GA0.

51103-17G00

Unavailable

1

DAMPER ASSY, FRONT FORK RH | SV650AK8/SAK8

51103-17GB0

Unavailable

1

DAMPER ASSY, FRONT FORK RH | SV650SK8

51103-17GC0

Unavailable

2

DAMPER ASSY, FRONT FORK LH | SV650K8 This part replaces 51104-17GA0.

51104-17G00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | SV650AK8/SAK8

51104-17GB0

Unavailable

2

DAMPER ASSY, FRONT FORK LH | SV650SK8; Includes Item(s) 3 - 27

51104-17GC0

Unavailable

3

TUBE, OUTER RH | SV650K8/SK8

51130-17GA0

Unavailable

3

TUBE, OUTER RH | SV650AK8/SAK8

51130-17GB0

Unavailable

4

TUBE, OUTER LH | SV650K8/SK8

51140-17GA0

Unavailable

4

TUBE, OUTER LH | SV650AK8/SAK8

51140-17GB0

$604.53

5

BUSH, SLIDE

51121-42E00

$16.77

6

SEAL, DUST | SV650K8/SK8

51571-47D50

$20.05

6

SEAL, DUST | SV650AK8/SAK8

51173-01H00

$10.66

7

RING, STOPPER

51556-38B00

$6.61

8

SEAL, OIL | SV650K8/SK8

51153-08D00

$21.02

8

SEAL, OLIL | SV650AK8/SAK8

51153-01H00

$24.63

9

SPACER, SEAL | SV650K8/SK8

51168-38B00

$6.12

9

SPACER, SEAL | SV650AK8/SAK8

51168-17G80

$7.23

10

BUSH, GUIDE

51152-17G00

$13.43

11

PIECE, OIL LOCK

51195-48B31

$34.12

12

TUBE, INNER | SV650K8/SK8

51110-17G00

$503.37

12

TUBE, INNER | SV650AK8/SAK8

51110-17G80

$397.78

13

CYLINDER | SV650K8

51146-17G00

Unavailable

13

CYLINDER | SV650SK8

51146-17G20

Unavailable

13

.CYLINDER | SV650AK8/SAK8

51146-17G80

$97.40

14

RING, PISTON

51196-12C00

$9.50

15

SPRING, REBOUND | SV650AK8/SAK8

51177-12C00

Unavailable

15

SPRING, REBOUND | SV650SK8

51177-17G50

Unavailable

16

SPRING, FRONT | SV650K8

51171-17G00

Unavailable

16

SPRING, FRONT | SV650SK8

51171-17G20

Unavailable

16

SPRING, FRONT | SV650AK8/SAK8

51171-17G80

Unavailable

17

JOINT, SPRING

51192-19C00

$5.65

18

COLLAR, SPRING | SV650K8/AK8/SAK8

51176-12C10

$15.70

18

COLLAR, SPRING | SV650SK8

51176-17G50

Unavailable

19

.BOLT,FORK

51189-12C00

Unavailable

20

.O-RING

51117-12C00

$3.66

21

.ADJUSTER BOLT,SPRING

51185-17G00

Unavailable

22

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

23

SEAT, SPRING

51186-12C00

$8.52

24

PIN, SEAT SPRING

51188-32B00

Unavailable

25

BOLT

51147-48130

$3.97

26

GASKET

51148-36011

$3.26

27

BOLT | RH

51328-03FK0

$7.52

28

PROTECTOR

51201-32F00

$19.72
