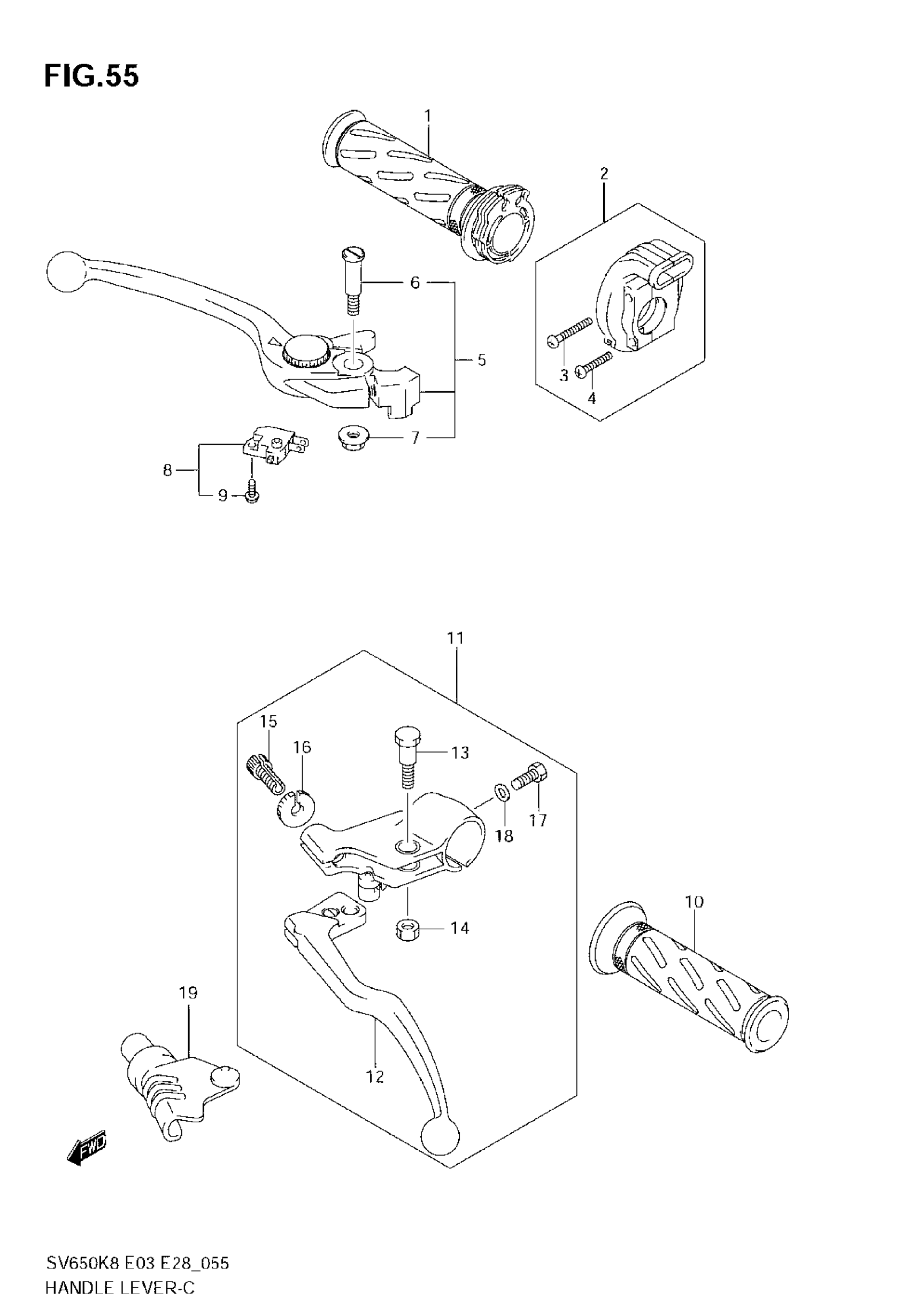

Suzuki SV650 (2008) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE | SV650/A This part replaces 57110-46E01.

57110-46E02

$26.60

1

GRIP,THROTTLE | SV650S/SA This part replaces 57110-45D02.

57110-45D03

$24.90

2

CASE ASSY THROTTLE | SV650S/SA; Includes Item(s) 3 - 4

57100-14D00

$93.58

3

SCREW | SV650S/SA

09125-05066

$1.52

4

SCREW | SV650S/SA

02112-0520B

$1.86

5

LEVER ASSY, BRAKE | SV650/S

57300-44G00

$74.32

5

LEVER ASSY, FRONT BRAKE | SV650A/SA; Includes Item(s) 6 - 7 This part replaces 57300-10G20.

57300-10G32

$39.24

6

BOLT, PIVOT

57431-14G00

$19.62

7

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

8

SWITCH ASSY,FR BRAKE | Includes Item(s) 9 This part replaces 57460-17C11.

57460-14J02

$35.21

9

SCREW

57465-17C00

$2.37

10

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$13.32

11

LEVER ASSY,CLUT | SV650/A This part replaces 57500-10D01.

57500-10D31

$41.21

11

LEVER ASSY,CLUT | SV650S/SA; Includes Item(s) 12 - 18 This part replaces 57500-10D80.

57500-10DA1

$42.43

12

LEVER

57620-27A31

$20.25

13

BOLT, PIVOT

57531-14A00

$7.03

14

NUT

08319-2106B

$2.31

15

ADJUSTER, CABLE

57441-11010

$5.14

16

NUT, ADJUSTER

57442-11010

$2.80

17

BOLT

01500-0620B

$2.35

18

WASHER

08322-0106B

$2.24

19

COVER,CLUTCH LE This part replaces 57661-45C00.

57661-45C01

$7.47
