2002 Suzuki SV650 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2002 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

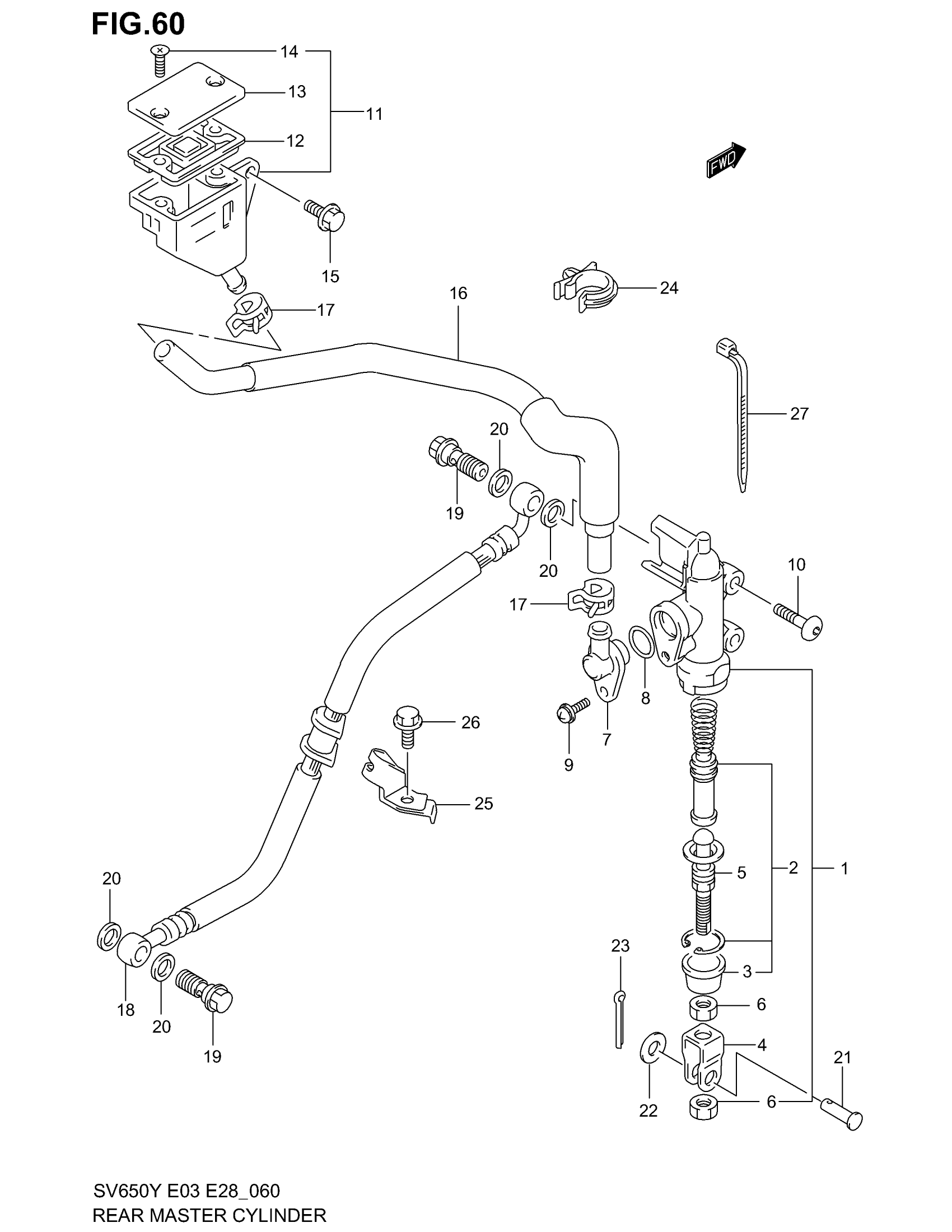

2002 Suzuki SV650 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-33C00

1
Out of stock

2

1

$32.18

In stock

3

.BOOT

69691-00A00

1
Out of stock

4

YOKE

69692-27A30

1
Out of stock

5

ROD, PUSH

69670-48B00

1
Out of stock

6

NUT

69693-05A00

2
Out of stock

7

CONNECTOR

69672-05A00

1
Out of stock

8

O RING

69686-34200

1
Out of stock

9

.SCREW This part replaces 02112-74123.

02112-7412A

1
Out of stock

10

SCREW (6X20)

09139-06028

2

$3.58

In stock

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 14

69740-19F00

1
Out of stock

12

DIAPHRAGM

59667-04700

1
Out of stock

13

CAP

59669-05D00

1
Out of stock

14

SCREW

69689-04A00

2
Out of stock

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

16

HOSE, RESERVOIR TANK | SV650X/Y/K1/K2

69730-19F10

1
Out of stock

16

HOSE, RESERVOIR TANK | SV650SX/SY/SK1/SK2

69730-19F00

1
Out of stock

17

CLIP

09401-13417

2
Out of stock

18

HOSE,RR BRAKE | SV650X/Y/K1/K2 This part replaces 69480-19F10.

69480-19F12

1
Out of stock

18

HOSE,REAR BRAKE | SV650SX/SY/SK1/SK2 This part replaces 69480-19F00.

69480-19F01

1
Out of stock

19

2

$6.33

In stock

20

WASHER (10X15X1.5)

09161-10009

4
Out of stock

21

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

1
Out of stock

22

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

23

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

24

CLAMP

09403-16307

1

$2.77

In stock

25

CLAMP, REAR BRAKE HOSE

69268-19F00

1
Out of stock

26

BOLT This part replaces 01547-06163.

01547-0616B

1
Out of stock

27

CLAMP

09407-18402

1
Out of stock
