2002 Suzuki SV650 Rear Cylinder Head Diagram

← All diagrams

Find the part on the Rear Cylinder Head diagram for your 2002 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

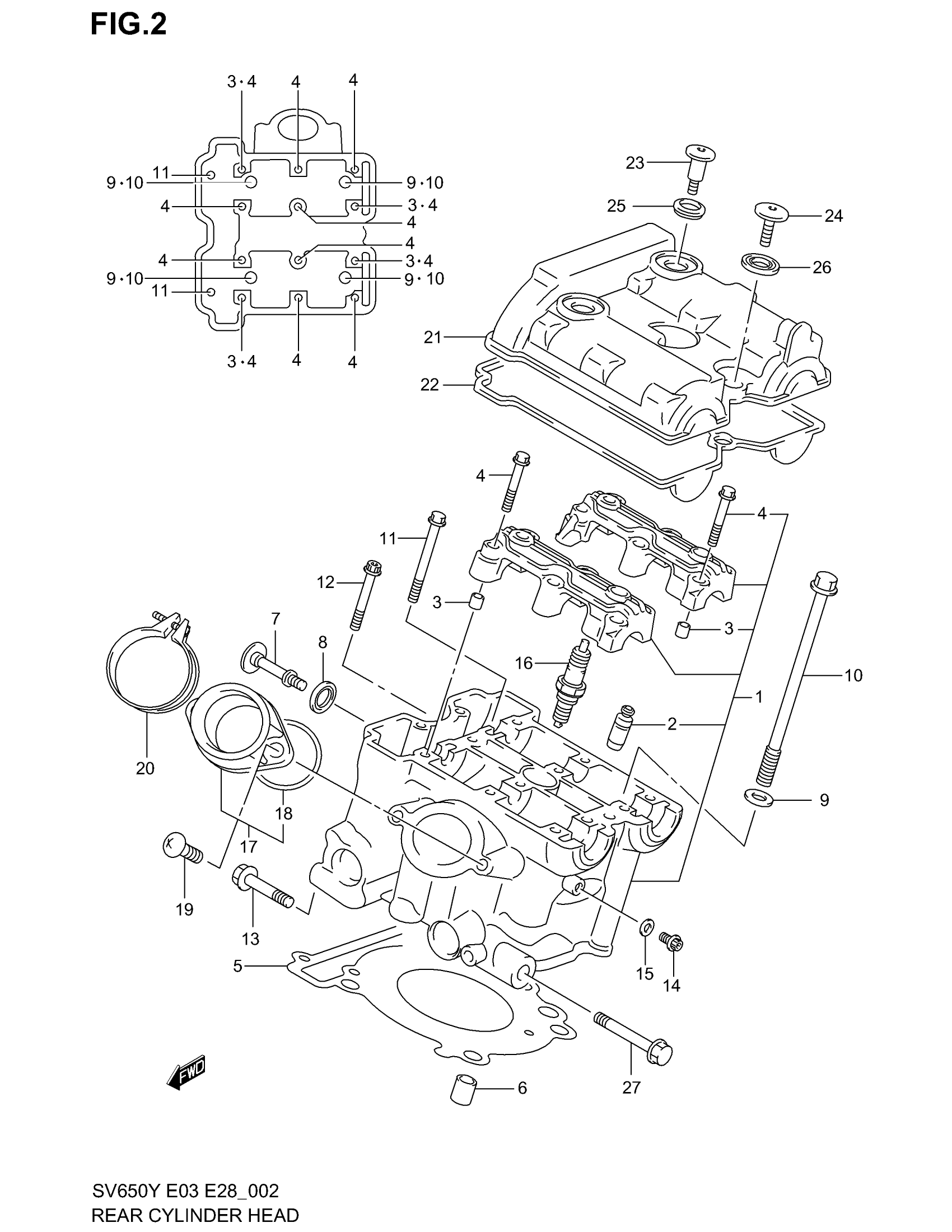

2002 Suzuki SV650 Rear Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLIN | MODEL X/Y This part replaces 11103-20F00.

11103-20F01

1
Out of stock

1

HEAD ASSY, CYLINDER REAR | MODEL K1 This part replaces 11103-20F20.

11103-20F21

1
Out of stock

1

HEAD ASSY, CYLINDER REAR | MODEL K2

11103-20F21

1
Out of stock

1

HEAD ASSY,CYLIN | MODEL X/Y E33 This part replaces 11103-20F10.

11103-20F11

1
Out of stock

1

HEAD ASSY, CYLINDER REAR | MODEL K1 E33

11103-20F30

1
Out of stock

1

HEAD ASSY, CYLINDER REAR | MODEL K2 E33; Includes Item(s) 2 - 4

11103-20F31

1
Out of stock

2

GUIDE, VALVE

11115-18D72

4
Out of stock

3

PIN (6.2X8X11)

09206-08001

4
Out of stock

4

BOLT (6X39)

09103-06026

12
Out of stock

5

.GASKET,CYLINDER HEAD

11141-20F00

1
Out of stock

6

PIN

04211-13189

2
Out of stock

7

1

$10.16

In stock

8

1

$4.52

In stock

9

WASHER (10.5X19X2.0)

09160-10082

4
Out of stock

10

BOLT (10X160)

09103-10272

4

$15.12

In stock

11

BOLT (6X70)

09103-06103

2
Out of stock

12

1

$3.26

In stock

13

BOLT

01550-10557

1

$3.86

In stock

14

1

$3.00

In stock

15

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

16

SPARK PLUG (NGK,CR8E)

09482-00456

1

$6.43

In stock

16

1

$6.03

In stock

16

1

$6.17

In stock

16

1

$6.03

In stock

16

1

$6.17

In stock

16

1

$12.50

In stock

16

1

$6.17

In stock

16

1

$5.91

In stock

18

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

1
Out of stock

19

2

$1.52

In stock

20

1

$5.20

In stock

21

COVER, CYLINDER HEAD REAR | MODEL X/Y

11172-19F00

1
Out of stock

21

COVER,CYLINDER HEAD RR | MODEL K1/K2

11172-19F20

1
Out of stock

22

.GASKET,CYLINDER HEAD COVER This part replaces 11173-19F00.

11173-19F01

1
Out of stock

23

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

2
Out of stock

24

BOLT (7X31)

09106-07010

1
Out of stock

25

WASHER

09161-11008

2

$4.35

In stock

26

CUSHION,HEAD COVER BOLT

11192-13E00

1
Out of stock

27

BOLT

01550-10807

1

$5.83

In stock
