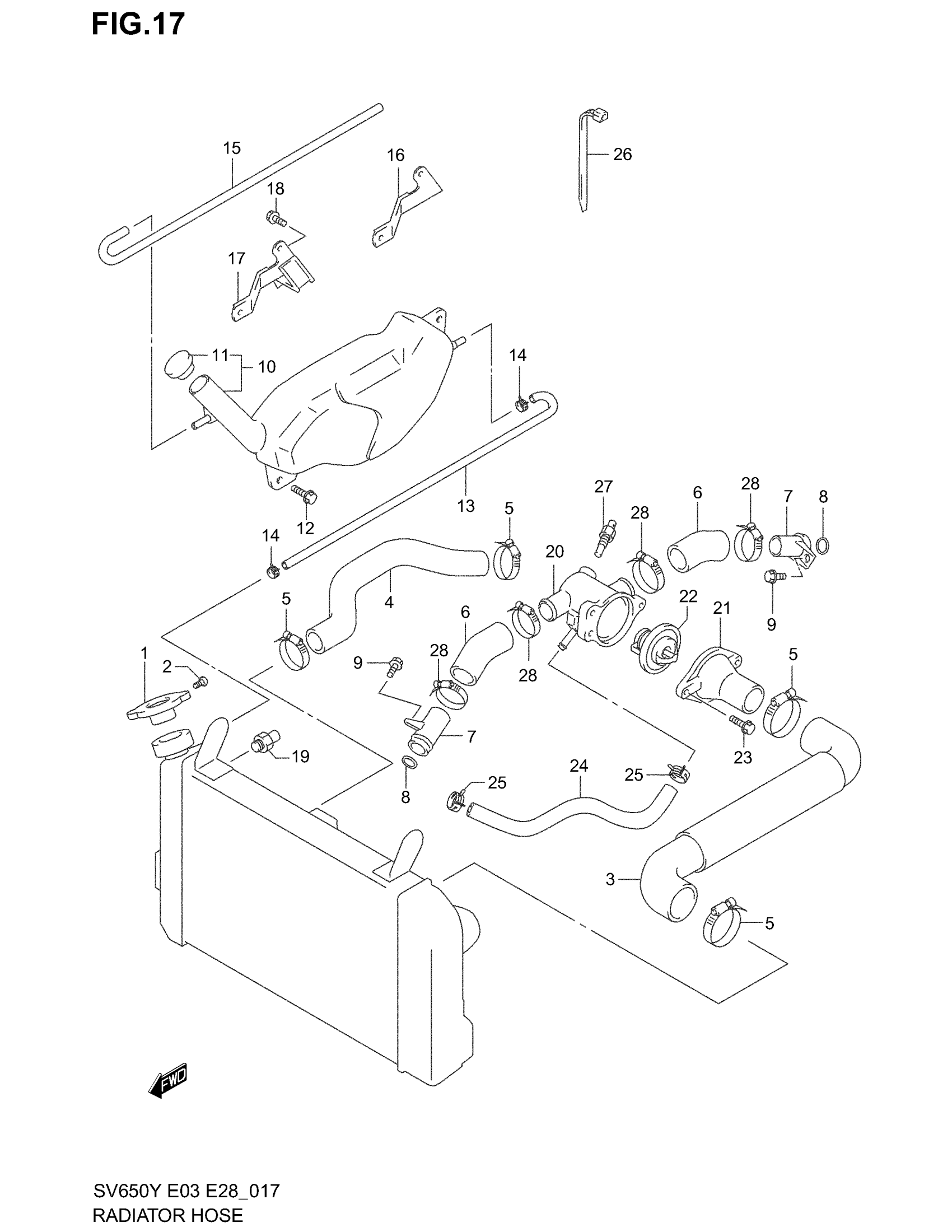

Suzuki SV650 (2002) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR 1.1 | SV650X This part replaces 17730-19D10.

17730-19D11

$38.74

1

CAP, RADIATOR 1.1 | SV650Y/K1/K2

17730-19D11

$38.74

1

CAP, RADIATOR | SV650SX/SY/SK1/SK2 This part replaces 17730-12C20.

17730-08J00

$38.90

2

SCREW,RADIATOR CAP | SV650X/Y/K1/K2

17733-03D10

$2.97

3

HOSE,RDTR INLET This part replaces 17851-19F00.

17851-19F01

$39.50

4

HOSE, RADIATOR OUTLET

17852-19F00

$34.12

5

CLAMP

09402-38511

$10.69

6

HOSE,CONNECTOR INLET

17853-19F00

$13.50

7

UNION, CONNECTOR HOSE This part replaces 17890-02F00.

17890-06G20

$13.59

8

O RING

09280-18009

$5.26

9

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

10

TANK ASSY,RESER | Includes Item(s) 11 This part replaces 17910-19F00.

17910-19F01

$101.52

11

CAP, RESERVOIR TANK

17932-12C00

$4.09

12

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

13

HOSE, RESERVOIR TANK INLET

17981-19F00

$16.58

14

CLIP

09401-08411

$1.77

15

HOSE, RESERVOIR TANK OVERFLOW | L:980

09359-50901-980

$25.08

16

BRACKET, RESERVOIR TANK | SV650X/Y/K1 This part replaces 17920-19F10.

17920-19F11

Unavailable

16

BRACKET, RESERVOIR TANK | SV650K2

17920-19F11

Unavailable

17

BRACKET, RESERVOIR TANK | SV650SX/SY/SK1 This part replaces 17920-19F00.

17920-19F01

Unavailable

17

BRACKET, RESERVOIR TANK | SV650SK2

17920-19F01

Unavailable

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

19

SWITCH, RADIATOR FAN

17680-24A20

$143.23

20

CONNECTOR, THERMOSTAT INLET | MODEL X/Y/K1 This part replaces 17662-19F01.

17662-19F02

Unavailable

20

CONNECTOR, THERMOSTAT INLET | MODEL K2

17662-19F02

Unavailable

21

CAP,THERMOSTAT CONNECTOR This part replaces 17663-02FA0.

17663-17G00

$33.12

22

THERMOSTAT,WTR, This part replaces 17670-50F00.

17670-50F01

$30.87

23

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

24

HOSE, CONNECTOR TO WATER PUMP

17856-19F00

$19.32

25

CLIP This part replaces 09401-12409.

09401-12414

$2.98

26

CLAMP (L:140)

09407-14403

$2.24

27

SWITCH ASSY,WAT | MODEL X/Y/K1 This part replaces 34850-44D20.

34850-44D40

$102.30

27

SWITCH ASSY,WAT | MODEL K2 This part replaces 34850-44D30.

34850-44D40

$102.30

28

CLAMP

09402-28511

$6.21
