Description

Price

1

CHAIN, CAMSHAFT DRIVE This part replaces 12760-19F00.

12760-19F01

$219.87

2

GUIDE,CAM CHAIN This part replaces 12771-19F00.

12771-19F01

$56.25

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-19F00.

12782-19F01

$50.10

4

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

5

TENSIONER, CAM CHAIN

12811-19F00

Unavailable

6

BOLT,CAM CHAIN TENSIONER

12812-35C00

$8.22

7

WASHER

08211-06181

$1.79

8

ADJUSTER ASSY, TENSIONER | Includes Item(s) 9 - 10

12830-19F11

$136.77

9

GASKET, TENSIONER ADJUSTER

12837-33E00

$3.05

10

PLUG, TENSIONER ADJUSTER

12834-33E00

$4.37

11

.GASKET,TENSIONER ADJUSTER

12837-24A10

$2.97

12

BOLT This part replaces 07130-06253.

07130-0625B

$2.80

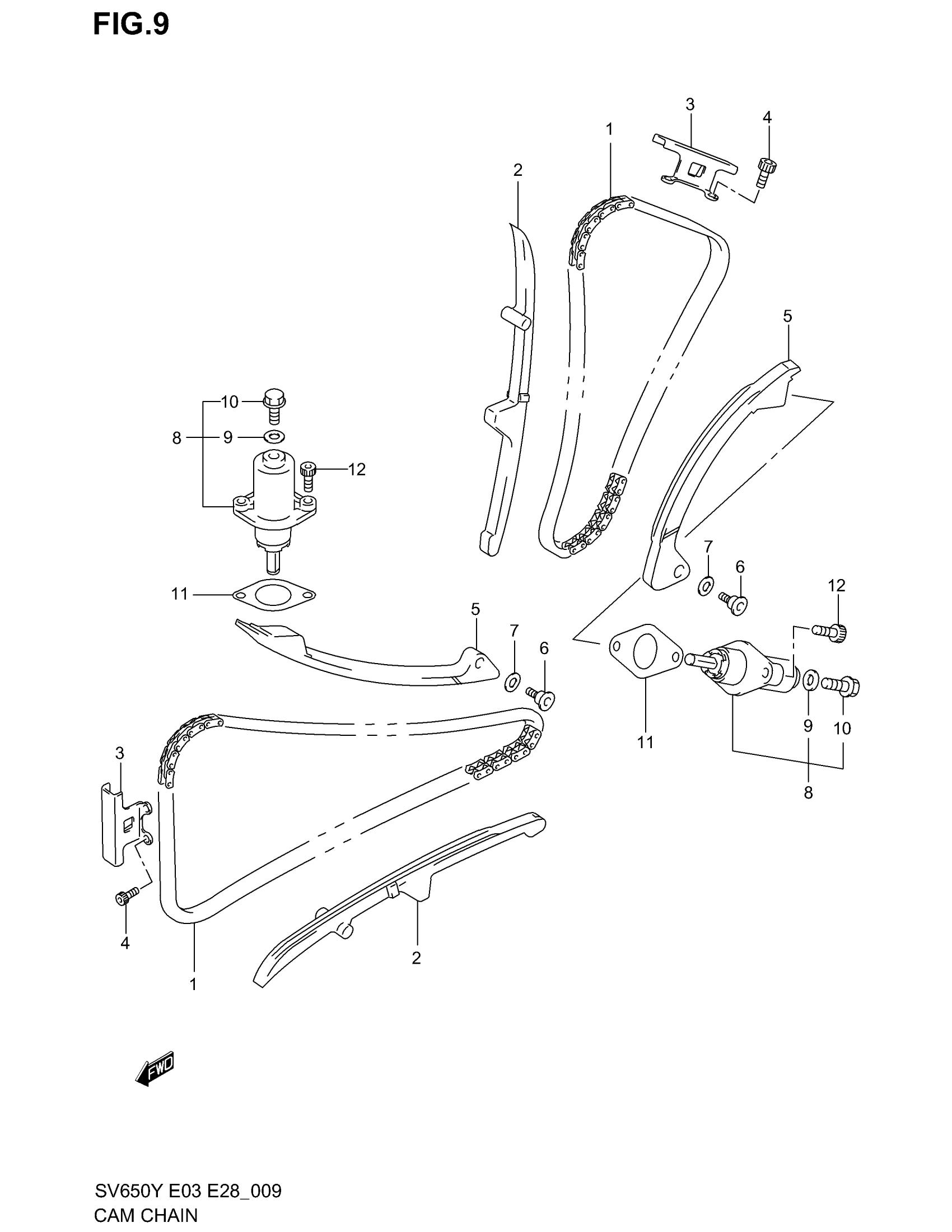

Suzuki SV650 (2002) CAM CHAIN Diagram
