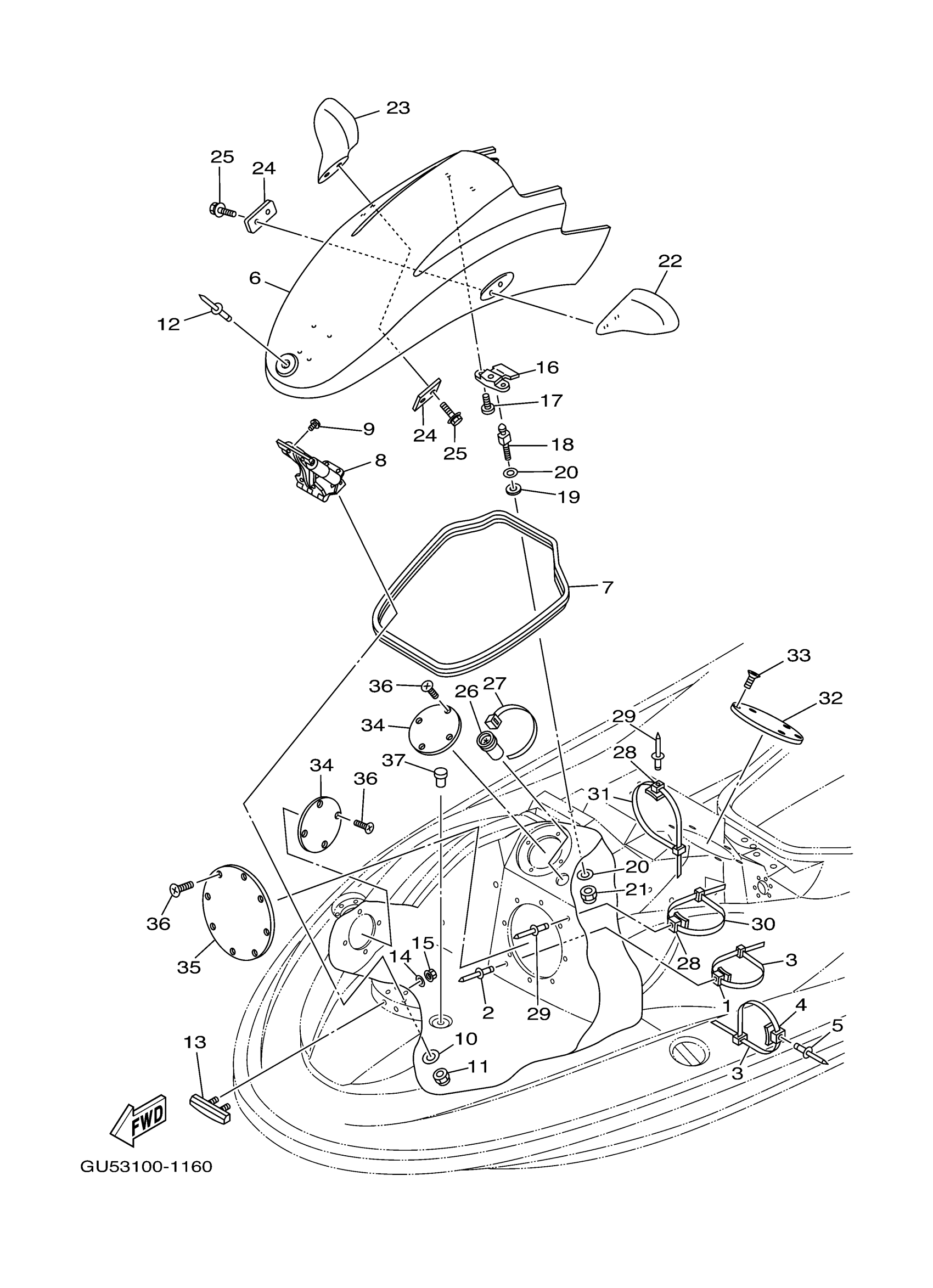

Yamaha SV1200B (SUV1200) GU57 2003 ENGINE HATCH 2 Diagram

#

Description
Price

1

CLAMP COMP (EU0)

90600-91736-00

$6.22

2

RIVET, BLIND

90267-48802-00

$1.98

3

CLAMP

90464-99800-00

Unavailable

4

CLAMP COMP (EU0)

90600-91736-00

$6.22

5

RIVET, BLIND

90267-48802-00

$1.98

6

LID, ENGINE ROOM

F0D-U517B-10-P7

Unavailable

7

PACKING 1

GU5-U2663-00-00

Unavailable

8

HINGE ASSY.

F0D-6515A-04-00

Unavailable

9

BOLT, WITH WASHER

90119-06966-00

Unavailable

10

WASHER, PLATE

90201-06020-00

$5.86

11

NUT, NYLON

9572R-06300-00

$2.80

12

RIVET, BLIND

90267-489U8-00

$0.99

13

PRATE, HINGE LID

F0D-6518E-01-00

Unavailable

14

WASHER

9299R-06200-00

$0.43

15

NUT, NYLON

9572R-06300-00

$2.80

16

LOCK, LID

F0D-6517C-04-00

Unavailable

17

SCREW, BIND(J39)

98980-06014-00

Unavailable

18

PIN

GU5-63774-00-00

$67.99

19

DAMPER 2

F0D-6515E-00-00

$6.36

20

WASHER

9299R-08200-00

Unavailable

21

NUT, NYLON (6J8)

95780-08300-00

$10.55

22

MIRROR LH (BLACK)

F0V-U596B-04-00

$42.28

23

MIRROR RH (BLACK)

F0V-U596C-04-00

$60.59

24

PLATE

F0D-U5646-00-00

Unavailable

25

BOLT, WITH WASHER

90119-08826-00

$4.62

26

GROMMET

GU2-6822E-01-00

$24.98

27

CLAMP

90464-32801-00

$1.23

28

CLAMP COMP (EU0)

90600-91736-00

$6.22

29

RIVET, BLIND

90267-48802-00

$1.98

30

BAND

90601-200U2-00

$3.16

31

CLAMP

90464-32801-00

$1.23

32

COVER, INSPECTION 2

GP1-U7228-00-00

Unavailable

33

YBS81-412 SCREW,O.HEAD TAPPING

97780-40312-00

Unavailable

34

COVER, INSPECTION 1

GP1-U7227-00-00

Unavailable

35

COVER INSPECTION

GU5-U7861-00-00

Unavailable

36

YBS81-412 SCREW,O.HEAD TAPPING

97780-40312-00

Unavailable

37

. PLUG, BLIND

90605-502U1-00

$2.16
