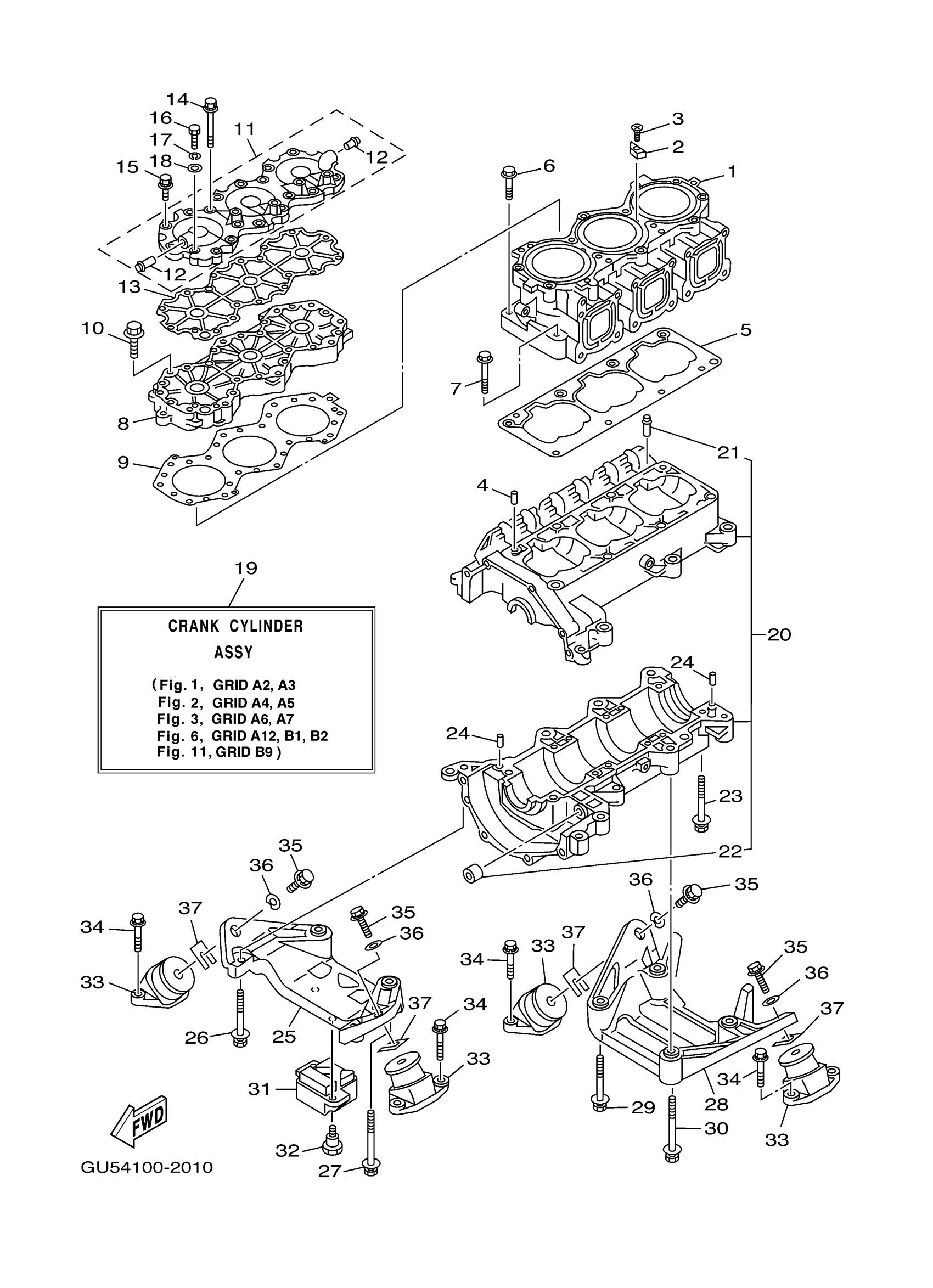

Yamaha SV1200B (SUV1200) GU57 2003 CYLINDER. CRANKCASE Diagram

#

Description
Price

1

CYLINDER 1

65U-11311-00-8S

$1,298.51

2

ANODE

6E5-11325-00-00

$4.52

3

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

4

PIN, DOWEL (614)

93606-12019-00

$3.50

5

GASKET, CYLINDER

63M-11351-01-00

$27.35

6

BOLT, WITH WASHER

90119-10M56-00

$8.97

7

BOLT (6F5)

90119-10M07-00

$4.21

8

HEAD, CYLINDER 1

65U-11111-00-8S

Unavailable

9

GASKET, CYLINDER HEAD 1

65U-11181-01-00

$122.04

10

BOLT, WITH WASHER

90119-08M96-00

$3.03

11

COVER, CYLINDER HEAD 1

63M-11191-00-8S

Unavailable

12

. NIPPLE

6K8-51129-00-00

$9.87

13

GASKET, HEAD COVER 1

63M-11193-01-00

$52.93

14

BOLT, WITH WASHER

90119-08015-00

$2.38

15

BOLT, WITH WASHER

90119-08M97-00

Unavailable

16

BOLT(JF7)

97080-06030-00

Unavailable

17

WASHER, SPRING

92995-06100-00

$2.87

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

CRANK CYLINDER ASSY

65U-W0090-03-8S

Unavailable

20

CRANKCASE ASSY

65U-15100-00-00

$1,077.93

21

NIPPLE

62T-14251-10-00

$4.27

22

. BUSH, SOLID

90380-12M29-00

Unavailable

23

BOLT, WITH WASHER

90119-08M55-00

$3.03

24

PIN, DOWEL (614)

93606-12019-00

$3.50

25

BRACKET, FRONT UPPER 1

63M-21415-03-00

$355.87

26

BOLT, WITH WASHER

90119-10M23-00

$8.97

27

BOLT, WITH WASHER

90119-10M17-00

$8.54

28

BRACKET, REAR UPPER 1

63M-21425-01-00

$304.40

29

BOLT, WITH WASHER

90119-10M23-00

$8.97

30

BOLT, WITH WASHER

90119-10M03-00

$8.81

31

STOPPER, UPPER MOUNT

66G-44532-00-00

Unavailable

32

BOLT

90109-06M98-00

Unavailable

33

MOUNT RUBBER

63M-44517-01-94

$94.10

34

BOLT, WITH WASHER

90119-08907-00

$5.12

35

BOLT, WITH WASHER

90119-08856-00

$5.39

36

WASHER, PLATE

90201-099U3-00

$2.30

37

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

37

SHIM (T=0.3)

EU0-67354-B0-00

$5.12

37

SHIM (T=0.5)

EU0-67354-C0-00

$4.27

37

SHIM (T=1.0)

EU0-67354-D0-00

$3.84

37

SHIM (T=2.0)

EU0-67354-E0-00

$3.84
