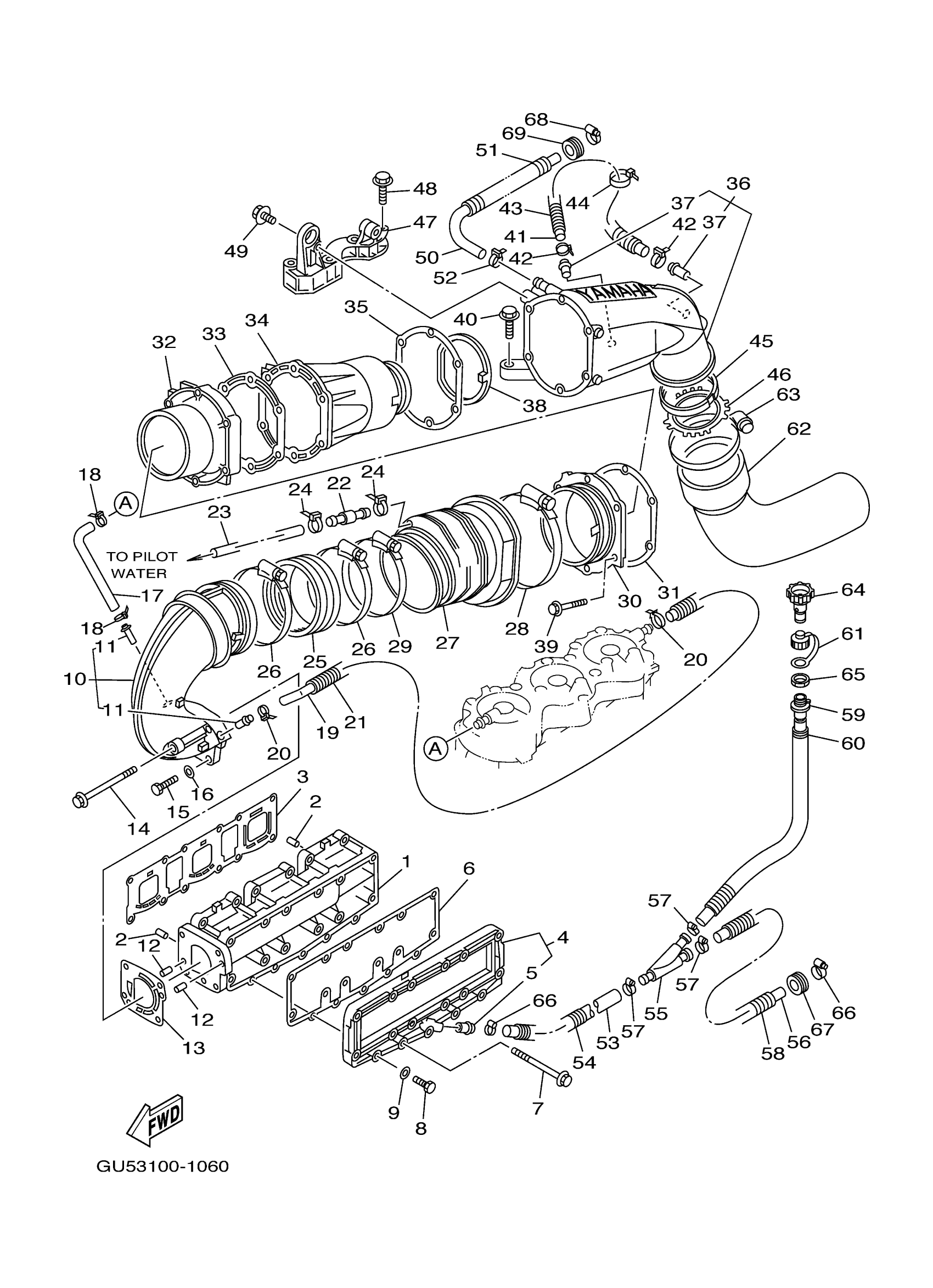

Yamaha SV1200B (SUV1200) GU57 2003 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

63M-14711-00-00

Unavailable

2

PIN, DOWEL(62T)

93605-12M21-00

Unavailable

3

GASKET, EXHAUST PIPE

65U-14613-01-00

$72.71

4

PROTECTOR, MUFFLER 1

63M-14718-00-8S

Unavailable

5

. NIPPLE

63M-51129-00-00

Unavailable

6

GASKET, MUFFLER DAMPER 1

63M-14739-00-00

$60.49

7

BOLT, WITH WASHER

90119-08M98-00

Unavailable

8

BOLT(JF7)

97080-06030-00

$3.42

9

WASHER, PLAIN (646)

92990-06600-00

$1.84

10

RING, JOINT

63M-14712-00-00

Unavailable

11

. NIPPLE

6K8-51129-00-00

$9.62

12

PIN, DOWEL(62T)

93605-12M21-00

Unavailable

13

GASKET, MUFFLER DAMPER 2

63M-14749-01-00

$30.37

14

BOLT, WITH WASHER

90119-08155-00

Unavailable

15

BOLT, HEXAGON

97013-08030-00

$2.98

16

.. WASHER, PLATE

92990-08600-00

$2.17

17

HOSE 1

63M-12576-00-00

Unavailable

18

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

19

HOSE 2

63M-12577-00-00

Unavailable

20

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

21

HOSE

90446-20M53-00

Unavailable

22

PIPE, JOINT 2

6R3-24377-00-00

$6.56

23

HOSE (L1300)

90445-14M22-00

Unavailable

24

CLAMP

90465-10098-00

$1.68

25

JOINT, EXHAUST 2

62T-14625-00-00

$62.23

26

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

27

JOINT, EXHAUST 1

63M-14615-00-00

Unavailable

28

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

29

HOSE CLAMP ASSY(62T)

90450-99M02-00

Unavailable

30

OUTER COVER, EXHAUST

63M-41113-00-8S

Unavailable

31

GASKET, EXHAUST OUTER COVER

63M-41114-00-00

$28.52

32

MUFFLER 2

63M-14721-00-8S

$149.98

33

GASKET, EXHAUST INNER COVER

63M-41122-00-00

$31.11

34

INNER COVER,EXHAUST

63M-41121-00-8S

Unavailable

35

GASKET, EXHAUST OUTER COVER

63M-41114-00-00

$28.52

36

OUTER COVER, EXHAUST

63M-41123-00-8S

Unavailable

37

. NIPPLE

6K8-51129-00-00

$9.62

38

SEAL, RUBBER 1

63M-15761-00-00

$51.50

39

BOLT, FLANGE

90105-08M66-00

Unavailable

40

BOLT, FLANGE

90105-10M60-00

$5.92

41

HOSE (L240)

90445-14M05-00

$12.86

42

CLAMP

90465-10098-00

$1.68

43

HOSE

90446-20M39-00

Unavailable

44

BAND, SWITCH CORD

437-83936-11-00

Unavailable

45

SEAL, EXT 1

63M-41138-00-00

$20.37

46

STOPPER

63M-14680-00-00

$17.03

47

STAY, MUFFLER 1

63M-14771-00-00

Unavailable

48

BOLT, WITH WASHER

90119-10M17-00

$9.08

49

BOLT, FLANGE

90105-10M88-00

$2.95

50

HOSE 3

66G-12578-00-00

Unavailable

51

HOSE

90446-30ME9-00

Unavailable

52

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

53

HOSE (L350)

90445-18M13-00

Unavailable

54

HOSE

90446-24M83-00

Unavailable

55

JOINT, HOSE 1

63M-12581-00-00

Unavailable

56

HOSE

90445-18M16-00

Unavailable

57

HOSE CLAMP ASSY

90450-18M09-00

$9.82

58

HOSE (L420)

90446-24M89-00

$9.08

59

JOINT ASSY

64T-12580-00-00

$113.62

60

HOSE (L420)

90446-24M89-00

$9.08

61

CAP,1

682-84385-01-00

$9.08

62

PIPE, OUTLET

66G-14752-00-00

Unavailable

63

HOSE CLAMP ASSY(62T)

90450-99M02-00

Unavailable

64

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

65

NUT

EU0-61652-00-00

$11.48

66

BAND, HOSE 18

90601-118UF-00

$2.07

67

GROMMET

90480-329U2-00

Unavailable

68

BAND, HOSE 18

90601-118UF-00

$2.07

69

GROMMET

90480-329U2-00

Unavailable
