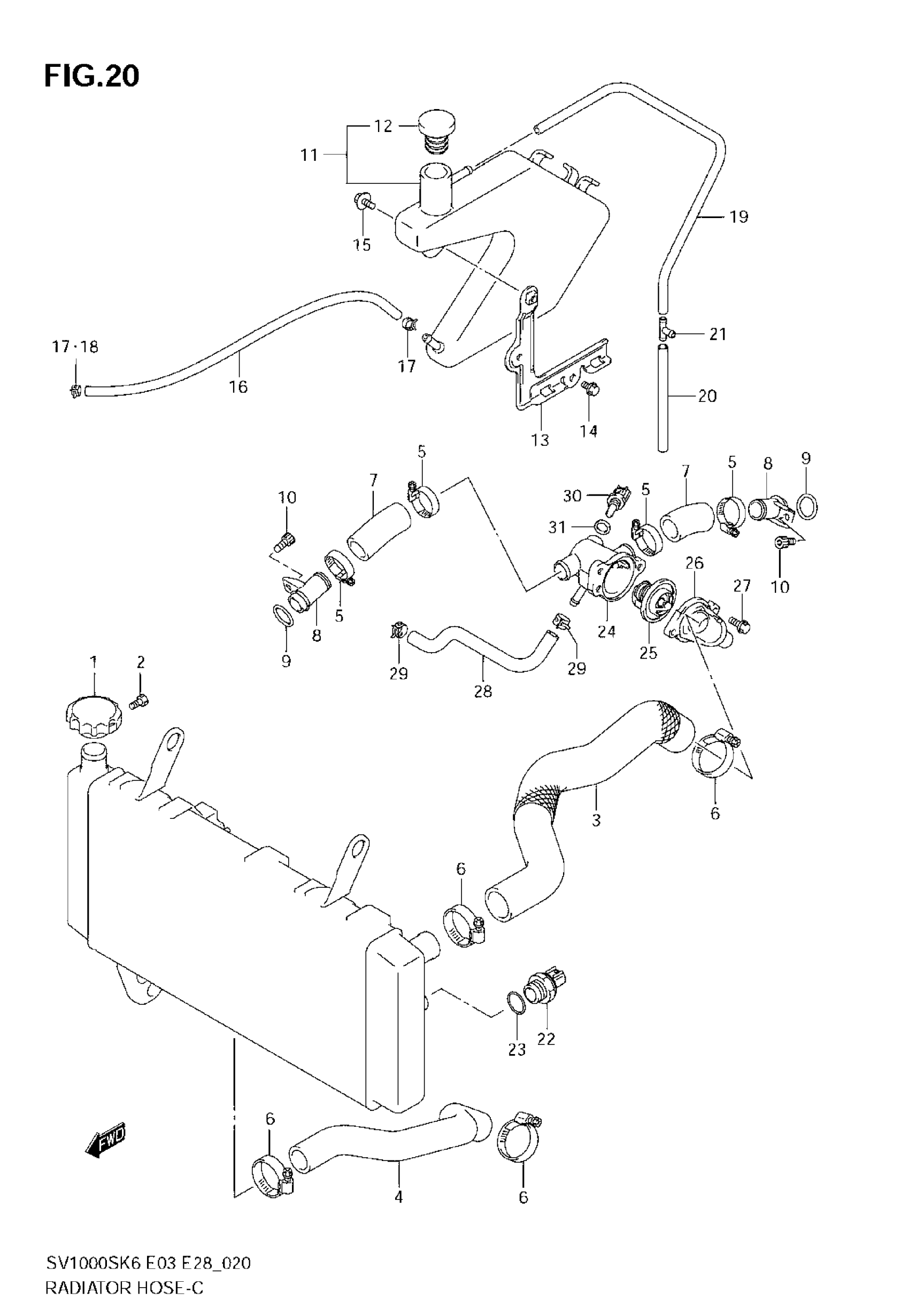

Find the part on the Radiator Hose diagram for your 2007 Suzuki SV1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki SV1000 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR | SV1000S

17730-14G00

1
Out of stock

1

CAP, RADIATOR | SV1000 NOT FOR US MARKET

17730-08D10

1
Out of stock

2

1

$2.97

In stock

3

HOSE, RADIATOR INLET

17851-16G00

1
Out of stock

4

HOSE, RADIATOR OUTLET

17852-16G00

1
Out of stock

5

CLAMP

09402-28511

4
Out of stock

6

CLAMP

09402-38511

4

$11.46

In stock

7

HOSE, CONNECTOR INLET

17853-02F00

2
Out of stock

8

UNION, CONNECTOR HOSE

17890-06G20

2
Out of stock

9

O RING

09280-18009

2
Out of stock

10

BOLT This part replaces 07130-06123.

07130-0612A

2
Out of stock

11

TANK ASSY, RESERVOIR | Includes Item(s) 12

17910-16G00

1
Out of stock

12

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

13

BRACKET, RESERVOIR TANK

17920-16G00

1
Out of stock

14

BOLT This part replaces 01550-06103.

01550-0610A

2
Out of stock

15

BOLT (6X12) This part replaces 09111-06063.

09111-06085

1
Out of stock

16

HOSE, RESERVOIR TANK INLET | SV1000S

17981-16G00

1
Out of stock

16

HOSE, RESERVOIR TANK INLET | SV1000 NOT FOR US MARKET L:600!440

09352-50901-600

1
Out of stock

17

CLIP | SV1000S

09401-08411

1
Out of stock

17

CLIP | SV1000 NOT FOR US MARKET

09401-08411

2
Out of stock

18

CLIP | SV1000S

09401-10411

1
Out of stock

19

HOSE, RESERVOIR TANK OVERFLOW, NO.1 | L:600!190

09352-50901-600

1
Out of stock

20

HOSE(7X10.2X600 | L:600!450 This part replaces 09352-70103-600.

09352-70104-600

1
Out of stock

21

JOINT

09367-08005

1
Out of stock

22

SWITCH,RDTR FAN | Includes Item(s) 23 This part replaces 17680-33E00.

17680-33E01

1
Out of stock

23

O RING

17689-50F00

1
Out of stock

24

CONNECTOR,THERMOSTAT INLET

17662-02F11

1
Out of stock

25

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

1
Out of stock

26

CAP,THERMOSTAT CONNECTOR

17663-42E00

1
Out of stock

27

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

28

HOSE, CONNECTOR TO WATER PUMP

17856-16G10

1
Out of stock

29

CLIP This part replaces 09401-12409.

09401-12414

2
Out of stock

30

SENSOR, WATER TEMP

13650-10G00

1
Out of stock

31

GASKET, TEMP SENSOR

09168-12017

1
Out of stock
