2007 Suzuki SV1000 Front Cylinder Head Diagram

← All diagrams

Find the part on the Front Cylinder Head diagram for your 2007 Suzuki SV1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

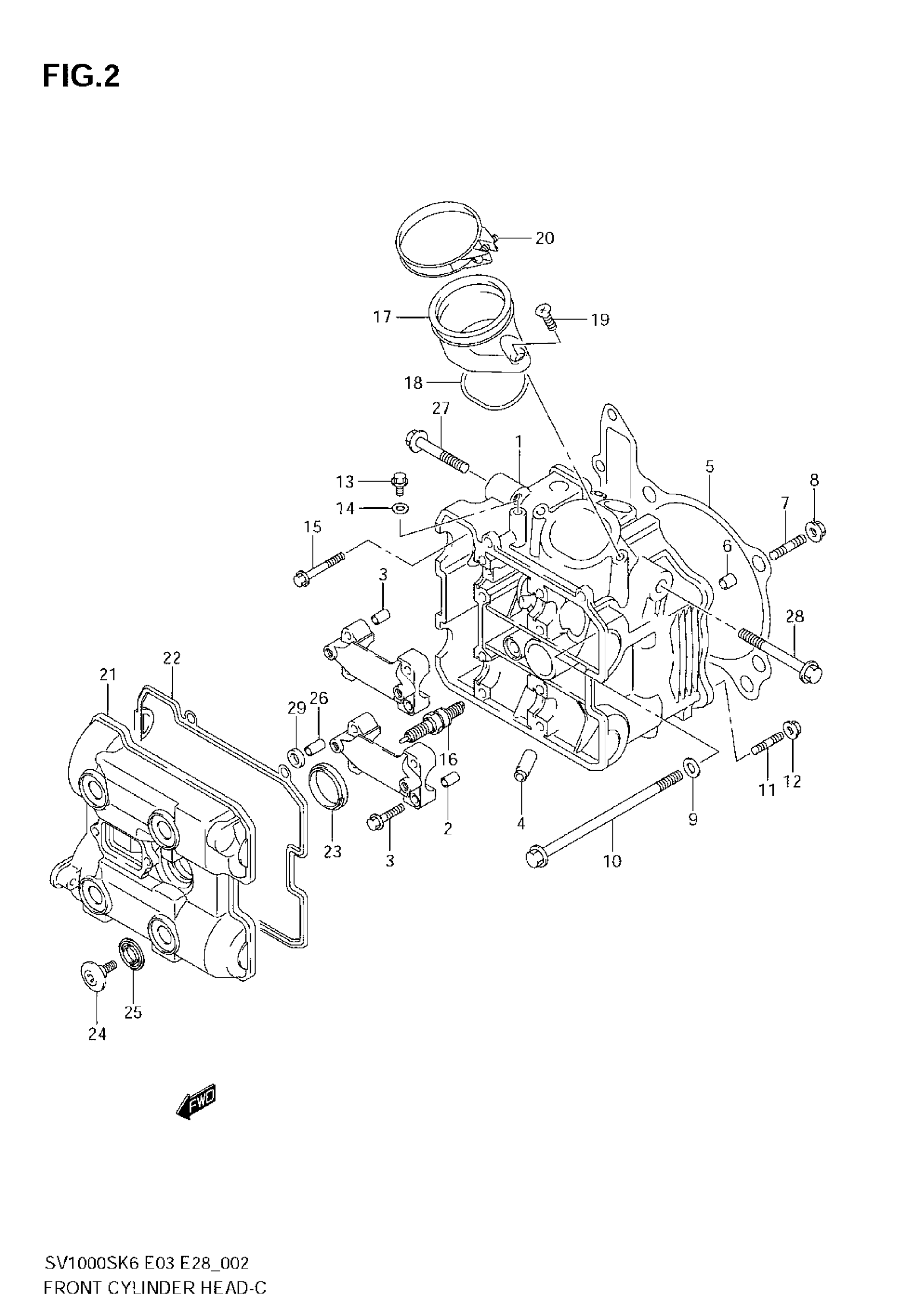

2007 Suzuki SV1000 Front Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER FRONT | Includes Item(s) 2 - 3

11100-16G00

1
Out of stock

2

PIN

09206-08001

4
Out of stock

3

BOLT (6X39)

09103-06026

8
Out of stock

4

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

4
Out of stock

5

GASKET, CYLINDER HEAD

11141-02F01

1
Out of stock

6

PIN

04211-13189

2
Out of stock

7

STUD BOLT (8X35)

09108-08143

1
Out of stock

8

NUT This part replaces 08316-10083.

08316-1008B

1
Out of stock

9

WASHER

09160-10082

4
Out of stock

10

BOLT (10X175)

09103-10276

4
Out of stock

11

STUD BOLT (6X30)

09108-06096

2
Out of stock

12

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

13

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

1
Out of stock

14

GASKET

09168-06023

1
Out of stock

15

BOLT (6X70)

09103-06103

2
Out of stock

16

1

$10.51

In stock

16

1

$14.37

In stock

16

1

$11.47

In stock

16

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

1
Out of stock

16

SPARK PLUG (NGK,CR10EK) | OPT

09482-00462

1
Out of stock

16

SPARK PLUG (DENSO,U31ETR) | OPT

09482-00463

1
Out of stock

17

PIPE ASSY,INTAK | Includes Item(s) 18 This part replaces 13101-16G10.

13101-16G11

1
Out of stock

18

O RING

09280-55005

1
Out of stock

19

SCREW This part replaces 02122-06163.

02122-0616A

2
Out of stock

20

CLAMP This part replaces 09402-78208.

09402-78207

1
Out of stock

21

COVER, CYLINDER HEAD

11171-16G00

1
Out of stock

22

GASKET, CYLINDER HEAD COVER

11173-02F00

1
Out of stock

23

GASKET

11178-17E00

1
Out of stock

24

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

4
Out of stock

25

WASHER

09161-11008

4
Out of stock

26

PIN

09206-08007

1
Out of stock

27

BOLT, RH

01550-10657

1

$5.83

In stock

28

BOLT, LH

01550-10857

1

$5.73

In stock

29

GASKET, 2ND AIR PASSAGE

11182-35F00

1
Out of stock
